Global Push Back Pallet Racking System for Warehouse

Prod Model:	HBE-SR-12
Surface:	Powder Coating
Color:	Pantone Color Available
Finish:	Powder Coating
Design:	Push Back Pallet Rack
Usageq:	Pallet Rack
Style:	Powder Coating
Size Options:	Pantone Color Available
Surface Treatment:	Powder Coating
Sizes:	Customized
Finisha:	Can Be as Request
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	>15m
Weight:	500kg
Closed:	Open
Development:	New Type
Serviceability:	Common Use

Product Description

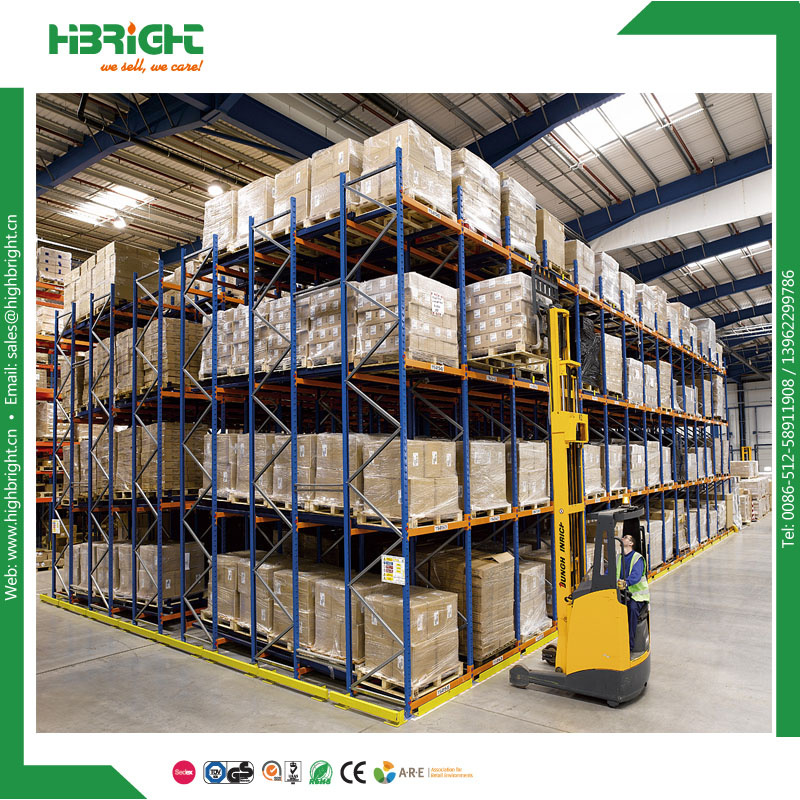

Global Push Back Pallet Racking System for warehouse

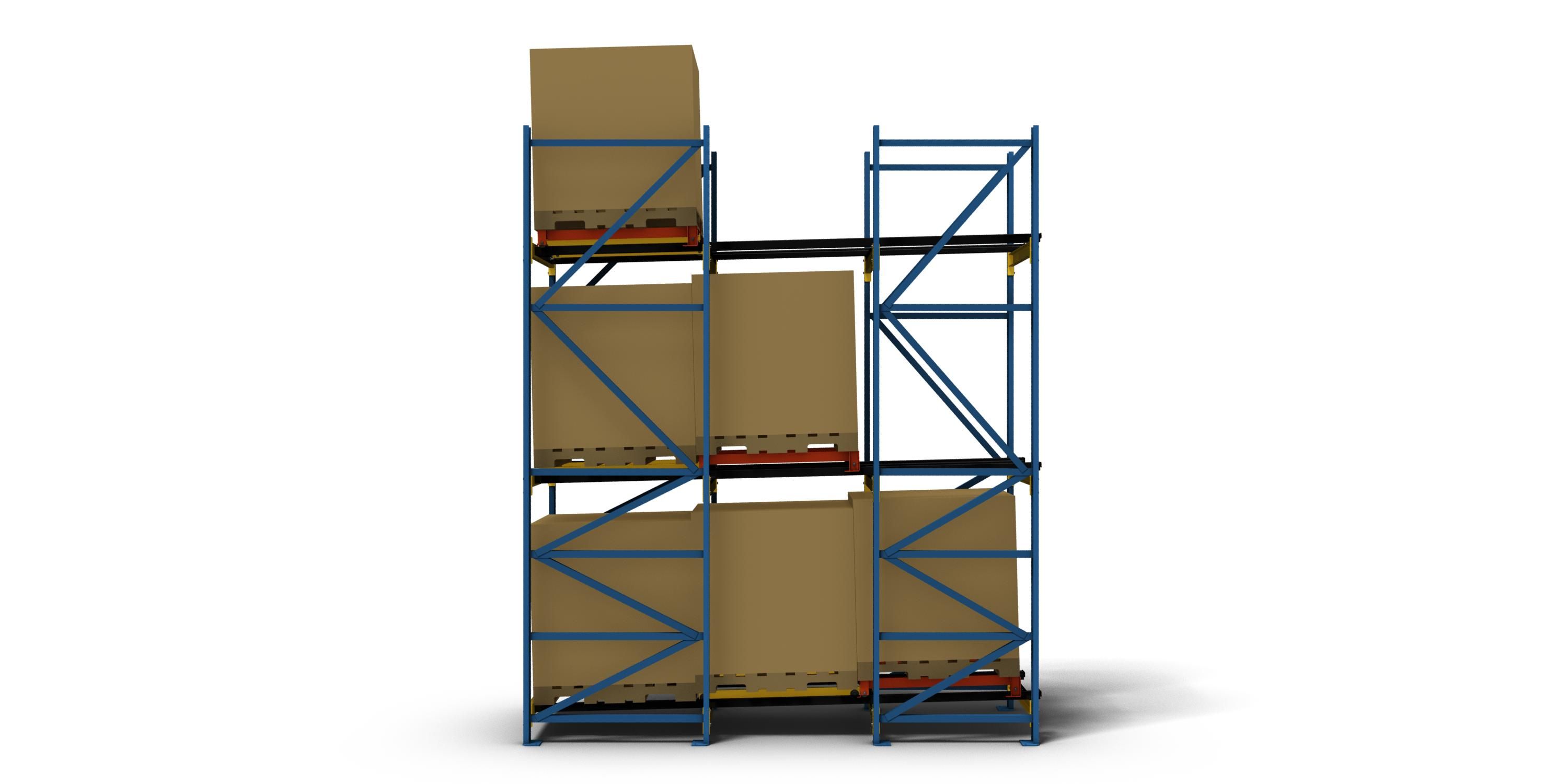

Push Back pallet racking is a system that combines the benefits of drive-in racking with pallet live storage. Using Push Back you can access up to four pallets deep from one face. Ideally suited to order picking operations it enables areas of rack backing onto a wall to be fully utilised. The Push Back frames support the pallet around its perimeter so it moves easily, either when being pushed back or once the front pallet is removed. Gravity does the rest, remove the front pallet and the rear pallet rolls forward slowly and safely.

Specifications
Heavy Duty Shelving Racking System Supplier
1. Material: Cold-rolled Steel
2. Finish: Electrostatic Spray
3. Capacity: 1000-5000kg
Pallets can be located, accessed and moved individually.
1. Product Name: Heavy Duty Shelving Racking System Supplier
2. Item Code: HBE-SR-10
3. Material: Cold-rolled Steel
4. Surface Treatment: Electrostatic Spray
5. Feature: Anti-rust, Corrosion-protection
6. Various sizes and color are available
7. The reliable and efficient service before and after deal
8. Pallets can be located, accessed and moved individually

Length	1500	1800	2000	2300	2500	2700	3000	3300
Beam Specification	Load/kg
80×50	3000	2300	1800	1500	1200	1000	800	700
100×50	4000	4000	3000	2400	2000	1750	1400	1100
120×50	4000	4000	4000	3500	3000	2500	2000	1800
140×50	4000	4000	4000	4000	4000	3800	3000	2500

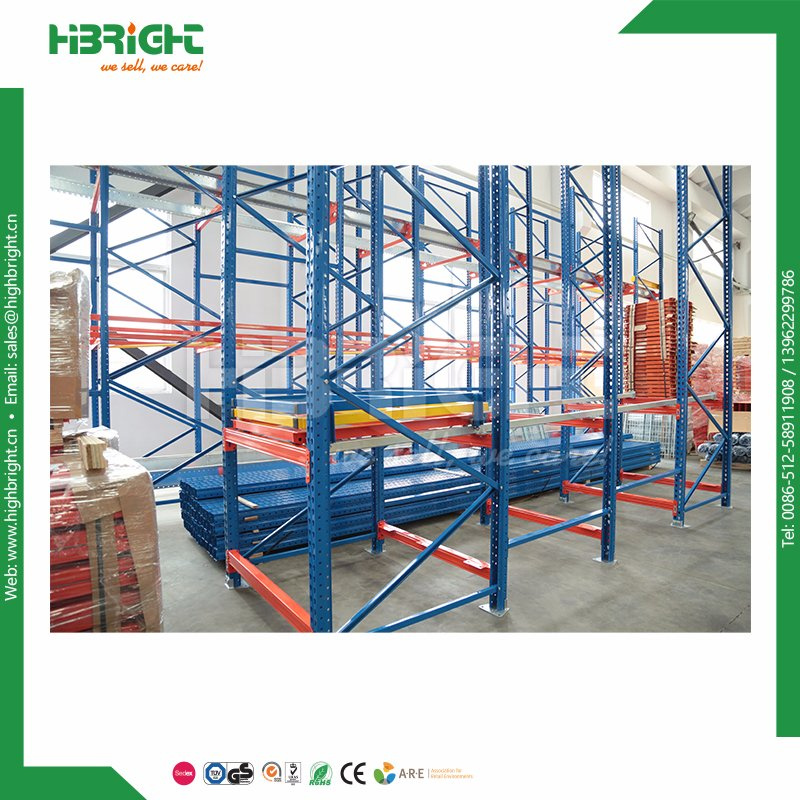

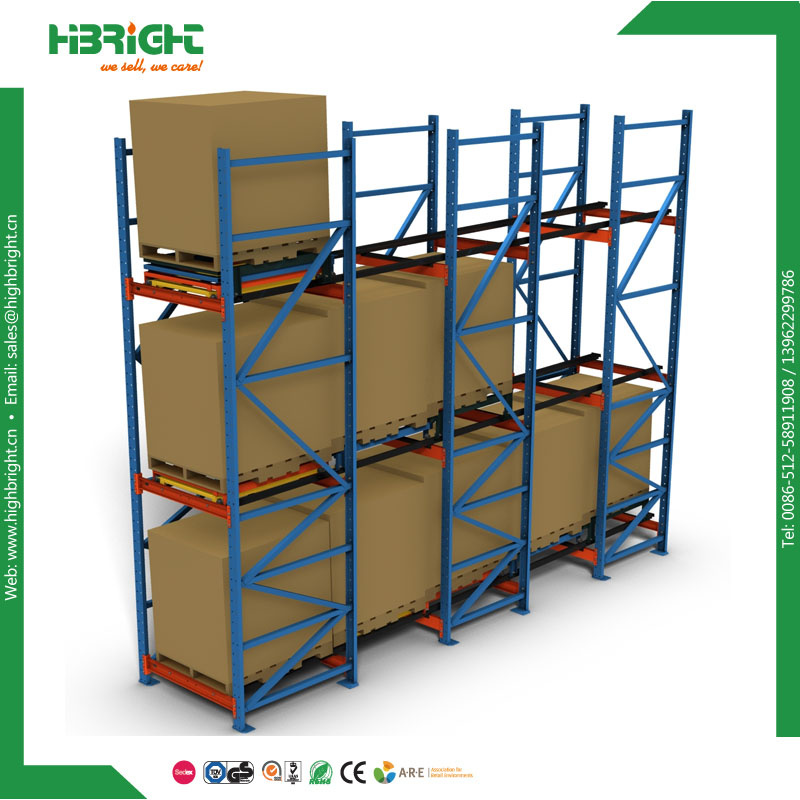

Pushback Rack works by placing pallet loads on a series of nesting carts fed forward by gravity on rigid structural steel rails. As a pallet is loaded from the front, it pushes the pallet behind it back one position.
When unloading, the front pallet is removed and the rear pallets automatically come forward to the front picking position. This allows for easily accessible Last-In-First-Out (LIFO) inventory management.
Push Back offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below.
