Price: | US $ 5/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T |
Prod Model: | IRA |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Serviceability: | Common Use |
Development: | Conventional |
Closed: | Open |
Mobility: | Adjustable |
Structure: | Rack |
Material: | Steel |
Weight: | 1000-4000 Kgs Udl/Level |
Height: | 1-12m |
Features: |

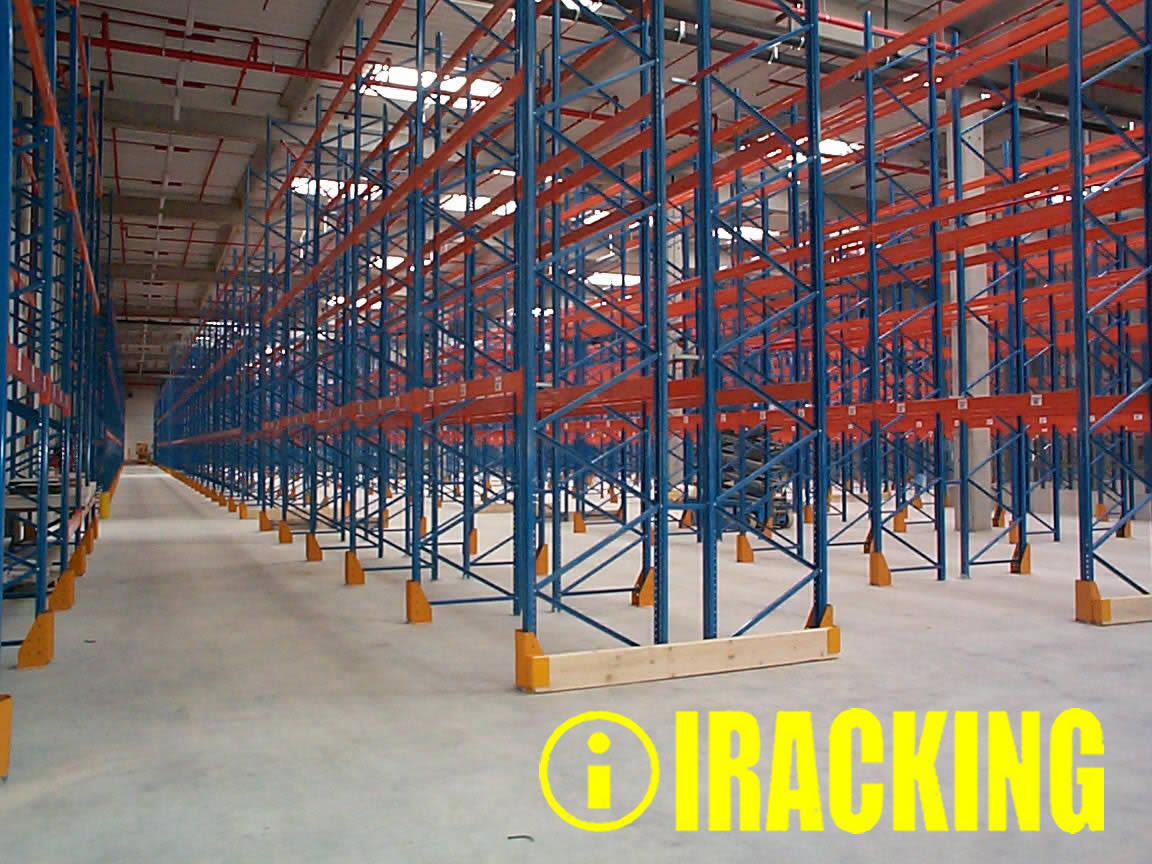

1. Pallets can be located, accessed and moved individually. 2. Rapid handling of almost all types of palletised goods. 3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5. Strength and rigidity prevents compression damage to goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
Load Capacity & Dimension: |
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Special sizes also avaiable to specific storage needs. |
Main Parts Specs: |

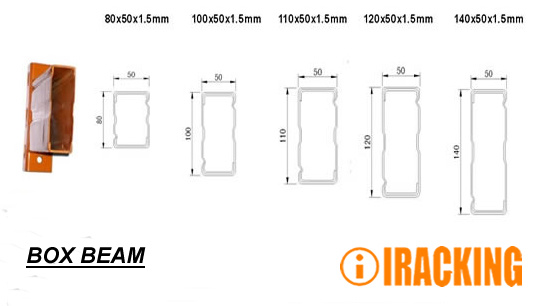

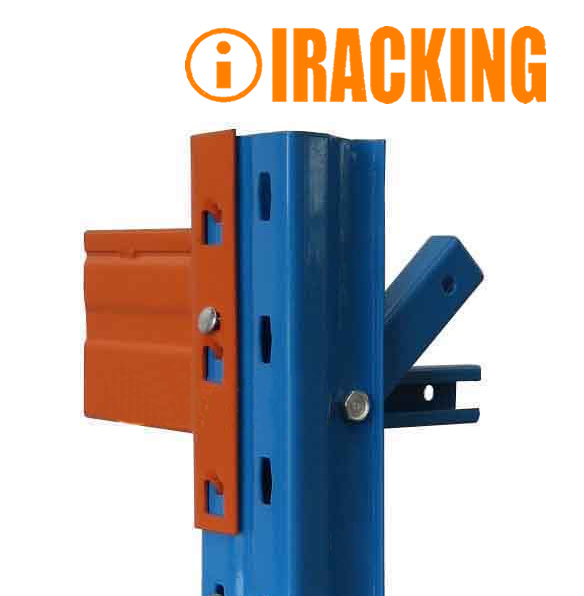

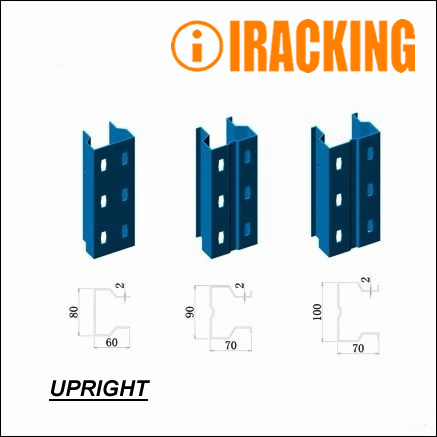

1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
Material: | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China. |
Finish: | High-quality Powder Coating Finish. |
Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
CE certified. |
IRACKING® Heavy Duty Pallet Rack, CE certified, is designed and manufacturered to European Racking Code FEM 10.2.02, the Australian Standard - Steel Storage Racking AS4084 1993, and American racking standards. |
