Heavy Duty Shuttle Racking Pallet Rack
| Price: | US $ 1.15/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | Drive in Racks |
|---|---|
| Color: | Blue/as Your Requirement |
| Size: | as Request |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | According to You Request |
| Weight: | 500-3000kgs/Pallet |
Product Description

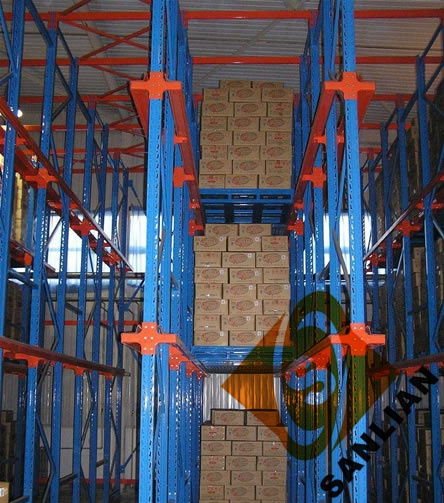

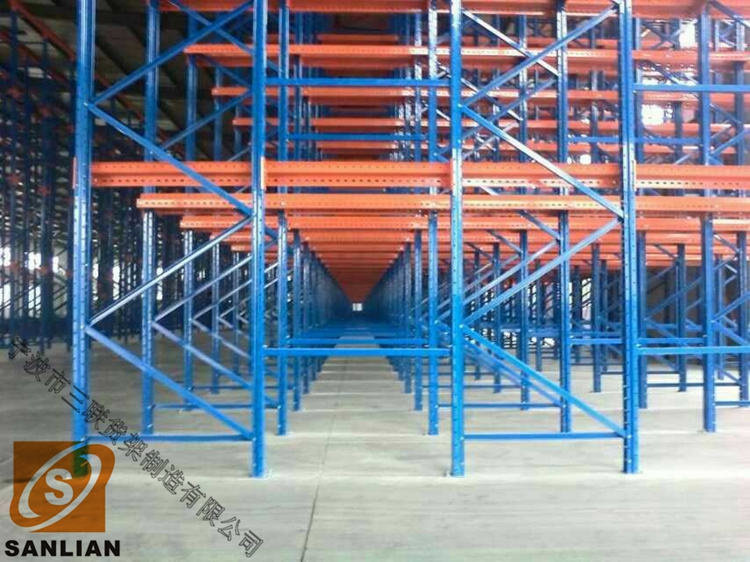

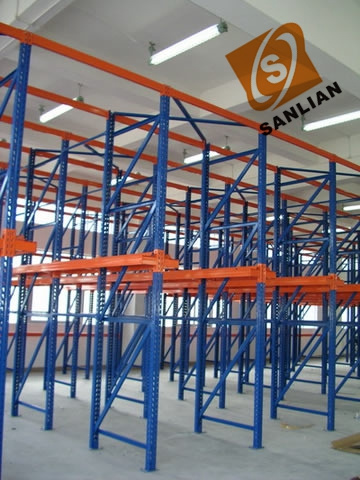

Heavy Duty Shuttle Racking Pallet Rack
It can reduce overall square footage requirements by 35 percent or more compared to a standard Selective Rack configuration.
Drive-In/Drive-Thru is a high density storage solution ideal for homogeneous, low-rotation products with a large number of pallets.
Advantage:
1, Suitable for storing small variety but large quantity goods;
2, Highest space utilization for warehouse storage among standard racks;
3, Each aisle has several layers of pallet support rail which pallets can be stored on it well one by one;
4, Convenient for forklift operation along the aisle;
5, Top and back bracings are fixed to the rack that makes it more stable and safer;
6, First layer pallets can be stored on the floor;
7, Surface treatment: powder coating, galvanized;
8, Widely used in food industry, especially for cold store.
Specification of drive through rack:
Upright | 70*90*1.8/2.0,70*100*1.8/2.0 |
Arm | double arm, single arm |
Top bar | 24*36*1.5C |
Diagonal bar | 24*36*1.5C |
Pallet size | 800*1200,1000*1200,1000*1000,800*1000,and so on. |
Pallet load capacity | 500-2000kg |
Pallet in deep | 5-7 pallet |
Pallet In height | 4-6 pallet |
Material | cold rolled Q235 steel |
About Us

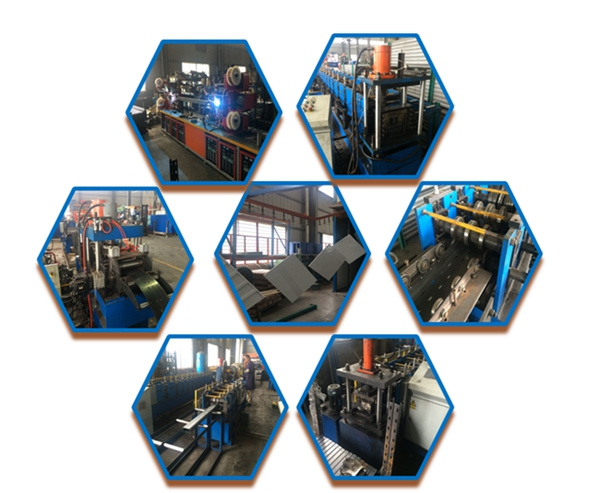

Yuyao Sanlian Racking Manufacturing Co., Ltd. is a professional storage shelf equipment manufacturer engaged in the planning, design, production, sales, installation and service. Our company has advanced cold-formed steel rolling production lines, automatic punching production lines, electrostatic power coating line, shear folding, welding sheet metal processing equipment. Shelf technology is imported from abroad, has feature of good assembly, large carrying capacity and strong stability. Use high quality cold and hot steel as shelf material. Production and testing is strictly according to the relevant national and enterprise standards. Set up a complete set of product quality assurance system and installation and after-sales service team.
PACKAGE &SHIPPING
FQA:
1.Are you a trading company or factory
We are factory .
2.How is the goods being packed?
Goods can be wrapped by stretch film and carton.
3.What is the payment terms available to you?
We accept TT or L/C at sight, DP etc.
4.What kind of surface treatment do you provide for your goods?
Powder coating . Can also make it according to our customer's requirement.
5.What is the loading capacity?
500-5000kgs
6.What is the MOQ I can order?
10tons
7.What is your average production delivery time?
Within 15 days
8. I'm not sure about your product, can you send me sample for reference?
Our standard product samples are free of charge except for the freight fee.
For customized products, sample fee as well as the freight fee are charged.
9. I like your design, but couldnt find the right model from the products catalog, is custom size available?
Yes, we are good at producing products according to your design.
10. What should I do if the products have any quality problems?
Just contact us via our phone or email. We will handle it asap payment terms available to you?
