Price: | US $ 82.7-84.2/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 75/Piece |
Pay Type: | L/C,T/T |
Prod Model: | M-2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Company Type: | China Professional Manufacturer |
Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
Product Warranty: | 1 Year |
Load Capacity Per Layer: | 1500kg |
Shelf Height: | <5m |
Goods Characteristics: | Refrigerated Warehouse |
Function: | Storage Type Stereoscopic Warehouse |
Operation: | Automatic Addressing Artificial Loading |
Material: | Steel |
Serviceability: | Common Use |
Type: | Multi-Layer Warehouse |
Height: | <5m |
Similar design, defferent sizes | |||||
Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
LxWxH(mm) | kg | sets | |||
M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
M1-Post | 1200x60x2.5 | Hot dip zinc | 880 | ||

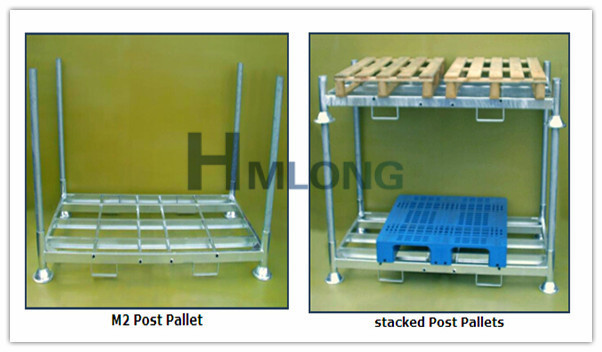

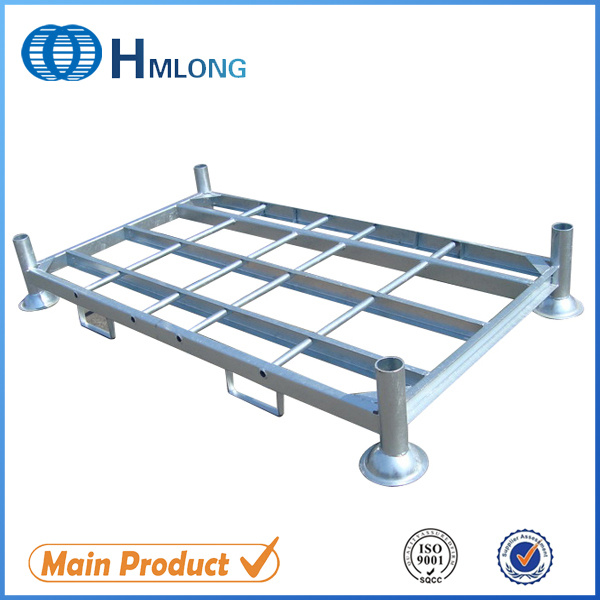

M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
M5-Post | 2000x60x2.5 | zinc | 1020 | ||
M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
Material | Mild steel Q235 | ||||
Application area | Warehouse, logistic, recycling, etc. | ||||
Remark | Costomized or OEM support | ||||
Key features | 1.Ideal solution for palletized cargo. 2.eliminates the need for wooden pallets for loose cargo. 3.customized to suit your products and storage environment. 4.assembled and disassembled within seconds. 5.When not in use can be stowed away in less than 10% of space 6.No maintenance required | ||||
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with
standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
---Yes, we can make the best suitable design for you but do need to know the details, such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift
handling while stacking/unstacking B) Overloading is prohibited C) Environment request
indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
