Heavy Duty Steel Warehouse Storage Pallet Stacking Rack
| Price: | US $ 40-60/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | HML-NR1302 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Company Type: | China Professional Manufacturer |
| Product Warranty: | 1 Year |
| Exterior Dimension: | 1300X1200X1200 L*W*H mm |
| Interior Dimension: | 1200X1150X1000 L*W*H mm |
| Loading Capacity: | 1000kg |
| Finish: | Powder Coating |
| Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
| Remark: | Customized and OEM Support |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1000kg |
Product Description

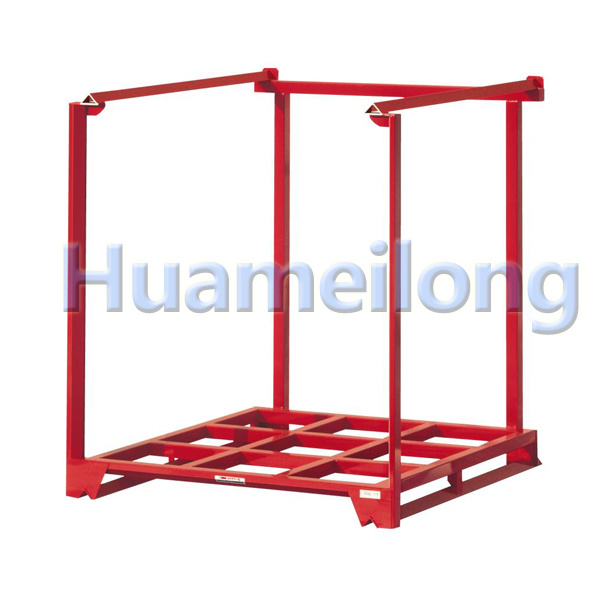

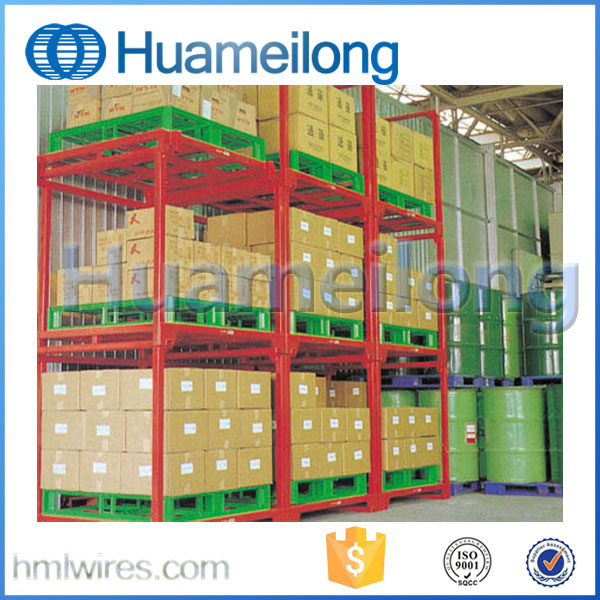

Heavy duty steel warehouse storage pallet stacking rack
Specification of stacking rack
| Same design, defferent sizes | |||||
| Model No. | Exterior Dimension | Interior Dimension | Loading capacity | Stackability | Total container |
| LxWxH(mm) | LxWxH(mm) | kg | |||
| HML-NR1302 | 1300x1200x1200 | 1200x1150x1000 | 1000 | 4 | 1x40'HQ |
| HML-NR1304 | 1300x1200x1400 | 1200x1150x1200 | 1000 | 4 | |
| HML-NR1402 | 1400x1200x1200 | 1300x1150x1000 | 1000 | 4 | 1x40'HQ |
| HML-NR1404 | 1400x1200x1400 | 1300x1150x1200 | 1000 | 4 | |
| HML-NR1502 | 1500x1200x1200 | 1400x1150x1000 | 1000 | 4 | 1x40'HQ |
| HML-NR1504 | 1500x1200x1400 | 1400x1150x1200 | 1000 | 4 | |
| HML-NR1602 | 1600x1200x1200 | 1500x1150x1000 | 1000 | 4 | 1x40'HQ |
| HML-NR1604 | 1600x1200x1400 | 1500x1150x1200 | 1000 | 4 | |
| Material | Mild steel Q235 | ||||
| Finish | Powder coating | ||||
| Available design | Detachable/undetachable | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
| Key features | 1.Ideal solution for palletized cargo. 2.eliminates the need for wooden pallets for loose cargo. 3.customized to suit your products and storage environment. 4.assembled and disassembled within seconds. 5.When not in use can be stowed away in less than 10% of space 6.No maintenance required | ||||
Company Information
Huameilong was established in 1993, an industry and trade integrated enterprise in China. With our
products of wire mesh container, wire mesh decking, roll cage, post pallet, tire rack, etc., a best solution
can be provided for your material handling industry. Quality products, advanced equipment, customized
design, and OEM support have earned us a great reputation among our customers.
FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with
standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
--A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy
duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls
understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift
handling while stacking/unstacking B) Overloading is prohibited C) Environment request
indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
Contact Person:
Mary Kong
Dalian Huameilong Metal Products Co.,Ltd.
Website: www.hmlwires.com
Tel: +86 411-83615995
Dalian Huameilong Metal Product Co. Ltd, one of the most professional manufactures in North China founded in 1993, which specializing in transportation security facilities, material handling equipment and welded wire mesh products.

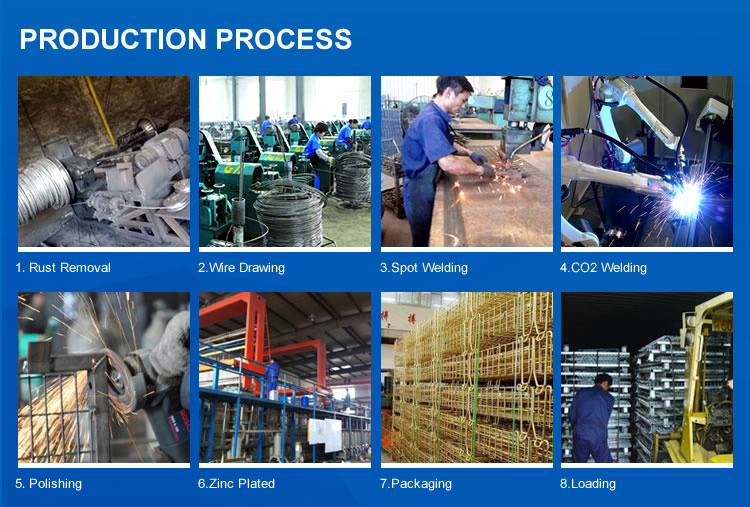

We can supply nearly 1.000 tons of mesh products each month based on the modern 15.000squaremeter office and factory premises. The company has sheet metal and tube bending, cutting, punching, as well as electronically controlled multiple projection welding machines to manufacture components and other finished products. With our own powder coating system, we are capable of meeting almost every decorative and functional powder coating need. All production and test personnel have received have received the strict training. Only the best quality product could pass our stringent grading process.
