Heavy Duty Storage Durable Pallet Rack Approved by As4084 Standard
| Price: | US $ 600-1300/Ton |
|---|---|
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
| Certification: | ISO9001&As4084 |
|---|---|
| Material Specification: | Q235/Q345 Cold Rolled Steel |
| Warranty Time: | 10 Years |
| Surface Treatment: | Powder Coating or Galvanizing |
| Color: | Customerized(Ral Colors) |
| Size: | Depend on The Size of Pallet |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | up to 24000kgs |
| Height: | up to 11800mm |
Product Description

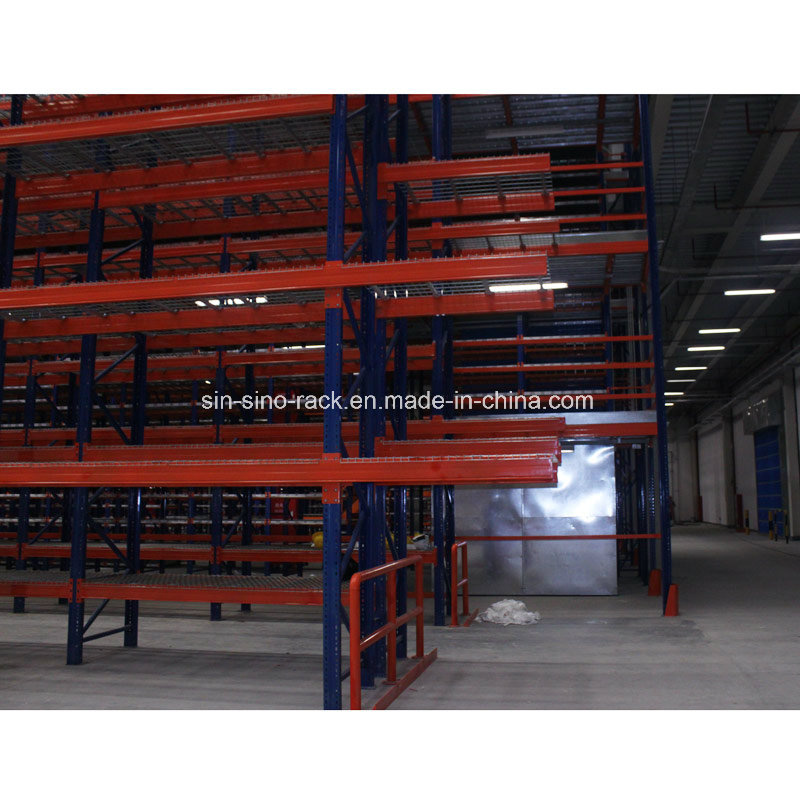

Durable Storage Pallet Rack Under High Loading Capacity
Sin-Sino Storage Pallet Rack is designed and manufacturered to Australian Standard -Steel Storage Racking AS4084-2012.
Storage Pallet Rack is one of the most widely used pallet racking systems. Designed for strength, durability and ease of assembly, the system comprises a comprehensive choice of frames and pallet support beams which are precisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectively. Pallet Racking is the most widely used storage system which suitable for most of cargo and lots of different industries, such as electronic, telecommunication, computer, pharmacy, furniture, garment, super market.
For quick quotation, it will be better if following info could be provided.
Drawing of racking (if available)Drawing of facility
Dimension of your warehouse (Length * Width * Height/mm)
Pallet Size (W*D*H) & loading weight
How many layers and bays
We can offer CAD design service for customer for free charge and give customer technical support.
Free samples can be supplied, within 2 weeks after freight received.
Specifications of Upright & Beam:
| Material | High quality rolled steel |
| Surface treatment | Powder coating/Galvanizing |
| Color | Selective |
| Loading capacity | 1000-5000kgs |
| layers | 2-6,as your concrete requirement |
| Size of Upright (Height:5000-11800mm)Q235/345D | ||||
| Specification | Width | Depth | Thickness | Unit-mm |
| SSN75*63 | 75 | 63 | 1.5/1.8/2.0 | mm |
| SSN75*68 | 75 | 68 | 1.5/1.8/2.0 | mm |
| SSN80*60 | 80 | 60 | 1.8/2.0 | mm |
| SSN90*67 | 90 | 67 | 1.8/2.0/2.3 | mm |
| SSN100*67 | 100 | 67 | 1.8/2.0/2.3 | mm |
| SSN100*9 | 100 | 95 | 2.0/2.3/2.5 | mm |
| SSN120*100 | 120 | 100 | 2.5/2.75/3.0 | mm |
| Size of Box Beam(Length:1000-4000)Q235/345D | ||||
| Specification | Width | Depth | Thickness | Unit-mm |
| SSN-K80*45 | 80 | 45 | 1.5 | mm |
| SSN-K80*50 | 80 | 50 | 1.5 | mm |
| SSN-K90*45 | 90 | 45 | 1.5 | mm |
| SSN-K90*50 | 90 | 50 | 1.5 | mm |
| SSN-K100*45 | 100 | 45 | 1.5 | mm |
| SSN-K100*50 | 100 | 50 | 1.5 | mm |
| SSN-K110*45 | 110 | 45 | 1.5 | mm |
| SSN-K110*50 | 110 | 50 | 1.5 | mm |
| SSN-K120*45 | 120 | 45 | 1.5 | mm |
| SSN-K120*50 | 120 | 50 | 1.5 | mm |
| SSN-K140*45 | 140 | 45 | 1.5 | mm |
| SSN-K140*50 | 140 | 50 | 1.5 | mm |
| SSN-K160*45 | 160 | 45 | 1.5 | mm |
| SSN-K160*50 | 160 | 50 | 1.5 | mm |
Pallet Rack Features:
1. Offer customer 100% pallet selective right, customer can pick up any pallet they want. Beam can be adjustable by 75mm/50mm or 76.2mm(dexion style for empire size)
2. The size can be tooling according to warehouse situation, different loading available. Beam level loading capacity can be up to 5000kg/level.
3. Height of single post can be 12 meter , the system is flexible and can be structure of other storage system like mezzanine floor, automatically racking system and mobile racking system. Pallet Racking also can be structure fame of steel warehouse.
4. Various of component and accessory and add into pallet racking system to meet customer special requirement, like wire decking, steel shelf, drum supportetc.
5. The total investment cost is low, easy to install and relocation. It's suitable for different material handling equipment.
AS4084 Certificate & ISO9001

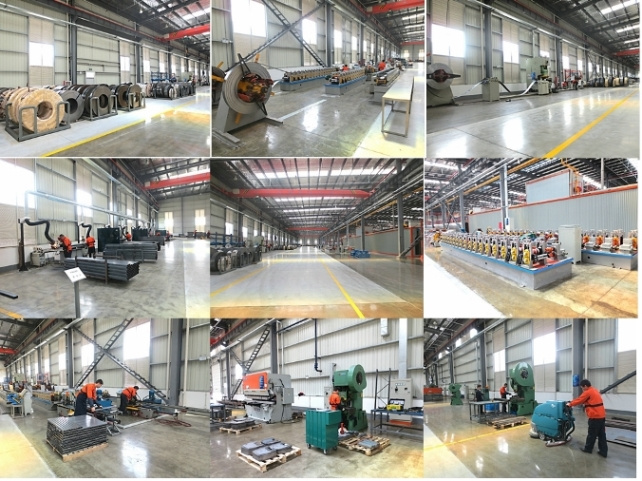

Factory View
Frequently Asked Question
1. What makes you different with others?
1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days. As a manufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty!
2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days. The delivery time of the special products is according to the time of setting up of the tooling.
3. What is the term of payment?
L/C
TT 30% deposit after order confirmed, 70% balance against Copy of B/L Or before shipment.
TT 30% deposit after order confirmed, 70% balance against Copy of B/L Or before shipment.
4. May I know the status of my order?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by express.

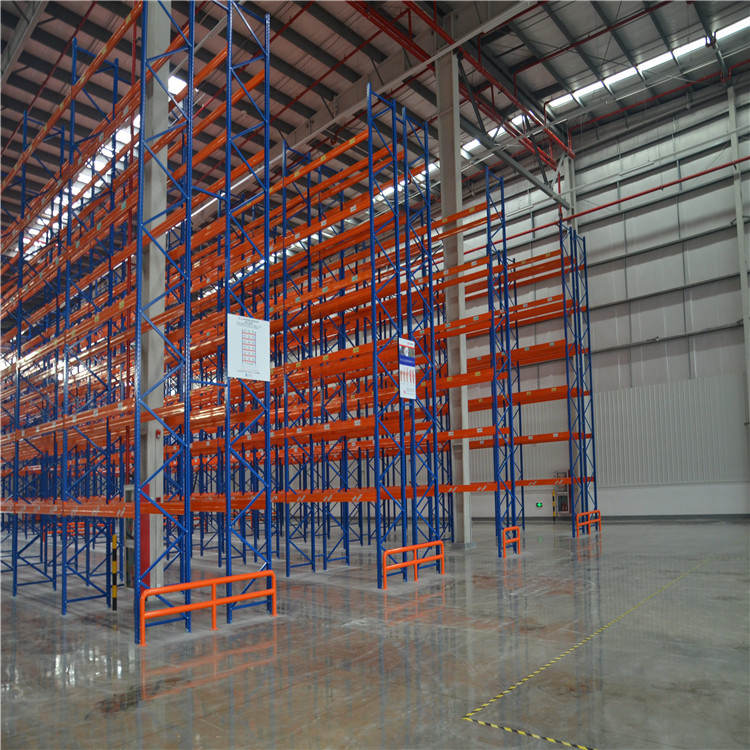

Pallet Racking Structure
1. Upright Frame consists of 2 single post, horizontal bracing & diagonal bracing and bolts & nuts to connect them. The structure could give system a stable support. There are 2 or 3 lines of holes on post , the pitch is usually 75mm or 50mm, which make the beam height can be adjustable by 75mm or 50mm freely. Post section have 11-13 face, which increase the loading capacity. Upright Frame is made by rolling and forming machine.
2. Beam consists of one bar and two beam connectors, beam is made by 2 pieces of profile welding together, which double the thickness of top & bottom side. This maximum the loading capacity under low cost. Safety pins lock into beam to prevent beam from falling down.
Column Guards
The Column Guard is bolted to the floor in the front of the uprights providing protection from forkits to the bottom portion of the upright.
Storage Accessories
A range of accessories are available to tailor pallet racking to specific needs and applications. Standard accessories include:
Pallet Support Bars
Supported at each end by the beams, Pallet support beams provide a secondary support member for pallet racking or shelving. The Pallet Support Bar is designed to have its top surface approximately flush with the beams.
Pallets
Mesh Decks
Clip on wire Mesh Decks minimize the build up of dust and increase light and visibility in warehouses.
Other Accessories
Floor Anchor Bolts
