Heavy Duty Warehouse Selective Adjustable Steel Rack
| Price: | US $ 78/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JCHDR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500-3000kg/Level |
| Height: | 2-15m |
Product Description

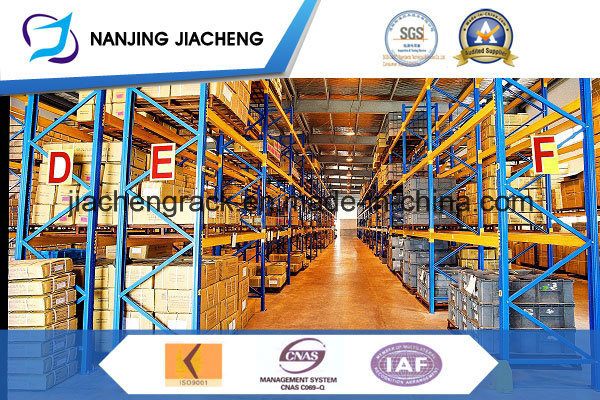

Warehouse pallet racking is also called beam racking. I t is a cost effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Our Pallet racking can be configured in a variety of ways and systems, depending on the customer's requirements and pallet load. Whether its frozen food in a cold store utilising, either Drive-in racking or mobile racking (MOVO), or bulk goods, such as products with a "best before date", that are stored on a FIFO (first in first out) pallet flow system, all goods stored on pallets will be ideally stored by one of these methods as this provides optimal storage economics. It includes all types: beam racking, drive-in racking, push back racking, premie rack wide aisle, selective pallet racking
Features and the Advantage:
A. It is designed to store pallet cargo. It enables you to make full use of the storage space. With a wide range of optional solutions and components available, we can design special super lock racking system according to your requirements.
B. It can be coupled with different specifications of pallets and containers.
C. It can coordinate with all the handling equipment and operational equipment.
D. It is manufactured in accordance with international quality standard ISO9001:2000, as well as international design standard SEMA, FEM, and AS4084.
E. Pallets can be located, accessed and moved individually, Rapid handling of almost all types of palletised goods.
F. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
G. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
H. Strength and rigidity prevents compression damage to goods.
I. Bottom level of pallets can be stored on the floor, lowering structure costs.
J: The beam, upright and accessories are packed separately. They can be bundled separately with the carton box and films. Please see the pictures.
Packing & Delivery:
A. Packing: first PP film inside then carton packed outside, suitable for exporting according to the performance of the goods
B. Lead Time: 7-25 days
The Specification and Parameters:
| Material | High-quality steel , Q235 | |
| Surface treatment: | Powder coating: Normal color(Orange or blue) or customized | |
| Size | Height | 2-16m (6.56-52.5ft), or customized |
| Width | 1.5-3.3m (4.92-10.82ft), or customized | |
| Length | 0.8-1.2m (2.63-3.94ft), or customized | |
| Thickness | Upright: 1.5-3.5mm; Beam: 1.5-4.0mm | |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
| Load capacity | 1-4Tons/Layer | |
Quotation requirements, kindly inform us the info as below
- Drawing of racking or warehouse (if available)
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many layers do you need?
Package and Performance Pictures Showing:
