Heavy Duty Warehouse Storage Cantilever Rack
| Price: | US $ 90-95/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SL-C006 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fast Delivery: | Within 15 Days |
| Adjustable: | 140/75mm Per Pitch Adjustable |
| Feature: | Corrosion Protection |
| Style: | Heavy Weight Rack |
| OEM: | Acceptable |
| Quality Warranty: | 5 Years |
| Surface Treatment: | Powder Coated, Galvanized Finish |
| Arm: | Max 1200mm |
| Upright: | Max 5000mm/Customized |
| Material: | Steel |
| Structure: | Cantilever Rack |
| Mobility: | Fixed |
| Height: | 0-5m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Type: | Rack for Car, Long Conduits, Pipes |
| Weight: | Max 1000kg Per Arm |
Product Description

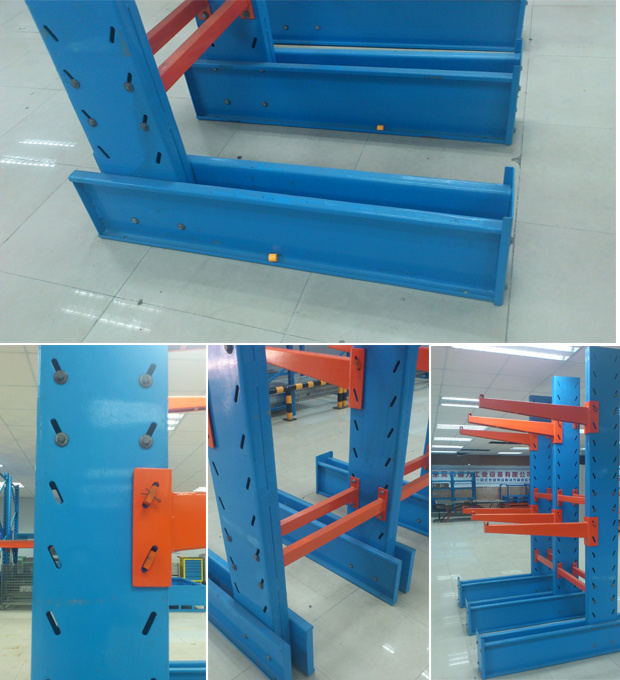

Heavy Duty Warehouse Storage Cantilever Rack
Techincal details of cantilever rack:

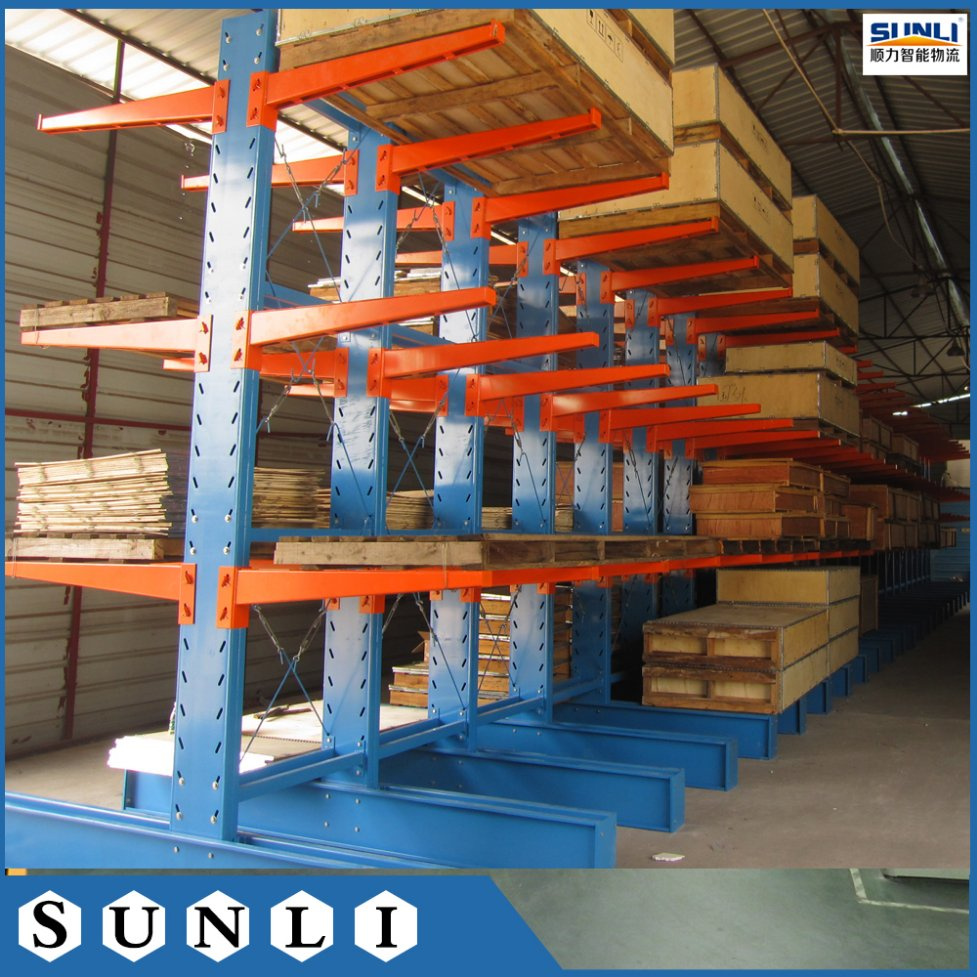

| Style | long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage |

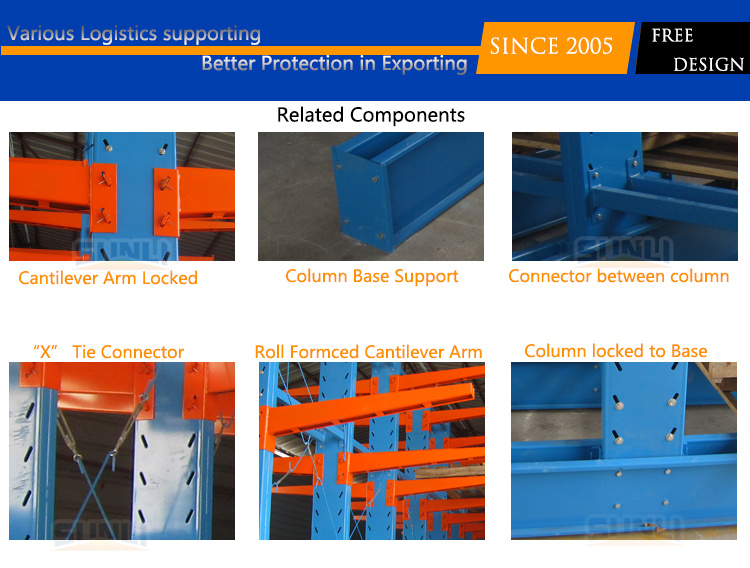

Main Components | 1, Vertical column( adjusted pitch of 140mm) 2, Column basis( W300*45/45mm) 3, Cantilever arm( Hanger 150mm) 4, connector/ "x" connector between columns |
Components structure | 1, vertical column: C/C tubes welded 2, column basis: C/C tubes bolted 3, cantilever arm: bended plate with hanger |
| Component ranges | 1, vertical column: 300*90( 45+45mm) 2, Column basis: 300*45 |
| Thickness | Column/basis/cantilever arm: 2.0mm~4.0mm Connector: 1.5~1.8MM |
| Cantilever arm length | Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm) |
| Column length | Cantilever arm length + extra 400~500MM |
| MOQ | 2 units |
| The width between columns | 400MM~1500MM ( narrow space will make stronger loading on cantilever ) |
| Material | Made of Q235B steel |
| Lead time | 25~30days( regardless of purchase quantities) |
| Stock | We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed) |
| Colour | RAL 5015( blue) + RAL 2004(Orange) |

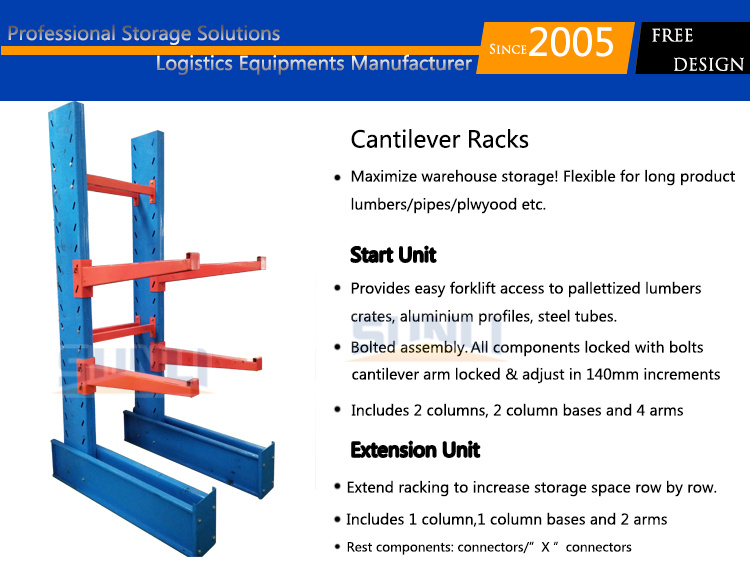

Basic structure of heavy duty cantilever rack units:
(Our Services)
Business scope within Sunli Company
| Pallet storage | Warehouse Rack | Double deep pallet rack |
| Radio shuttle rack | Double deep pallet rack | |
| Accessories | Long span shelving rack | Mezzanine Rack System |
| Long items | Cantilever rack | Stackable Pallet Rack |
Please inform us following information to get prompt offer for cantilever rack system
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for cantilever rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
