Home LED Light Products Heavy Duty Warehouse Storage Racking with Sustainable High Quality
Heavy Duty Warehouse Storage Racking with Sustainable High Quality
| Price: | US $ 0.7-0.74Sets |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1Sets |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Surface Treatment: | Plastic Spray or Baked Paint Finishing |
|---|---|
| Certificates: | ISO,CE,SGS,RoHS |
| Feature: | Corrosion Protection |
| Connecting Way: | Bolted |
| OEM: | Yes |
| Export Markets: | Global |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | Selective |
| Weight: | 500-5000kg |
Product Description

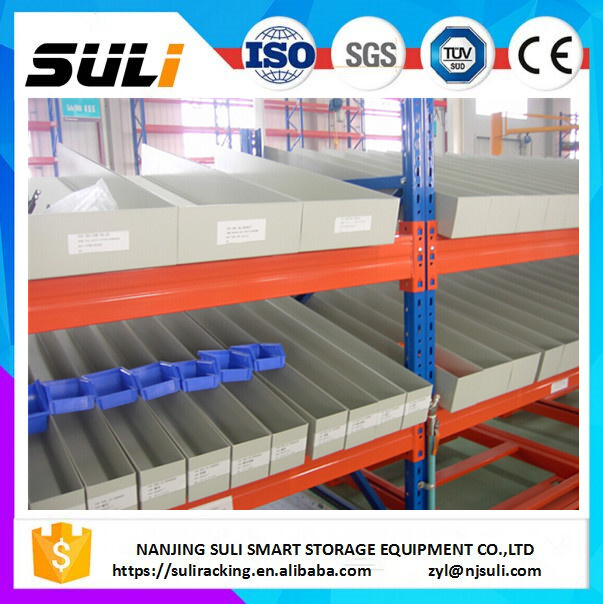

Industrial Storage Steel Pallet Racking/Pallet Rack System
Specifications:
1 high stability and density rack
2 first-in-last-out principle
3 maximum 1500kg per pallet
4 work with pallet and forklift
Heavy-duty storage rack is also called pallet rack, beam rack and c, they are most widely used which need to apply with forklift that can pick up freely any goods put on to the location with the feature of simply structure, easy operation, good storage and safety.
Heavy-duty beam racks can be used companied with different kinds of accessories, such as support bars, wire cages, steel pallets, wood pallets, steel meshes, etc, to meet different demands.
Product Feature
1. Loading capacity: 1000-4, 000 kgs /level & Max 15 ton each unit.
2. Height: 2, 000-11, 000mm
3. Depth: 400-1, 500mm
4. Length: 1, 500-3, 300mm
5. Thickness: upright: 1.5-2.5mm, beam: 1.5-2.0mm
6. Special sizes also avaiable to specific storage needs.
Our Storage Rack Advantages
1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.
Our Advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents

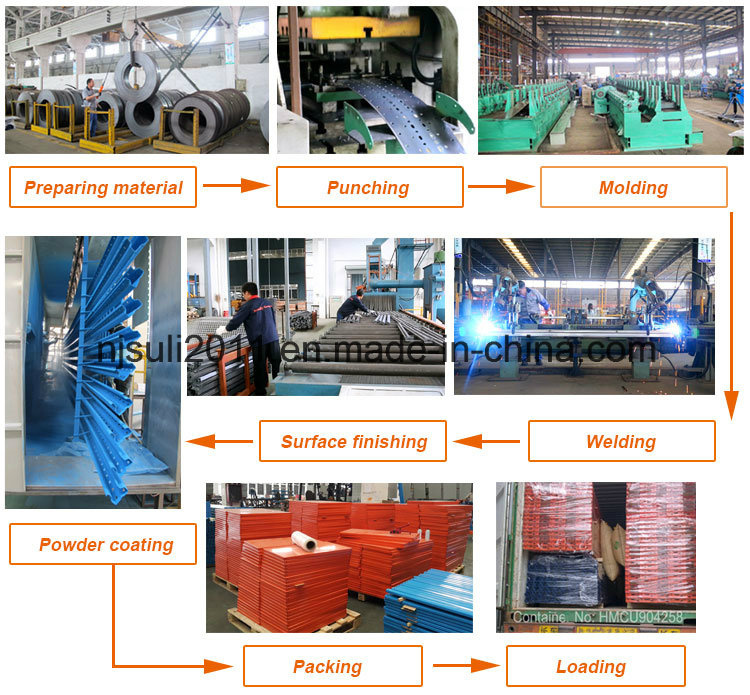

4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)
Our normal standard type storage racks as below sheet:
Refer to the sheet, we have several normal standard types for your choice.
If there are not suitable one for you, we also accept your customized design.
| Feature of Pallet racking | ||
| Meterial | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China. | |
| Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. | |
| Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
| Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. | |
| Length | 0.8-1.2m (2.63-3.94ft), or according to customer' s requirements. | |
| Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0. Refer to below sheet 2 for more details. | |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
| Loading capibility (per layer) | 700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. | |
| Layer nos. | 2-7 layers. or customized. | |
| Packing detial: | Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. | |
| Delivery detial: | 10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits. | |
Nanjing Suli Smart Storage Equipment Co., Ltd. Is specializes in providing total solutions for warehousing equipment system supplier. We provide our clients with warehousing systems consulting, design, manufacture, installation and service integration, integrated services.
Produced strictly to ISO9001 quality system to operate as a standard, all products are advanced European industry standard to test. The company has strong technical force, product development team, mature professional installation team and perfect service system. With excellent product quality and efficient after-sales service, product by all levels of users.
The company has a large number of professional and senior technical personnel, and with the Southern Electrical and Mechanical College has long-term technical cooperation, the introduction and digestion products internationally advanced logistics technology, innovative spirit, and always keep the company in the industry' S technology leader.
Nanjing Su Li Smart storage equipment Co., Ltd. Is a professional engaged in R & D, production, sales of smart storage equipment, technology oriented enterprises.
The company has strong technical force of product R & D team, mature and professional installation team and perfect after sale service system. With excellent product quality, efficient after sale service, products are well praised by users at all levels
The company's business scope: Automatic handling robot system, overall racking system design, system integration, warehousing material handling system.
Produced strictly to ISO9001 quality system to operate as a standard, all products are advanced European industry standard to test. The company has strong technical force, product development team, mature professional installation team and perfect service system. With excellent product quality and efficient after-sales service, product by all levels of users.
The company has a large number of professional and senior technical personnel, and with the Southern Electrical and Mechanical College has long-term technical cooperation, the introduction and digestion products internationally advanced logistics technology, innovative spirit, and always keep the company in the industry' S technology leader.
Nanjing Su Li Smart storage equipment Co., Ltd. Is a professional engaged in R & D, production, sales of smart storage equipment, technology oriented enterprises.
The company has strong technical force of product R & D team, mature and professional installation team and perfect after sale service system. With excellent product quality, efficient after sale service, products are well praised by users at all levels
The company's business scope: Automatic handling robot system, overall racking system design, system integration, warehousing material handling system.
