Heavy Middle Light Duty Warehouse Storage Pallet Rack
| Price: | US $ 35/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | YD-S026 |
|---|---|
| Warehouse Rack: | Storage Warehouse Rack |
| Size: | Different Size |
| Shelf: | 3~6 Layers |
| Color: | Any Color |
| Finish: | Good Powder Coated |
| MOQ: | 10PCS |
| Loading Port: | Shanghai |
| Certification: | ISO9001:2008&Ce |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 100~3000kg/Layer |
Product Description

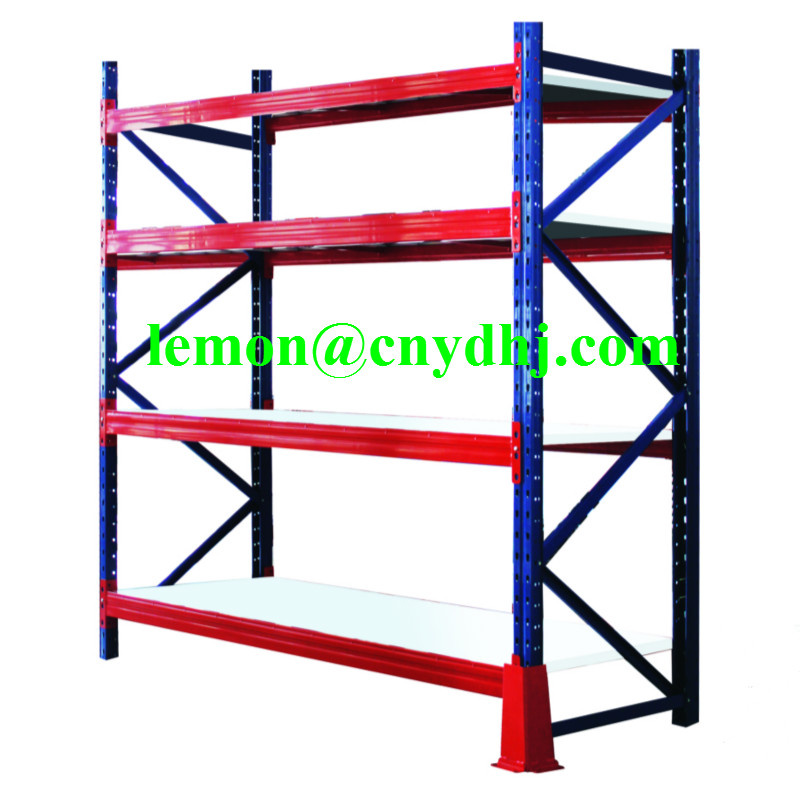

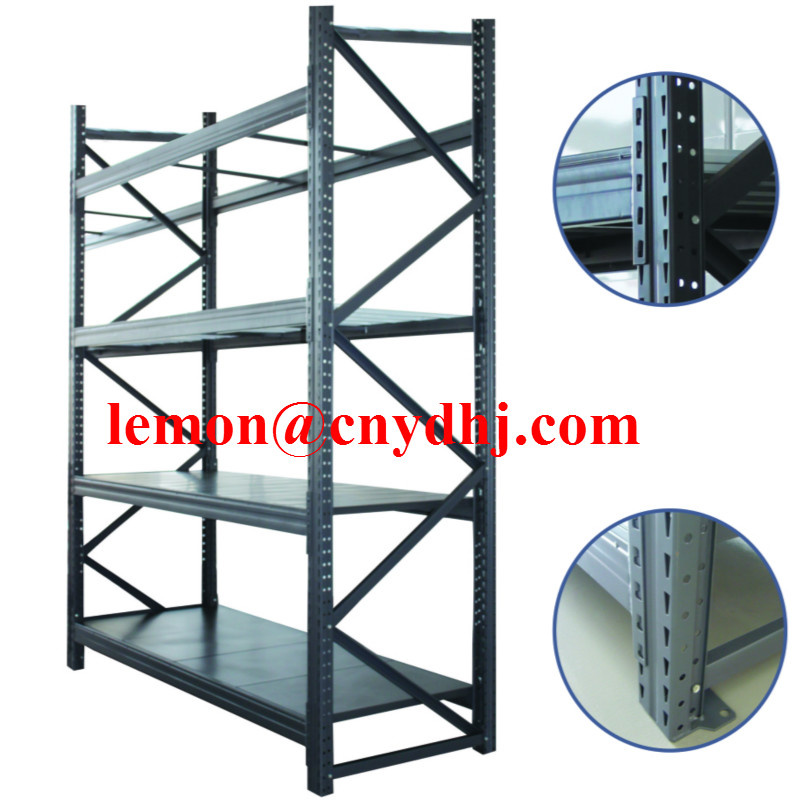

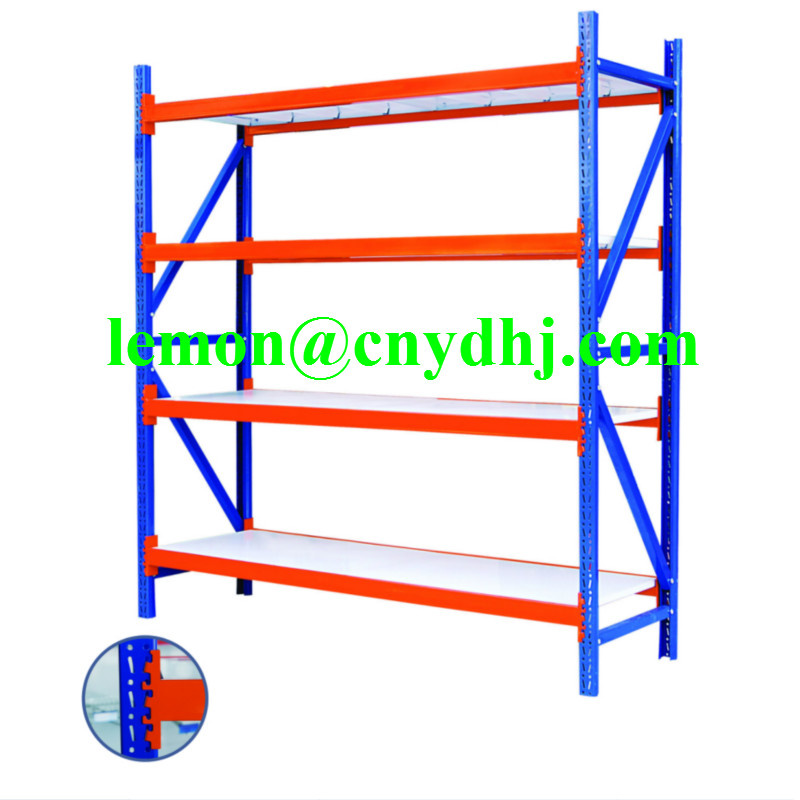

Heavy Middle Light Duty Warehouse Storage Pallet Rack
* any color and size can be available
* high quality and factory price
* ISO standard and large capacity
* rich experience in trade for 15 years
* get a variety of international quailty certisification
Detailed Product Introduction:
1) specification: with different size (Acceptable of required size)
2) material: cold roll steel;
3) color: Any color;
4) layer 2~5 layers;
5) capacity: 100~3000kg/layer;
6) finish: good powder coating;
7) Features: *Pallets can be located, accessed and moved individually
*Rapid handling of almost all types of pallet goods.
*Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
*Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
*Strength and rigidity prevents compression damage to goods.
*Bottom level of pallets can be stored on the floor, lowering structure costs
8) MOQ: 10 pieces;
9) certification:ISO9001:20008&CE;
10) loading port: Shanghai;
11) transportation: select different ways refers to the quantity or the opinion of trade company;
12) delivery: within 15 days after we get deposit, much depends on the quantity your order;
13) packing: knockdown packaging according to part dimensions with plastic bubble film/carton;
14) samples: sample supply is Ok, but you need to pay for the sample cost and freight cost;
| secification | different size special sizes also available to specific storage needs . |
| main size | 1)post: 70*90*2.0mm;70*100*2.0mm;ect 2)beam: 50*140*2.0mm; ect 3)layer board: 1.0mm;ect 4)horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| layer | 2~5 (adjustable) |
| load-bearing | 1000~3000kg/layer |
| materials | cold roll steel |
| color | different color can be available |
| finish | good powder-coated |
| certification | CE&ISO9001:2008 |
| MOQ | 10 pieces |
| loading port | Shanghai |
| transportation | select different ways refers to the quantity or the opinion of trade company |
| delivery | within 7-15 days after we get deposit, much depends on the quantity your order. We promise delivery on time |
| terms of payment | T/T(30% T/T in advance, balance should be paid before shipping) Western Union |
| packing | board in carton, upright and beam in plastic bubble film (quality packing make sure goods safety) |
| samples | sample supply is Ok, but you need to pay for the sample cost and freight cost; |
features | 1) pallets can be located, accessed and moved individually 2) rapid handling of almost all types of pallet goods. 3) infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4) maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5) strength and rigidity prevents compression damage to goods. 6) bottom level of pallets can be stored on the floor, lowering structure costs |
remark | please offer us the following information in details when you place you order 1)full details of the size L*W*H and the layer board; 2)the color you required; 3)how many pieces you want; 4)the surface treatment. |
Product Show:
We produce a wide variety of warehouse equipment, and we can make the production according to your requirements, such as color, size, and so on.Here we have a wide variety of styles, and welcome to our factory.
item | specification L*W*H(mm) | post | beam | layer board | layer | load-bearing |
heavy duty rack | L2400*W1000*H2500mm(adjustable) | 70*90*2.0mm(adjustable) | 50*80*2.0mm(adjustable) | 0.7*0.8*1.0*1.5mm | 2-5 | 1000-3000kg/layer |
middle duty rack | L2000*W600*H2000mm(adjustable) | 40*80*1.0mm(adjustable) | 40*60*1.1mm(adjustable) | 0.5*0.4*0.35mm | 4 | 300-500kg/layer |
light duty rack | L1800*W500*H2000mm(adjustable) | 30*50*1.0mm(adjustable) | 30*50*1.0mm(adjustable) | 0.5*0.35*0.27mm | 4 | 100-200kg/layer |
Product Advantage:
1) Every layer of the board can be adjusted freely;
2) Color and size can be adjusted according to your requirements;
3) The heavy-duty standing posts is good looking and anti-rust with fine powder-coating;
4) Different thickness, size, layers, and colors are available for you to choose;
5) Popular design and perforated back panel, easy to assemble and dismantle, is safe to keep heavy goods with strong construction.
