Home LED Light Products Hengtuo Warehouse Storage Heavy Duty Pallet Racking with Wire Decking
Hengtuo Warehouse Storage Heavy Duty Pallet Racking with Wire Decking
| Price: | US $ 50-200/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | HT01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: | Plastic Spray or Baked Paint Finishing |
| Color: | as Required |
| Pitch: | 75mm |
| Feature: | Corrosion Protection |
| Connecting Way: | Bolted |
| ODM: | Yes |
| OEM: | Yes |
| Type Of Company: | Manufacturer |
| Loading Port: | Nanjing |
| Delivery Time: | 15-20 Days According to Quantity |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Height: | Selective |
| Weight: | up to 4500kg |
Product Description

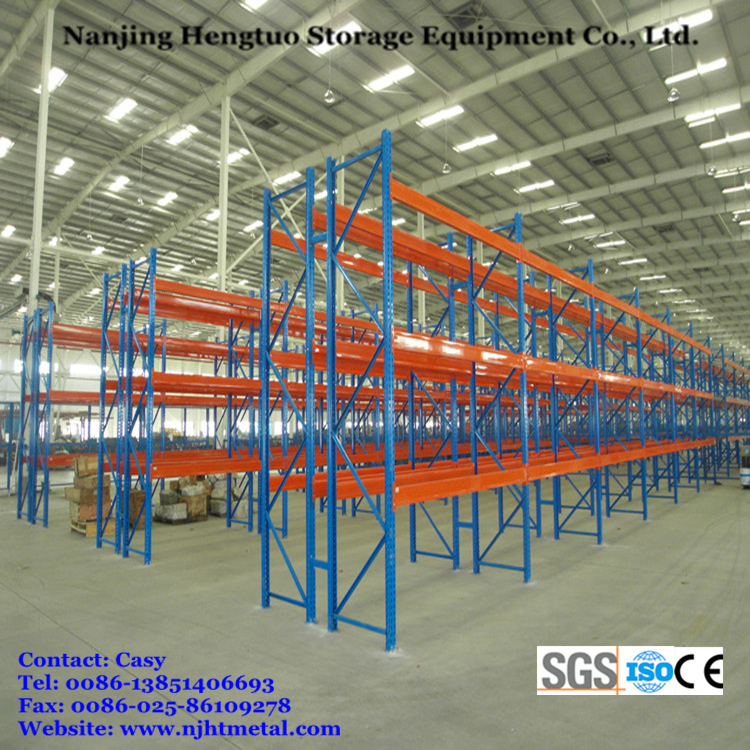

Hengtuo Warehouse Storage Heavy Duty Pallet Racking with Wire DeckingHeavy Duty Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:
Loading Capacity:Up to 4,500 kgs UDL/level
Racking Height:Up to 11,000mm
Racking Depth:700-1200mm
Beam Length:Up to 3600mm
Racking Finish:Powder Coated Finish or Galvanised Finish for Post & Bracing.
Technology for Trust
We deliver high quality products in a short time period and offer flexible contracts for our customers. We consistently uphold these contracts and are trusted by our customers.
1) Quality Control
We strictly monitor the stretching strength of our wire rods as well as the general quality of both our wire rods and our sheet metal materials.
2) Manufacturing
Our wire mesh is made by a Swiss-made automatic multi-point welding machine. The bottom section of our pallets (mesh, steel reinforcement, and legs) are produced on an automated line. Through the mechanization of our facilities we deliver consistently high quality products.
3) Inspection
Each individual piece is inspected to insure there are no problems with assembly or breaking down processes. Only those which pass inspection are sent on for surface treatment and to the processing area for finishing and delivery to customers.
4) Rush Delivery Options
We carry out production at our factories according to customer needs. By doing so, we can pass on savings to the customer and offer a faster delivery speed. We are flexible and can also accommodate custom sizes and small lot production.
Welcome to Jintuo!!
Any more details, please feel free to contact me!
Contact Information:
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278
| Features | 1. Pallets can be located, accessed and moved individually. 2. Rapid handling of almost all types of palletized goods. 3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5. Strength and rigidity prevents compression damage to goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Load Capacity & Dimension | 1. Loading capacity: 500-4, 000 kg UDL/beam level. 2. Height: 1, 000-11, 000mm 3. Depth: 400-1, 500mm 4. Length: 1, 500-3, 300mm 5. Special sizes also available to specific storage needs. |

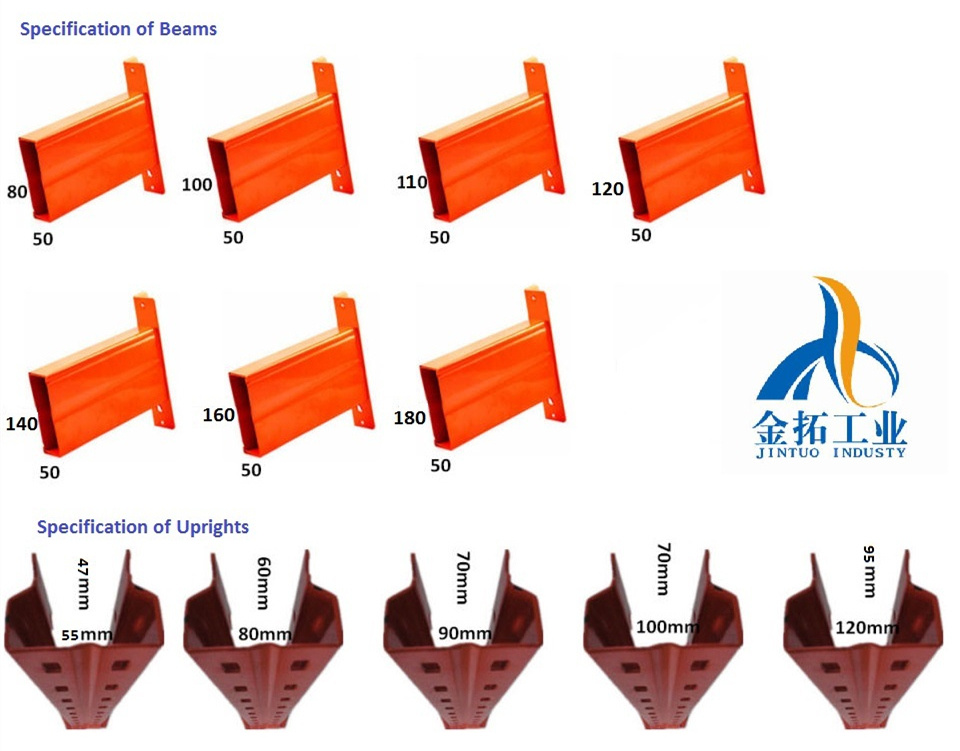

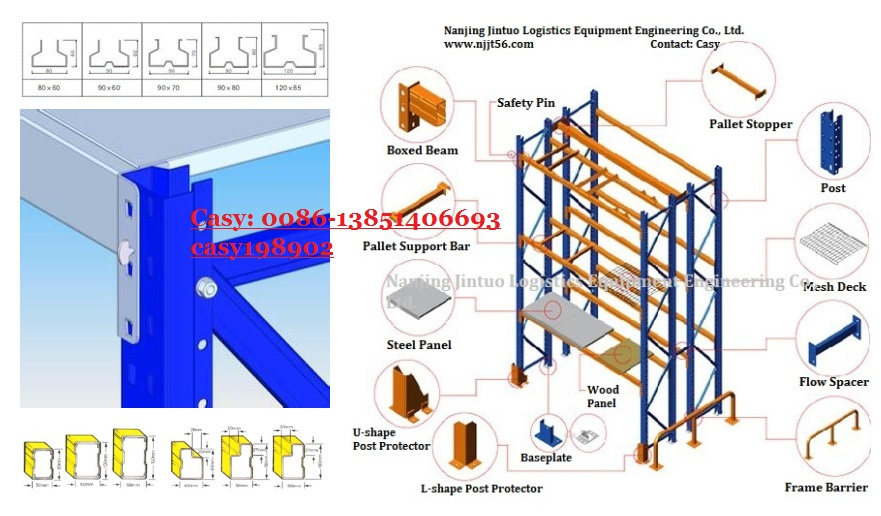

| Main Parts Specification | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality steel from big steel company in China |
| Finish | High-quality Powder Coating |
| Delivery | Within 25 days for ordinary order quantity. Big production capacity allows us to make a quick delivery. |
