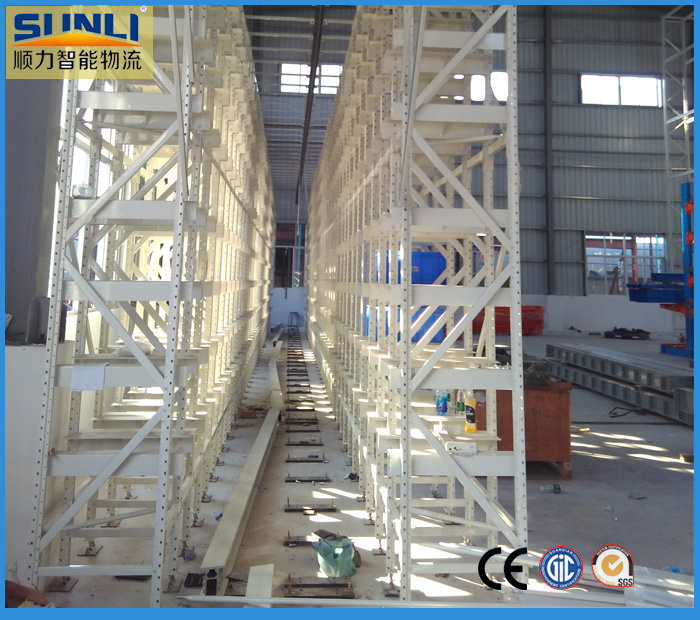

High Density as/RS Warehouse Racking System

High Density as/RS Warehouse Racking System
Price: US $ 100/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 2500/Square Meter
Pay Type: T/T
Prod Model: SL-AS001
Markets: South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Certificates: ISO/CE/SGS
Size: According to Your Box Size
Load: 500kg/Layer
Layer Type: Shelving Decking
Delivery Detail: 20~30days
Upright: Max 11m
Material: Steel and Reinforced Concrete
Structure: Layer Frame
Mobility: Fixed
Weight: 500kg
Closed: Closed
Development: New Type
Serviceability: for Special Purpose
Type: as/RS Rack
Height: Within 11m

Product Description

AS&RS Warehouse Racking System


NO.1: Rack  Part for AS/RS/ssytem:
1) AS/RS System are usually equipped with standard pallet rack and drive-in pallet rack or medium shelf rack , they are composite structure.
2) Steel panels and wooden panels are available for storage.
   Conveyors will do the loading and unloading job under the instruction of the computer.
3) AS/RS System is mainly used in the food, electronic, mechanical and garmament industry.


No.2: Stacker in Automated or Retrieval Warehouse Racking Sytem(AS/RS)

1) Double Row upright,, steady and reliable, vector frequency conversion drive and encoder-positioned control,
   mechanical and electronic safety devices to ensure application of the system; all the way tracing technology by information transferring;
2) electric components(Imported)
   touching screen interface for making manual, semiautomatic, automatic and linkage control come true;
   Easily link with warehouse management system.

Model
Loading capacity   Height     Travel Speed
0.1T/100KG5-30M  (export 11m) 165M/MIN
0.5T/500KG5-30M  (export 11m)160M/MIN
1T/1000KG 5-30M  (export 11m)165M/MIN
2T/2000KG 5-30M  (export 11m)120M/MIN
3T/3000KG 5-30M  (export 11m) 105M/MIN

No.3: Conveying system in AS/RS Warehouse Racking Sytem
Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there,
bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts,
rotating devices and other equipments.

No.4: Controlling system
Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline,
doing conveying of goods automatically.

No.5: WMS System
Hardwares of WMS System: star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.

No.6:  Softwares of WMS System:
Operating system: WINDOW 2000X SEVER
Data-base: MS SQL SEVER 2000X
Warehouse management software: WMS
Equipment controlling software: ECS
Bar code management software: RFS

No.7 : Other related equipment
Other related equipment include switching cart, rail cart, O/R table, automatic guided vehicle, auto-picking system, electronic label, pallet lift and so on.

No.8:  Others
Design: professional   design for your requirment:include choose the correct type for you,CAD   drawing
Price direct Manufacture   price,according to your quantity,payment
Package standard   export package
Payment 30%prepaid   T/T,L/C at sight
Trade Terms:   FOB,CNF,CIF
Shippment FOB Shenzhen

Quick Delivery. Within 18-25  days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
Certification CE:if you   need,can make for you
                others:ISO9001,

Important   information for quick quotation:
1.   Racking's DxWxH
2.   Loading capacity per level
3.   Quantity of levels
4.   The size of warehouse
The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.

Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.

As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.

What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.

Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,

New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.

Sunli motto "Value beyond expectations
