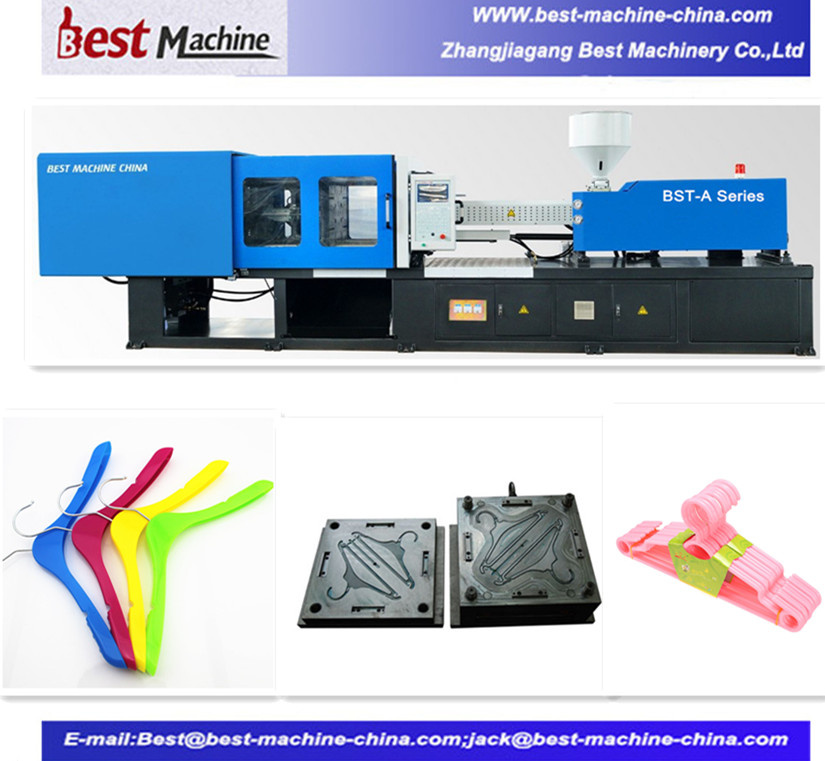

High Quality Housewear Plastic Hanger Injection Moulding Making Machine

Prod Model:	BST-1800A
Name:	Well-Known PVC Pipe Fitting Molding Machine
Screw Diameter:	45-48mm
Shot Size:	372-420cm³
Shot Weight:	335-378g
Injection Pressure:	168-148MPa
Injection Rate:	142-160g/S
Screw L/D Ratio:	23.1-21.7L/D
Screw Speed:	0-180r.p.m
Nozzle Diameter:	20
Clamp Tonnage:	1800kn

Product Description

Specifications
Injection molding machine
1.Big tie bar space and shot weight capacity
2.Most famous component parts
3.Perfect after-service

FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

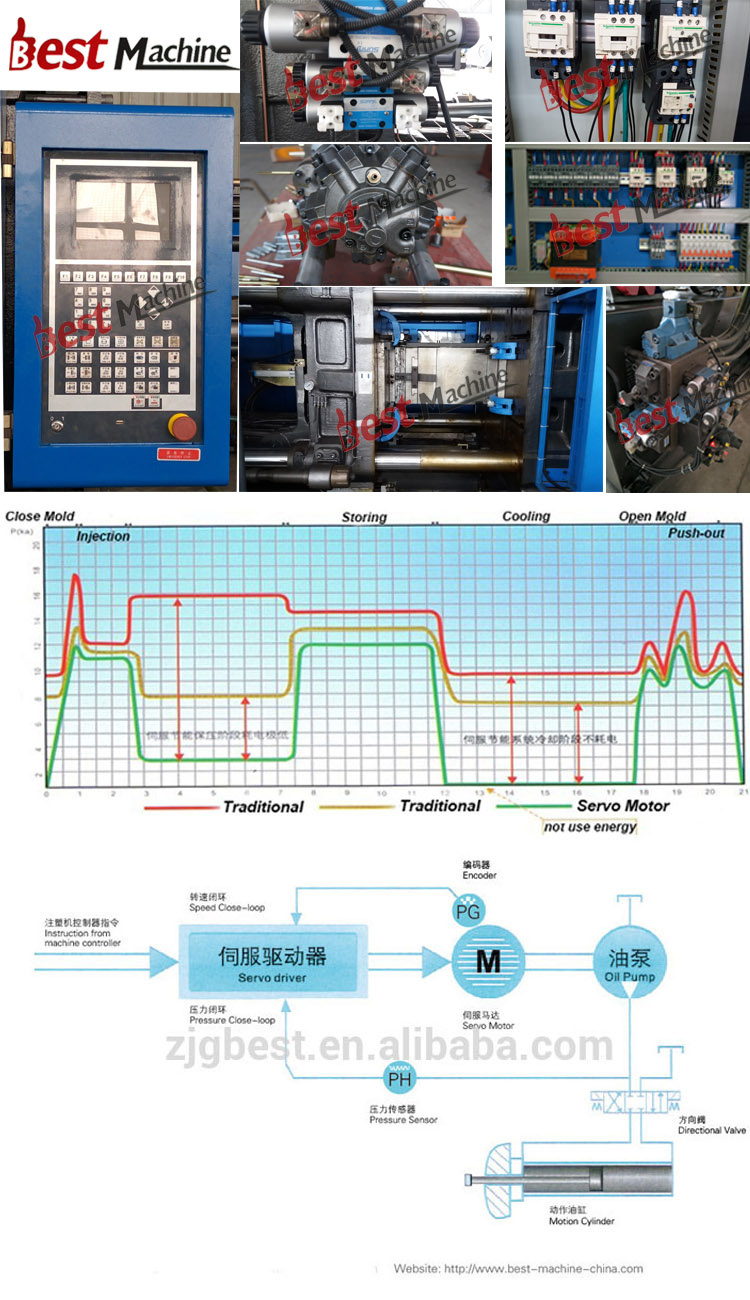

SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products high as well.


Technical parameters

MODEL		BST-1800A
INJECTION UNIT			A			B
Screw diameter		mm	45			48
Shot size(theoretical)		Cm³	372			420
Shot weight		g	335			378
Injection pressure		Mpa	168			148
Injection rate		g/s	142			160
Screw L/D ratio		L/D	23.1			21.7
Screw speed		r.p.m	0-180
Nozzle Diameter		Srmm	20
CLAMPING
Clamp tonnage		KN	1800
Toggle stroke		mm	440
Mould Thickness		mm	180-470
Space between tie-bars		mm	480X460
Ejector stroke		mm	155
Ejector tonnage		KN	70
Ejector number		Piece	5
Hole Diameter		mm	125
OTHERS
Heat power		KW	11
Max. pump pressure		MPa	16
Pump motor power		KW	15
Valve Size		mm	16
Machine dimension		m	5.3X1.6X1.75
Machine weight		t	5.5
Oil tank capacity		L	250

Our Service
Supply mode: the supplier factory delivery, simple packaging, the supplier agent consignments, the expense is payed by the buyer .

Terms of payment: the buyer pay 30% of the total payment as the signing of the deposit, the contract comes into effect, pay the balance before shipment .

Quality assurance: the equipment according to the enterprise standard implementation and mechanical guarantee period is one year, the main electrical appliances for half a year .

Method of acceptance: equipment processing after the completion of delivery, the buyer sent to the factory acceptance, for commissioning, the buyer to provide raw materials for plastic material .

Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) provide on-site installation guide;
B) responsible for the commissioning of equipment;
C) responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) one year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) provide technical advisory services for a long time

Delivery date: the contract is signed and completed within 45 working days after receiving the deposit unit processing and manufacturing, with the conditions of the factory acceptance
