High Quality Steel Structure Warehouse Racks
| Price: | US $ 750-850/Ton |
|---|---|
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | IRACKING |
|---|---|
| Racking Dimension: | Custom-Made to Specific Storage Needs |
| Finish: | Powder Coated |
| Installation: | Easy |
| Accessories: | Bolt, Protectors etc. |
| Application: | Normal Condition, Warehouse |
| Operation Tool: | Forklift |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | up to 12m |
| Weight: | up to 4, 000 Kgs Udl/Level |
Product Description
High Quality Steel Structure Warehouse Racks
Pallet Racking System is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features of pallet racks:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Why choose iRacking's racks?
1. As a leading racking manufacturer in China, we enjoy 10+ years of experience.
2. High quality raw material of steel Q235 is purchased from Jiangsu Shagang Group Co. Ltd., the top 5 steel manufacturer in China.
3. Industry's first contract tracking system helps you know the updates of your purchased products.
4. Certification: ISO9001:2008, SGS, CE, and AS 4084-2012
| Material | Steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 4,000 Kg UDL/level |
| Racking Height | Customized and up to 11,000 mm |
| Racking Depth | 700-1,200 mm |
| Beam Length | Customized and up to 3,600 mm |
| Racking Finish | Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |

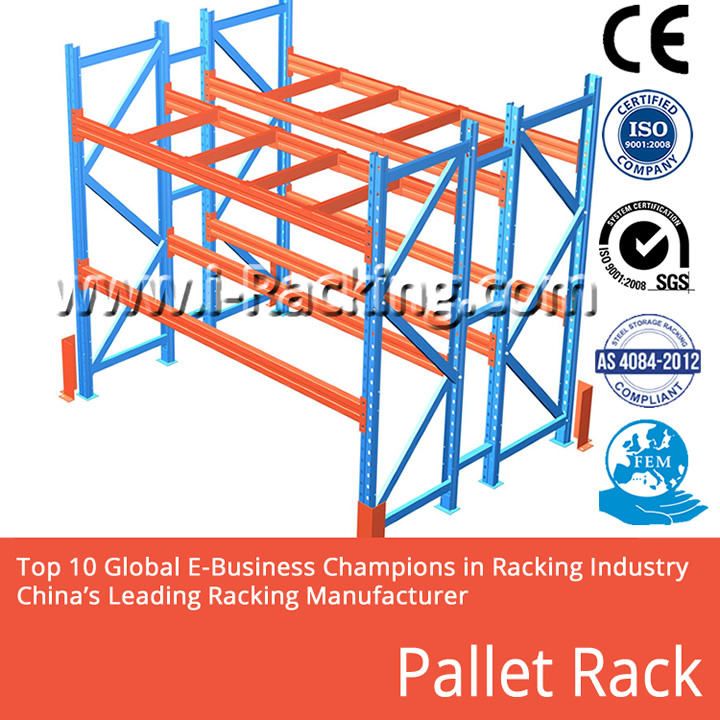

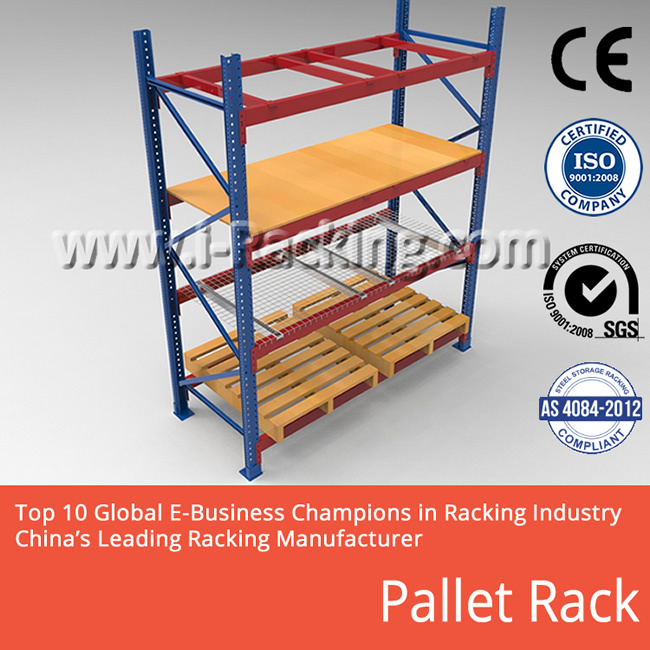

Product Show
Product Detais
Upright:
Standard section sizes: 80*60*1.8-2.0, 90*70*1.8-2.0-2.5, 100*70*2.0-2.5, 120*95*2.0-2.5mm.Boxed Beam:
Standard section sizes: 80*50*1.5, 100*50*1.5-2.0, 110*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm.
Small Components include:
Post Baseplate, Bracing, Plastic Block for assembly of horizontal bracing, Anchors, Bolts & Nuts, and Safety Pin.
Accessories to Pallet Racking Systems:
Row Spacer connecting Upright Frames for stronger structure, U-shape Post Protector, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, etc.
Who We Are
iRacking Co., Ltd. (NANJING IRACKING MANUFACTURING CO., LTD.), located in the city of Nanjing, China, is a professional manufacturer and supplier in the field of shelving & racking systems, storage equipment & accessories, and storage solutions and services.
Not only can we help to improve your partial storage work and operation speed, but also do the whole work of building a logistic center for you. We provide more than storage equipment.
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation
| 1. | Drawing (if available) |
| 2. | Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3. | Size of racking (H*W*L) |
| 4. | How levels of the racking? |
| 5. | Loading capacity of each level? |
| 6. | (RAL) Color you want. |
FAQ
1. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Nanjing City, Jiangsu Province, China, close to Shanghai. You can fly to Nanjing or Shanghai airport directly. You are warmly welcome to visit us whenever you are available!
2. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
3. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before shipping.
4. Q: What is delivery time?
A: It depends on the order quantity and racking types. As general, within 15 days, for ordinary order quantity of Storage Pallet Racking System.
5. Q: Which port will be used as loading port?
A: Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher in-land trucking transportation costs from our factory.
6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You can also get the latest information on our contract tracking system.
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
8. Q: Is Galvanized Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.
9. Q: How can I get your quick quotation on my pallet racking project?
A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know following info:
- Required Racking Dimension: Height*Depth*Length?
- Number of Levels?
- Loading Capacity of each level?
- Racking Quantity?
- If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
