Home LED Light Products High Quality Wall Network Rack

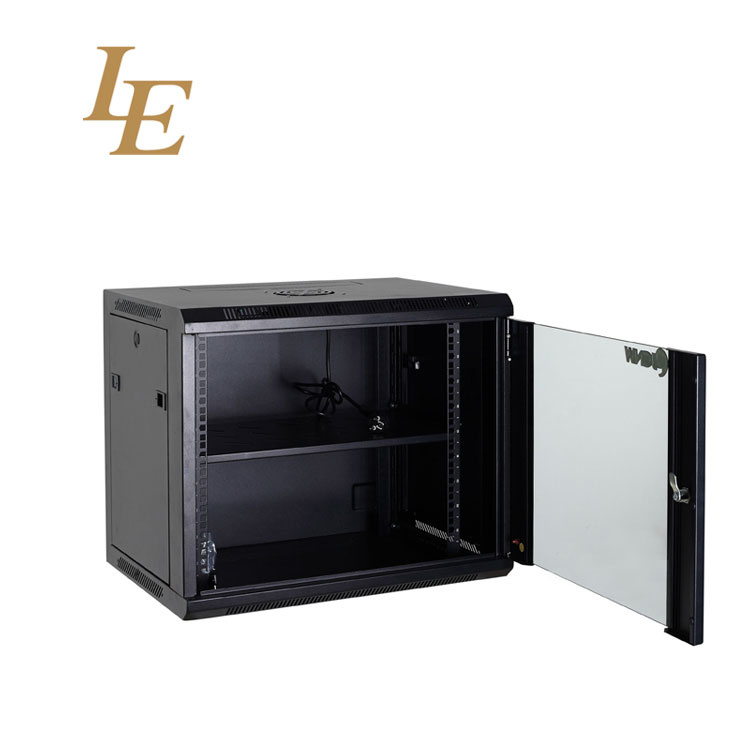

High Quality Wall Network Rack
| Price: | US $ 21-54/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | LE-WS1 |
|---|---|
| Product Name: | High Quality Wall Network Rack |
| Material Thickness: | Thickness: 1.2mm |
| Tempered Glass: | Thickness:5mm |
| Loading Capacity: | Static Loading: 60kg(on The Adjustable Feet) |
| Degree Of Protection: | IP20 |
| Surface Finish: | Degreasing,Pickling,Phosphating,Powder Coated |
| Height: | 4u-27u |
| Depth: | 600mm |
| Width: | 450mm,600mm |
| Color: | Ral9004; Ral9005; Ral7035 |
| Type: | Network Cabinet |
| Usage: | Network Integration System |
| Installation: | Wall-Mounted Cabinet |
| Certification: | SGS,TUV,BV |
| Condition: | New |
| Fan Number: | 1 to 2 PCS Fans |
| Capacity: | 4u-27u |
Product Description
General Description:1. Frame:Welded frame, unassembled structure with precise craftsmanship;
2. Single Section,compatiblewith 19"standard equipment;
3. Front Door: Tempered glass front door with over 180 turning degree;
4. Side Panel: Removable side panel, easy to install and maintain (lock optional);
5. Cable Entry on the top cover and bottom panel with knock-out plate;
6. L-Shaped Mounting Profile, easy to adjustable on the mounting rail;
7. Fan cutout on the top cover ,easy to install fan;
8. Installing back panel,easy to fix on the wall;
9. Various accessories for optional;
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel Thickness: 1.2mm Tempered glass Thickness:5mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 4U-27U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004; Ral9005; Ral7035 |
