Hot Sell Heavy Duty Pallet Racking

Hot Sell Heavy Duty Pallet Racking
Price: Negotiable/Set
Min Order: 20/Set
Pay Type: L/C,T/T
Prod Model: PR201703
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 5-15m
Closed: Open
Development: New Type
Serviceability: Common Use
Weight: 500-4000

Product Description

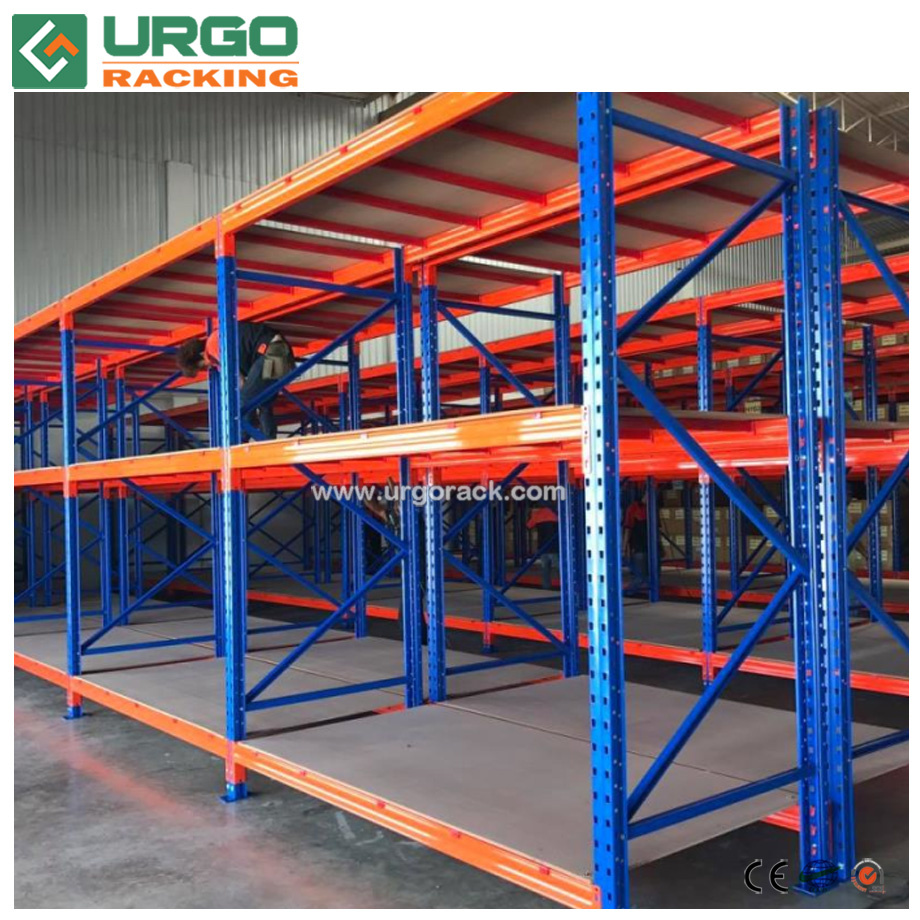

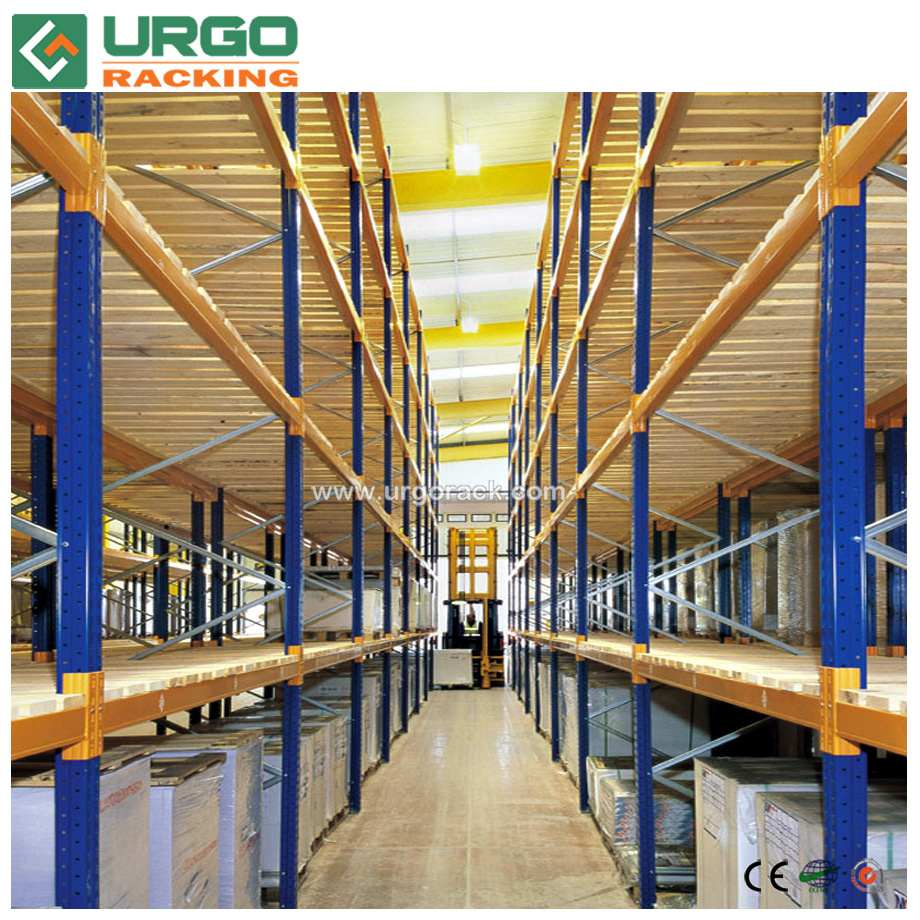

The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.



Warehouse Rack Use and customized Width drive in pallet racking

Features1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
 Load Capacity & Dimension1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.
Delivery TimeWithin 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.




Column Profiles:

Column Specification (mm)Thickness (mm)             Upright Loading (kg)
  W80 x D60 1.8-2.0 4000-6000 KG
  W85 x D67 1.8-2.3 7500-12500 KG
  W90 x D60 1.8-2.5 8000-10000 KG
  W90 x D70 1.8-2.5 10000-12000 KG
  W100 x D70 2.0-2.5 11000-14000 KG
  W120 x D95 2.3-3.0 17000-21000KG

Beam:

1. High load capacity up to 5000kg.

2 .Manufactured with the highest quality steel Q235.

3. Orange epoxy coated (RAL 2004).

4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm

5. Boltless connection with 3/ 4/ 5 connector hooks.

6. A security pins per beam to prevent accidental dislodgement.

7. Powder coating finish

Beam Profiles:

Loading (kg)

 Specification (mm)

The Length of Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
80 x 50 x 1.5 3000 1740 1340 1160 1010
90 x 50 x 1.5 4080 2350 1800  1645 1345  1010 850
100 x 50 1.5  2960 2260 1930 1680 1380 1040
 110 x 50 x 1.5   2640 2250 1950 1600 1340 1140
 120 x 50 x 1.5   3200 2730 2358 1930 1518 1379
 140 x 50 x 1.5    3868 3330 2720 2370 2020
 160 x 50 x 1.5     4220 3690 2970 2600 2340
 160 x 50 x 1.8      4400 3420 3020

 2590

160 x 50 x 2.0      4130 4170 3320

 2840

Loading (kg)

 Specification (mm)

The Length of P Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
100 x 50 x 1.5 4470 2512 1900 1610 1380 1120 920
110 x 50 x 1.5 5484 3085 2332  1974 1693 1371 1133 952
120 x 50 x 1.5  3910 2957 2503 2146 1738 1436 1207 1030
 140 x 50 x 1.5  5722 4330 3662 3140 2543 2102 1766 1505

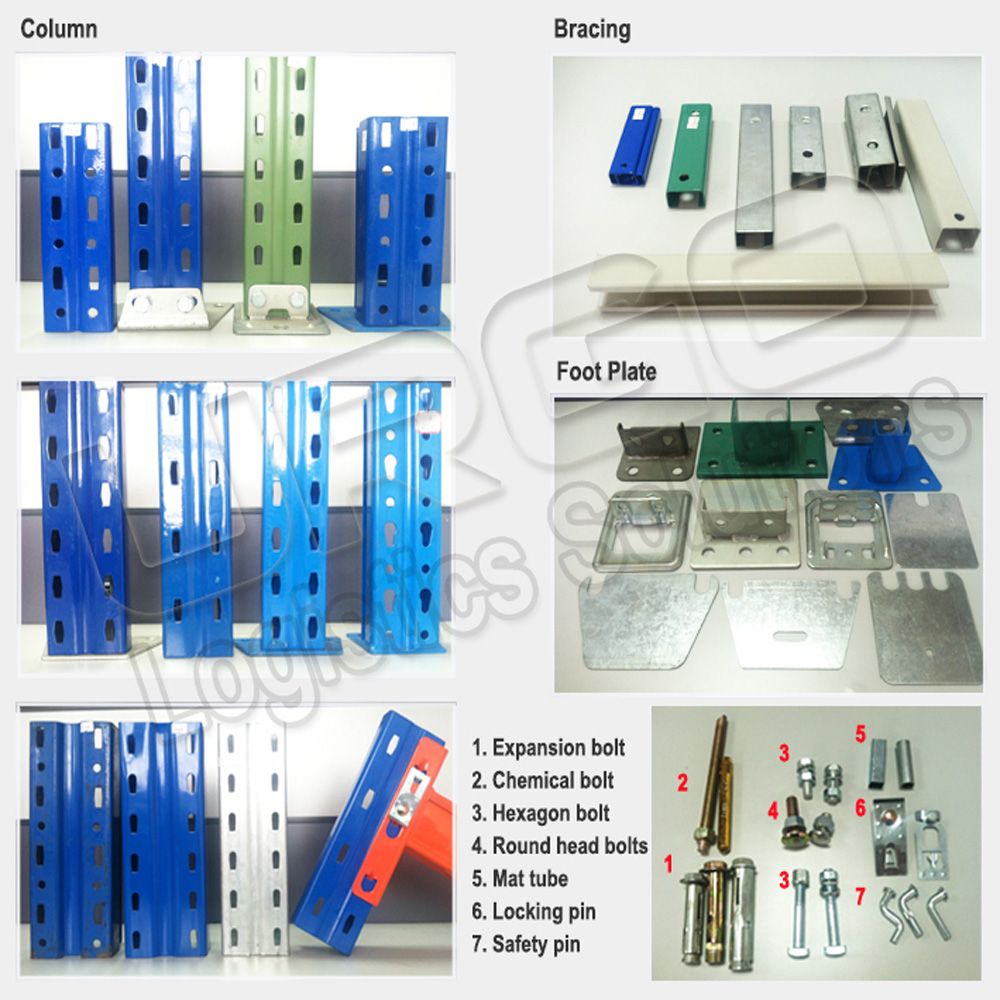

Main Spare Parts Profiles:

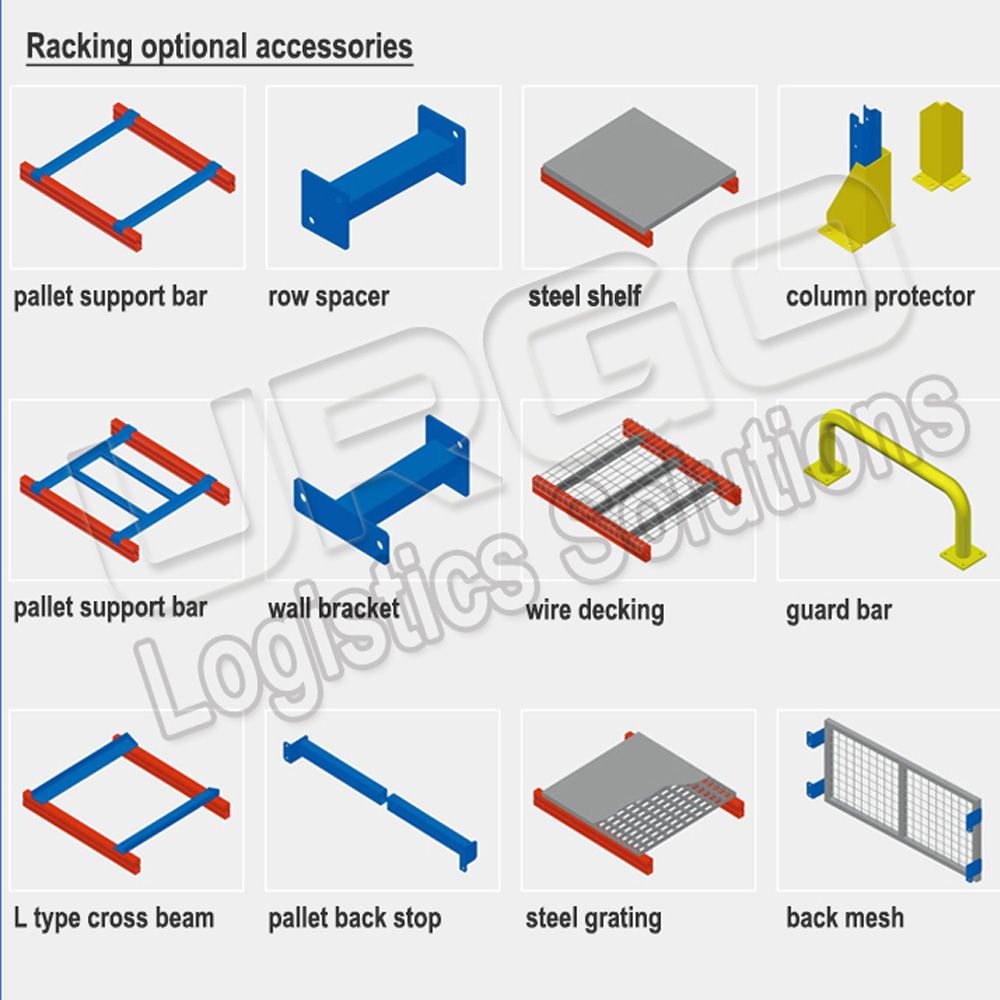

Optional Accessries

Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake  beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.









Nanjing Urgo Logistics Equipment Co., Ltd is located in Jiangning Economic Development Zone, Nanjing City, China, Set the development, design, production, sales, installation and after sale service in one, after years of development, she has become the leading manufacturer of logistics and warehousing equipment First, she is recognized as one of the industry leaders.

Since Urgo company has been set up to talent as a fundamental, take the market as the guidance, take the quality as the guarantee, to serve for the purpose of philosophy, with strong technical force, advanced production equipment, mature with processing technology, perfect quality assurance system and provide first-class products and services to the domestic and foreign customers.

Urgo all products have a stable structure, innovative design, reliable quality advantages. So they are exported to 50 countries worldwide, such as USA, Canada, India, Japan, Australia, New Zealand, Italy and South Africa and so on. In the domestic and foreign clients and peer supports, She is to develop advanced management, modernization of equipment, high-speed, and strive to become bigger, stronger "URGO" brand visibility and influence the nation and the world, and to become a world-class logistics equipment manufacturer.
