Prod Model: |
HML-M4 |
Company Type: |
China Professional Manufacturer |
Brand: |
Hml |
Product Warranty: |
1 Year |
Exterior Dimension: |
1545mm*1050 mm |
Loading Capacity: |
1500kg |
Load In 40hq: |
247sets |
Remark: |
Customized and OEM Support |
Finish: |
Zinc Plated/ Hot DIP Galvanized/Powder Coating |
Product Shelf Life: |
up to 3 or 5 Years Against Proper Handling |
Sample: |
Offered |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Mobile |
Height: |
0-5m |
Closed: |
Open |
Development: |
Conventional |
Serviceability: |
Common Use |
Weight: |
1500kg |
Product Description
Specifications of movable post pallet Similar design, defferent sizes |
|
Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
|
| LxWxH(mm) | kg | | sets |
M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
M1-Post | 1200x60x2.5 | Hot dip zinc | 880 |
M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
M2-Post | 1200x60x2.5 | Hot dip zinc | 572 |
M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
M4-Post | 1510x60x2.5 | Powder coating | 988 |
M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
M5-Post | 2000x60x2.5 | zinc | 1020 |
M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
M6-Post | 2100x60x2.5 | Hot dip zinc | 320 |
Material | Mild steel Q235 |
Applicationarea | Warehouse, logistic, recycling, etc. |
Remark | Costomized or OEM support |
Key features | 1.Strong tubular steel - stack up to 4 high 2.Removable arms - fully collapsible, save space, easy storage when not in use 3.Cup feet - easy stacking 4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use |

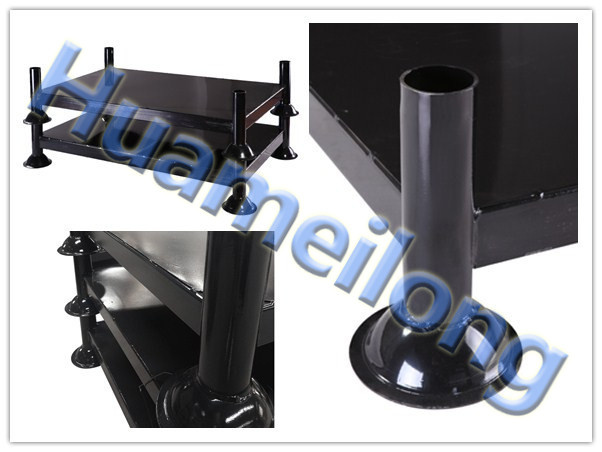

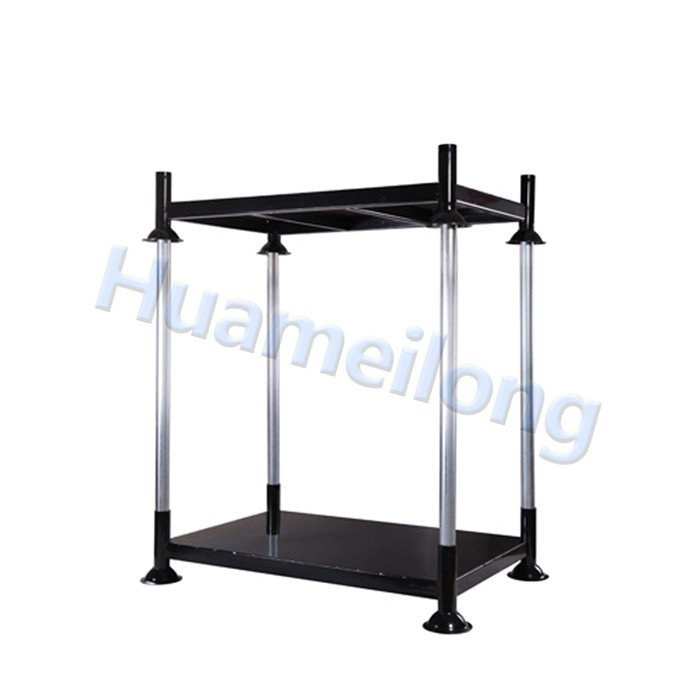

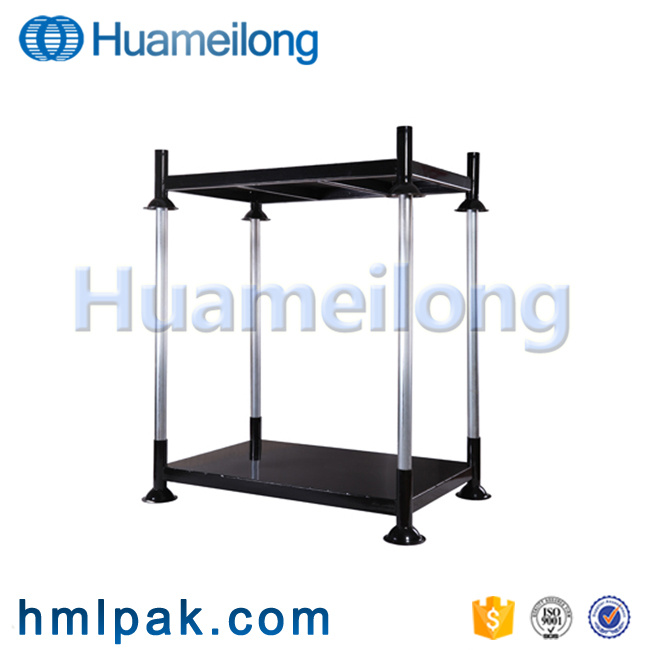

Hot selling huameilong industrial mobile adjustable suitable zinc finish rackingPowder coating steel plate, hot dip galvanized posts, load 1500kgDetails of movable post pallet

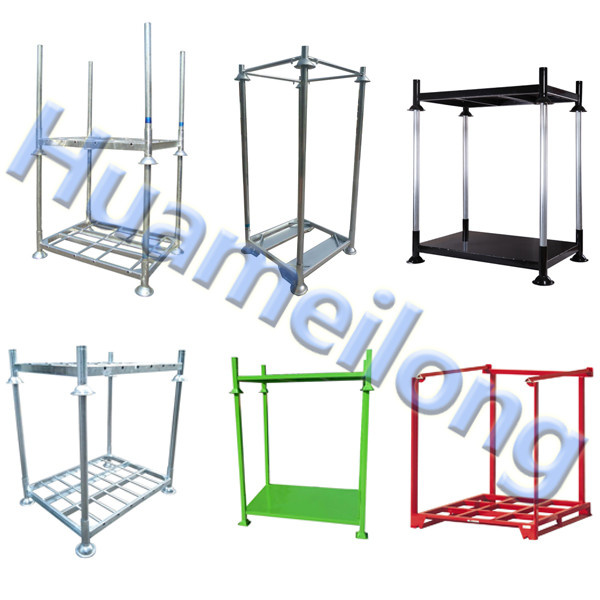

Other designs of movable post pallet
Detchable posts (assembled and disassembled within seconds)

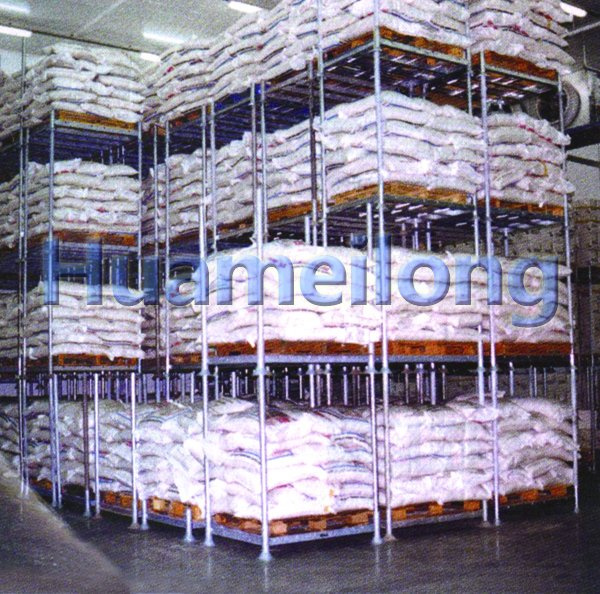

Usage of movable post pallet
It will enable you to transform areas which are usually free into storage spaces
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack for pallet stacking rack
