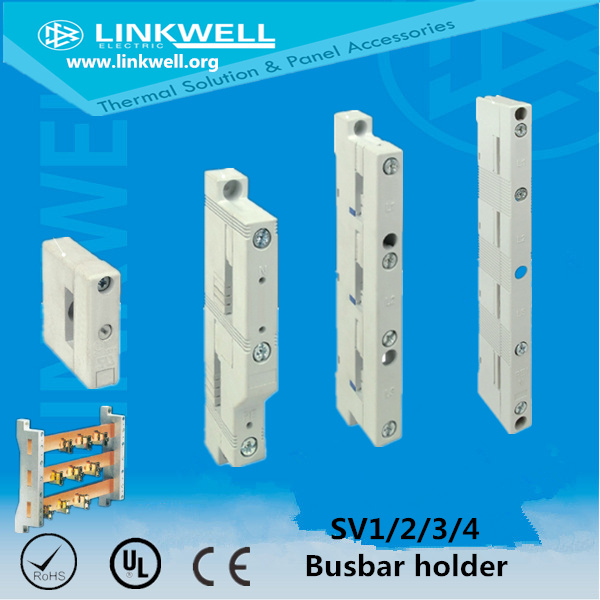

Industrial Busbar Holder (SV1, SV2, SV3, SV4)

Prod Model:	SV1, SV2, SV3, SV4
Material:	Glass Fiber Polyester
Temperature:	Max 140 Centigrade
Features:	Fire Proof
Voltalge:	1000V
Frequency:	50/60 Hz
Application:	Cable
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Linkwell

Product Description

New type ajustable busbar holder

Design:

with the wiring technique of wire section material and bus-bar without pinholes adopted, the bending-proof intensity and short-circuit-proof capacity of the bus-bar are improved, and it also helps to cool the bus-bar, lower the temperature and increase current capacity.

The Linkwell busbar system has been used to develop various switches. The system is also widely used to devop various switches. The system is also widely used in low-voltage electricity supply and distribution devices and industrial and building electric appliances.

Material:
Glass fiber strenghthened, themoplastic polyester(PBT), continuous working temperature max 80ºC

Testing base: VDE 0660/IEC 439
Testing process: according to dynamic short circuit intensity of IEC 439

Rated working voltage up to 1000 volt, 50/60 HZ. According to VDE 0660

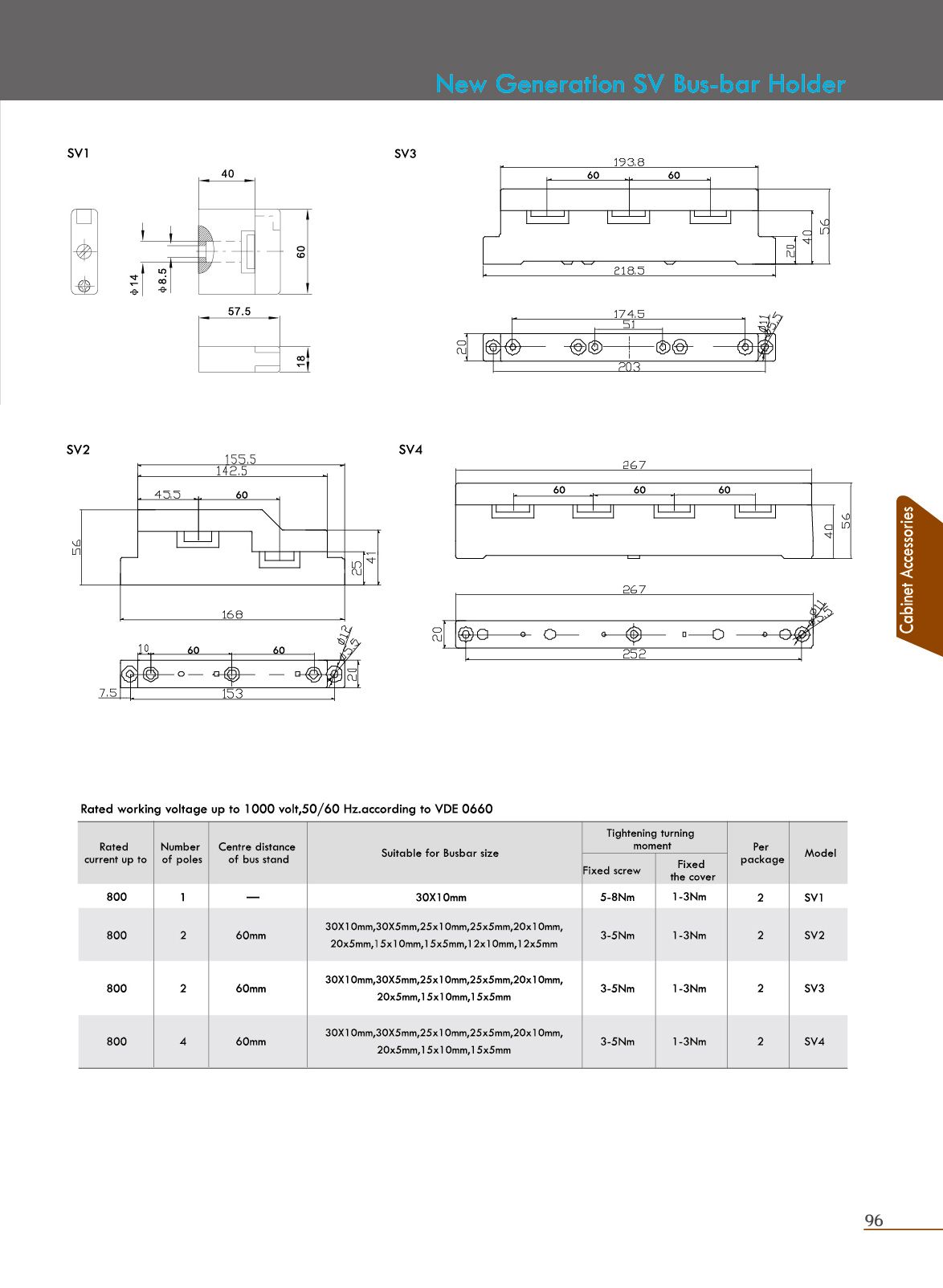

Rated current upto	Number of poles	Centre distance of bus bar	suitable for bar size	Tightening turning moment		Per package	Model
				Fixed screw	fixed the cover
800	1	-	30*10mm	5-8Nm	1-3Nm	2	SV1
800	2	60mm	30*10mm,30*5mm,25*10mm,25*5mm, 20*10mm,20*5mm,20*10mm,15*10mm, 15*5mm, 12*10mm,12*5mm	3-5Nm	1-3Nm	2	SV2
800	3	60mm	30*10mm, 30*5mm, 25*10mm,25*5mm, 20*10mm,20*5mm, 15*10mm, 15*5mm	3-5Nm	1-3Nm	2	SV3
800	4	60mm	30*20mm,30*5mm,25*10mm,25*5mm, 20*10mm, 20*5mm, 15*10mm,15*5mm	3-5Nm	1-3Nm	2	SV4
