Industrial Selective Warehouse Storage Pallet Rack
| Price: | US $ 150/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | UN-PR1614 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finish: | Powder Coating |
| Adjustable: | 50-75mm Per Pitch |
| Color: | Yellow/Grey/Blue/Orange |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Weight: | 150-500kg |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description
Selective Warehouse Pallet RackDescription:
Beam rack,we also called them pallet rack.It composed by beams and uprights.Pallet Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Below is some infomation you should get..
| 1. | Feature | A. Pallets can be located, accessed and moved individually. B. Rapid handling of almost all types of pallet used goods. C. Infinitely adjustable and offering a wide range of options and components to accommodate specific needs. D. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. E. Strength and rigidity prevents compression damage to goods. F. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| 2. | Loading capacity & Specification | A. Loading capacity: 500-4000 kgs UDL/layer. B. Height: 1000-9000mm C. Depth: 400-1500mm D. Length: 1500-3300mm E. Special sizes also available to specific storage needs |
| 3. | Parts | A. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. B. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., C.Adjusted by 50-75mm pitch D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components |
| 4. | Material | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China. |
| 5. | Finish | High-quality Powder Coatin |
| 6. | Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
| 7. | SGS test | Union's racking can be tested by international authority test organization, most of our customers like to be tested by it. It is also a trend of it in the future |
Pictures

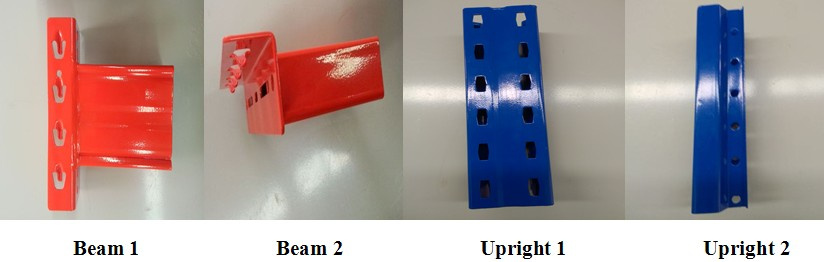

Beams and uprights

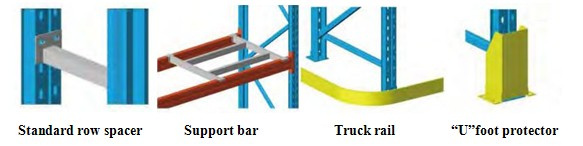

Parts of racking
Services
We can offer CAD design service for customer for free charge and give customer technical support
Kindly provide information for quick quotation
- Drawing of racking (if available)
- Dimension of your warehouse (Length x Width x Clear height mm)
- Pallet Size (W*D*H) & loading weight
- How many layers and bays
- The color you want
Please feel free to contact us if you are intersted in !
We kindly welcome clients from all over the world to contact us.
We will work hard and do our best to serve our customers.
Give us a chance to be your provider, we guarantee you'll be pleased with our performance
Jiangsu Union Logistics System Engineering Co., Ltd. Is a specialized designer and manufacturer of logistics systems, including racks, logistics systems, and multi-layer warehousing systems. Besides, Union also provides warehouse storage solutions for our clients.
Union possesses a professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology and perfect quality-guarantee system. We have ability to supply large quantity of products which amounts to about 3, 000MT per month. Moreover, our products have been widely used in large companies, Our sales network covers 28 provinces and regions in China, and our overseas market includes North America, Southeast Asia and West Europe. We have several distributors in Europe and the US.
