Prod Model: |
PR-03 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
ISO9001&As4084 |
Surface Treatment: |
Powder Coating or Galvanizing |
Color: |
Customized(Ral Colors) |
Material Specification: |
Q235 Cold Rolled Stell |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Adjustable |
Closed: |
Open |
Development: |
Conventional |
Serviceability: |
Common Use |
Height: |
up to 12m |
Weight: |
up to 24, 000 Kgs |
Product Description

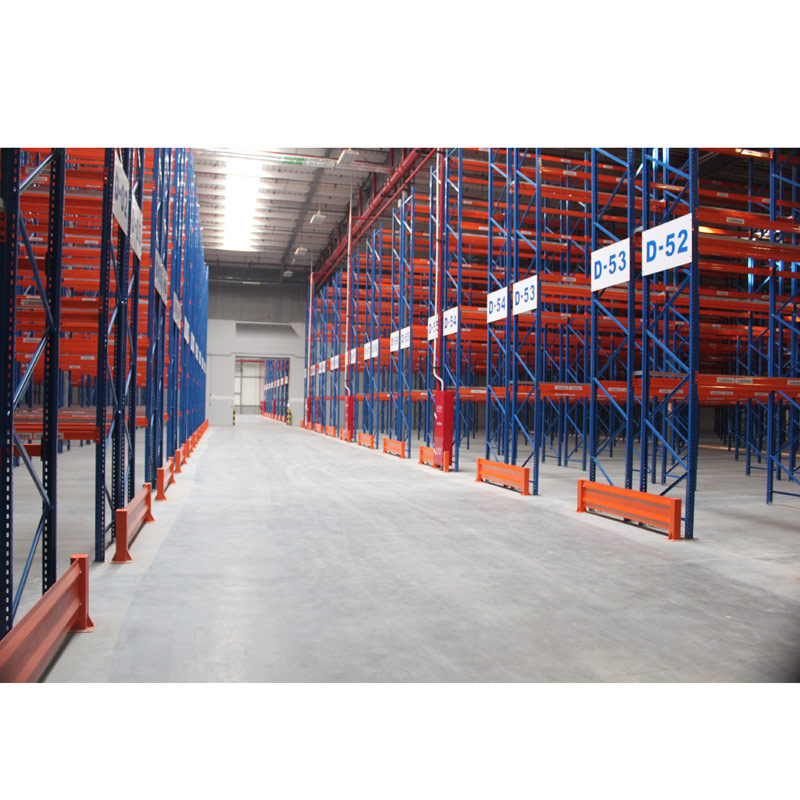

Industrial Storage Warehouse Q235 Steel Pallet Racking
Sin-Sino Pallet Rack is designed and manufacturered to Australian Standard -Steel Storage Racking AS4084-2012.
Pallet Rack is one of the most widely used pallet racking systems. Designed for strength, durability and ease of assembly, the system comprises a comprehensive choice of frames and pallet support beams which are precisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectively.
Features:
1. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
2. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.
Specification:
Specifications of Upright |
Item | Height(mm) | Width(mm) | Thickness(mm) |
1 | 55 | 55 | 1.5 |
2 | 55 | 55 | 1.8 |
3 | 55 | 50 | 1.5 |
4 | 55 | 50 | 1.8 |
5 | 55 | 54 | 1.5 |
6 | 55 | 54 | 1.8 |
7 | 75 | 63 | 1.5 |
8 | 75 | 63 | 1.8 |
9 | 75 | 63 | 2.0 |
10 | 75 | 68 | 1.5 |
11 | 75 | 68 | 1.8 |
12 | 75 | 68 | 2.0 |
13 | 80 | 60 | 1.8 |
14 | 80 | 60 | 2.0 |
15 | 90 | 67 | 1.5 |
16 | 90 | 67 | 1.8 |
17 | 90 | 67 | 2.0 |
18 | 100 | 67 | 1.5 |
19 | 100 | 67 | 1.8 |
20 | 100 | 67 | 2.0 |
21 | 100 | 95 | 2.0 |
22 | 100 | 95 | 2.3 |
23 | 100 | 95 | 2.5 |
24 | 120 | 100 | 2.5 |
25 | 120 | 100 | 2.75 |
26 | 120 | 100 | 3.0 |
Specifications of Beam |
Style | Item | Height(mm) | Width(mm) | Thickness(mm) |
P Style Step Beam | 1 | 50 | 30 | 1.5 |
2 | 60 | 40 | 1.5 |
3 | 80 | 50 | 1.5 |
4 | 110 | 50 | 2.5 |
RHS Beam | 5 | 50 | 30 | 1.5 |
6 | 60 | 40 | 1.5 |
7 | 80 | 40 | 1.5 |
8 | 80 | 40 | 2 |
Box Beam | 9 | 80 | 45 | 1.5 |
10 | 80 | 50 | 1.5 |
11 | 90 | 45 | 1.5 |
12 | 90 | 50 | 1.5 |
13 | 100 | 45 | 1.5 |
14 | 100 | 50 | 1.5 |
15 | 110 | 45 | 1.5 |
16 | 110 | 50 | 1.5 |
17 | 120 | 45 | 1.5 |
18 | 120 | 50 | 1.5 |
19 | 140 | 45 | 1.5 |
20 | 140 | 50 | 1.5 |
21 | 160 | 45 | 1.5 |
22 | 160 | 50 | 1.5 |
Frequently Asked Question
What makes you different with others?
1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !
2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days. The delivery time of the special products is according to the time of setting up of the tooling.
3.What is the term of payment?
1) T/T payment.
2) LC
4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by express.
For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity? (No mimimum limit for our proudction, but to keep the most economical shipping costs as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
AS4084 Certificate & ISO9001
