Industrial Warehouse Heavy Duty Storage Arm Cantilever Rack
| Price: | US $ 1000-9000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | CSTR01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Cantilever Rack |
| Material: | Steel and Reinforced Concrete |
| Structure: | Rack |
| Mobility: | Mobile |
| Height: | 0-5m |
| Weight: | 500kg |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description

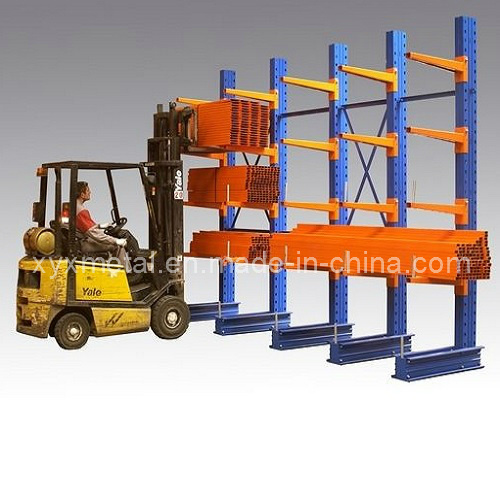

Cantilever rack which also called arm rack, is ideal for loads that require no obstruction at the pick face, so that bulky and awkwardly sized or shaped products can be safely stored and accessed.This type of racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas. Items best suited to such a system include furniture, building materials, piping, rolls, appliances, and flooring. You can fit this racking system to your facility by adjusting the shelf height, ensuring that the maximum amount of vertical storage space is maintained. Moreover, the support arms can vary in depth and capacity depending on the type of load. Open rows allow not only secure load support but also easy access - safety, flexibility and selectivity are all maintained.
The cantilever rack has specific advantages for the storage of the strip type cargoes, such as tubing and plate, etc. According to the carrying capacity, it can be divided into single side cantilever rack and double side cantilever rack according to the structure.
Pls provide the following for a quick quotation:
1. Length, width, height of one rack unit.
2. Loading capactiy per layer.
3. How many layers.
4. Warehouse drawing if you can.
| 1. Features: | Pallets can be located, accessed and moved individually. |
| Rapid handling of almost all types of palletised goods. | |
| Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. | |
| Maximizes space use in any warehouse configuration while retaining optimum product accessibility. | |
| Strength and rigidity prevents compression damage to goods. | |
| Bottom level of pallets can be stored on the floor, lowering structure costs. | |
| 2. Load Capacity & Dimension: | Loading capacity: 500-1,000 kgs UDL/arm beam. |
| Height: 1,000-11,000mm | |
| Depth: 400-1,500mm | |
| Length: 1,500-3,300mm | |
| Specail sizes also avaiable to specific storage needs. | |
| 3. Main Parts Specs: | Upright section: 80*60mm, 90*60mm, 100*60mm, 90X70mm, 105X70mm, 120X90mm, etc. |
| Box beams section: 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
| Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. | |
| 4. Material: | High-quality steel,Q235B(equivalent to S235JR and Gr.D) |
| 5. Finish: | High-quality Powder Coating Finish. |
| 6. Packing detial: | Uprights and beams' both end bound with cardboard, then outside bound tightenly with plastic belts, other small parts packing with carton. |
| 7. Quick Delivery. | Within 20 workdays for ordinary order quantity. |
| 8. Certification | SGS, CE and ISO9001 |
