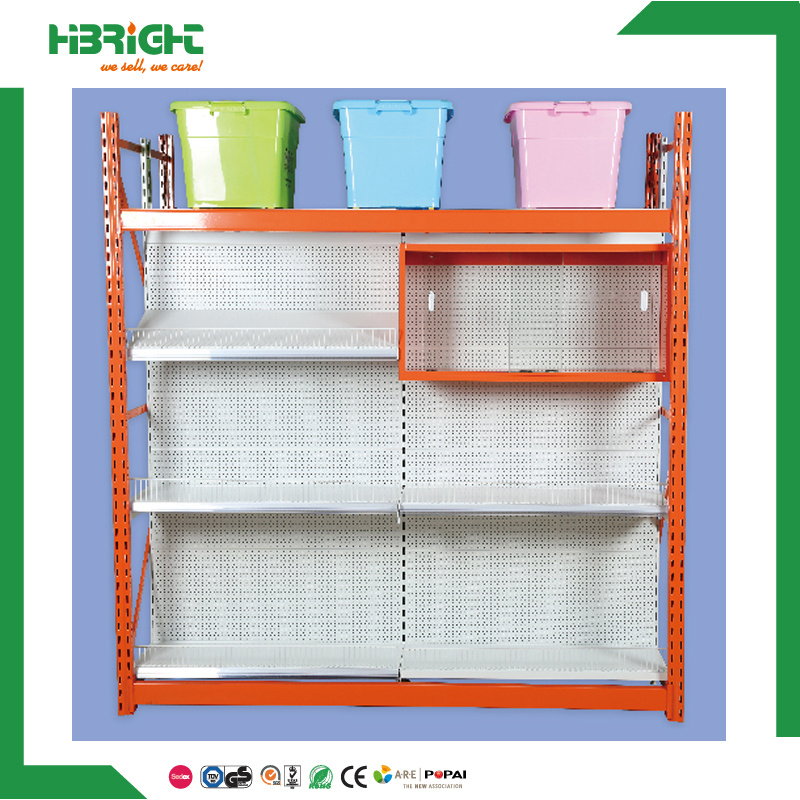

Integrated Hardware Rack Warehouse Rack

Prod Model:	HBE-SR-5
Color:	Can Be as Request
OEM:	Customized
Size:	Always Keep Stock in Warehouse
Finish:	Powder Coating
Design:	Pallet Racking System
Colour:	Pantone Color Available
Layer:	5 Layer Warehouse Rack
De:	Orange+Blue
Sample:	Welcome
Logo:	Can Print
Material:	Steel
Structure:	Layer Frame
Mobility:	Adjustable
Height:	>15m
Weight:	150-500kg
Closed:	Open
Development:	New Type
Serviceability:	Common Use

Product Description

Description:

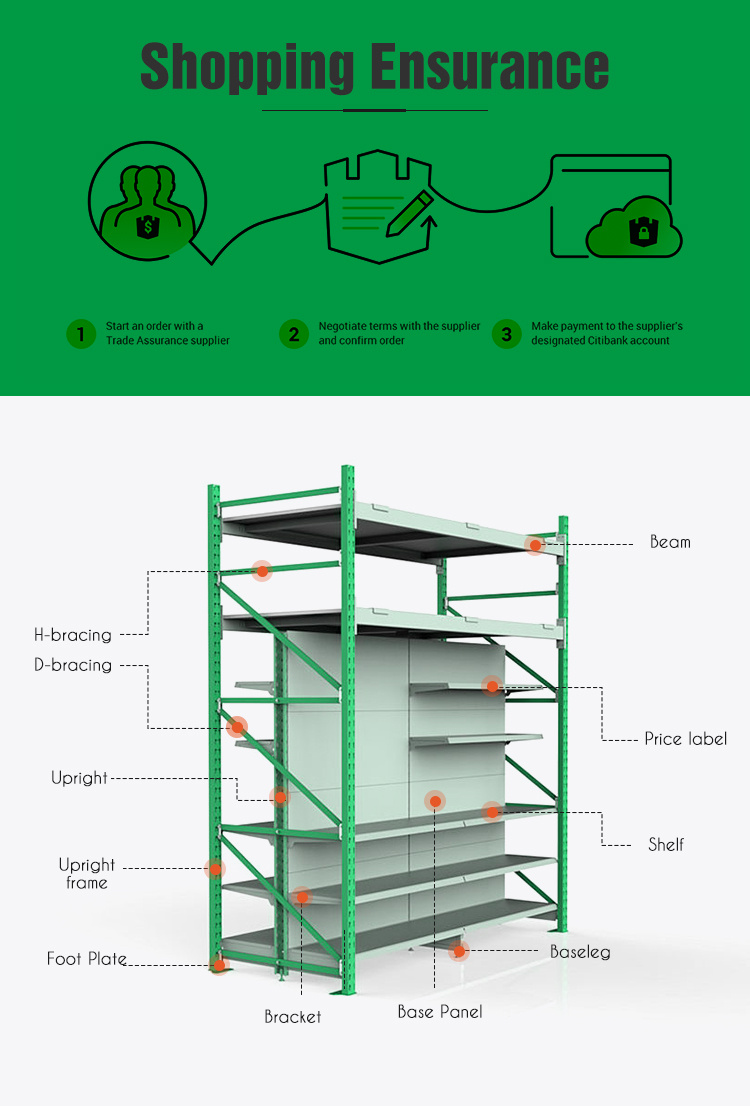

Pallet Rack consists of upright frame, beam, pallet support and other standard components. H-bracing and D-bracing connect with upright part by self-lock bolts; Can effectively prevent racking from losing balance caused by the release of bolts. The beam can be easily adjusted each 3" (76.2mm) on the upright to meet your variety loading height requirements.

Our warehosue pallet storage rack is easily utilized with just standard fork- and hand-trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs.

Rack Features:

Versatility and flexibility to meet any storage needs:

1. Heights from 1800 mm to 5000 mm

2. Frame widths from 400 mm to 1500 mm

3. Shelf loading capacity from 250 to 600 Kg per level

4. Maximum load per bay up to 5000 Kg

5. Uprights available inΦ 1.5 to 2.0 mm steel

6. Choice of steel or timber shelves (for steel, powder-coating or zinc)

Don't know how to organise your storage? Need help and advice designing your new warehouse layout? Contact us for help and advice by mail.

1. Features:	Pallets can be located, accessed and moved individually. Rapid handling of almost all types of palletised goods. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs.
2. Load Capacity & Dimension:	Loading capacity: 500-4,000 kgs UDL/beam level. Height: 1,000-11,000mm Depth: 400-1,500mm Length: 1,500-3,300mm Specail sizes also avaiable to specific storage needs.

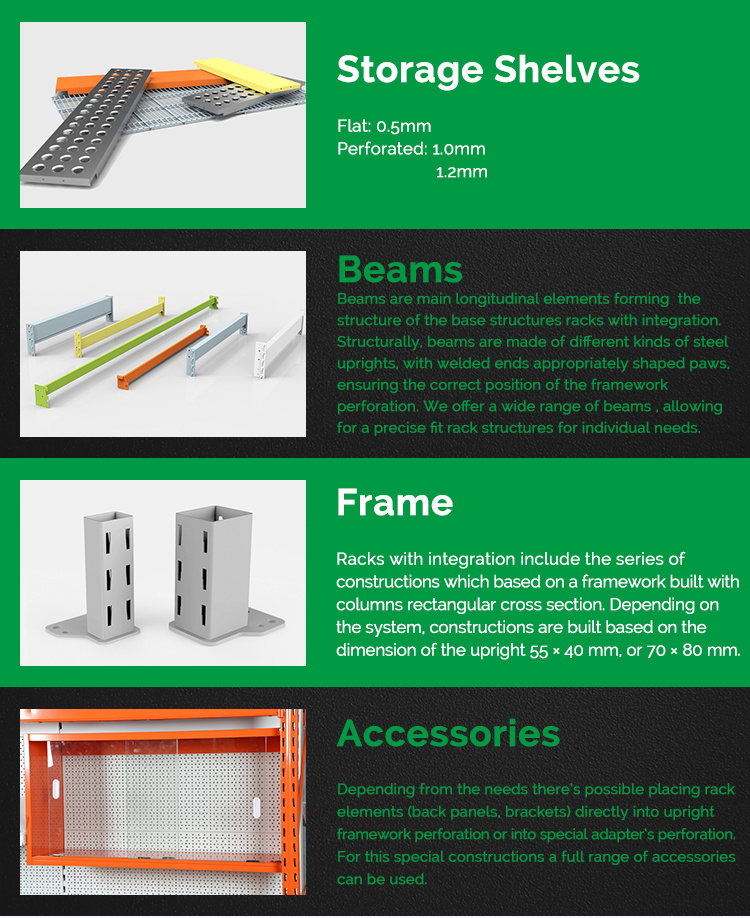

3. Main Parts Specs:	Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Material:	High-quality steel
5. Finish:	High-quality Powder Coating Finish.
6. Quick Delivery .	Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
