Iron Wire Mesh Welded Gabion Basket
| Price: | US $ 30/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 800*600*650 1000*800*850 1200*1000*900 |
|---|---|
| Finish: | Zinc/Chrome/Powder Coat |
| OEM: | Yes |
| Application: | Bulk Materials Handling, Transport and Storage, Es |
| Capacity: | 1t-3t |
| Wheel: | with or Without |
| Wire Diamete: | 4~10 mm |
| MOQ: | 1 |
| Payment: | T/T, LC .Western Union Paypal |
| Delivery Terms: | with 10-15 Working Days |
| Type: | Foldable Storage Cage |
| Mesh Spacing: | 50mm?รก50mm |
| Wire Diameter: | 5mm |
| Feet Height: | 100mm |
Product Description
iron wire mesh welded gabion basket
Our company can offer various types storage cage, they are widely used in raw materials, semi finished temporary storage, distribution and other logistics during the operation, either as a three-dimensional handling, storage, transport carrier, use reusable containers can be used as material for mechanical handling, lower costs ,Improve efficiency.
A. Product Instructions
1.Material: Low carbon steel
2.Surface treatment: electro galvanized, hot dipped galvanized
3.Loading capacity:1000-3000kg
4. Available in 5 to 14mm galvanized welded mesh

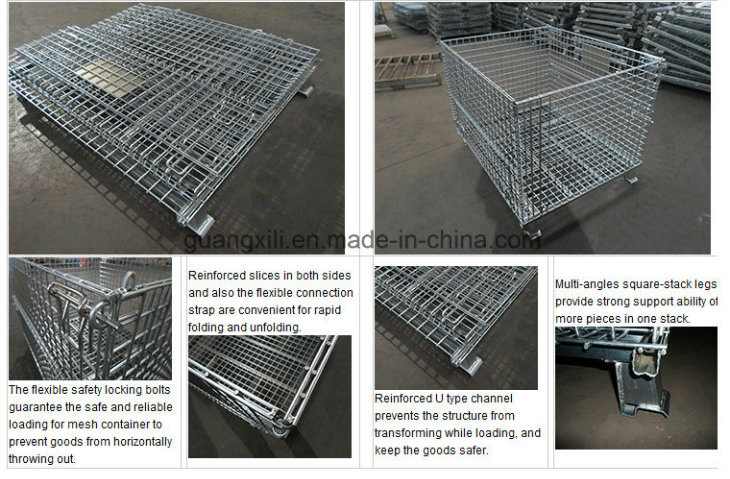

5. Legs are wrapped and welded around the based-no edges to scratch floors or people
6. Double wire reinforcements at load-bearing surface and top edges
7. Base inside walls protect content from damage
8. Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness
8.Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various specifications according to customer's requirements
9. Offers overall arrangement for all kinds of markets and warehouses .
| Outer Size(mm) | Wire Diameter | Volume(m2) | Mesh Spacing | Clearance Size(mm) | Load Bearing(kg) | ||||
| L | W | H | L | W | H | ||||
| 800 | 600 | 650 | 6 | 0.22 | 50*50 | 760 | 570 | 500 | 800 |
| 800 | 600 | 650 | 5.5 | 0.22 | 50*50 | 760 | 570 | 500 | 700 |
| 1000 | 800 | 850 | 6 | 0.51 | 50*50 | 960 | 770 | 700 | 1200 |
| 1200 | 1000 | 900 | 6 | 0.84 | 50*50 | 1160 | 970 | 750 | 1500 |
| 1000 | 800 | 500 | 6.4 | 0.28 | 50*50 | 960 | 770 | 360 | 1000 |
| 1200 | 1000 | 900 | 6.4 | 0.84 | 50*50 | 1160 | 970 | 750 | 2000 |
| 800 | 500 | 540 | 5 | 0.16 | 25*50 | 760 | 470 | 400 | 500 |
| 1000 | 800 | 850 | 5 | 0.51 | 50*50 | 960 | 770 | 700 | 500 |
| 1000 | 800 | 850 | 6.4 | 0.51 | 50*100 | 960 | 770 | 700 | 1000 |
| 1000 | 800 | 850 | 6 | 0.51 | 50*100 | 960 | 770 | 700 | 1000 |
| 1200 | 1000 | 890 | 6.4 | 0.84 | 50*100 | 1160 | 970 | 750 | 1000 |
| 1200 | 1000 | 890 | 6 | 0.84 | 50*100 | 1160 | 970 | 750 | 1000 |

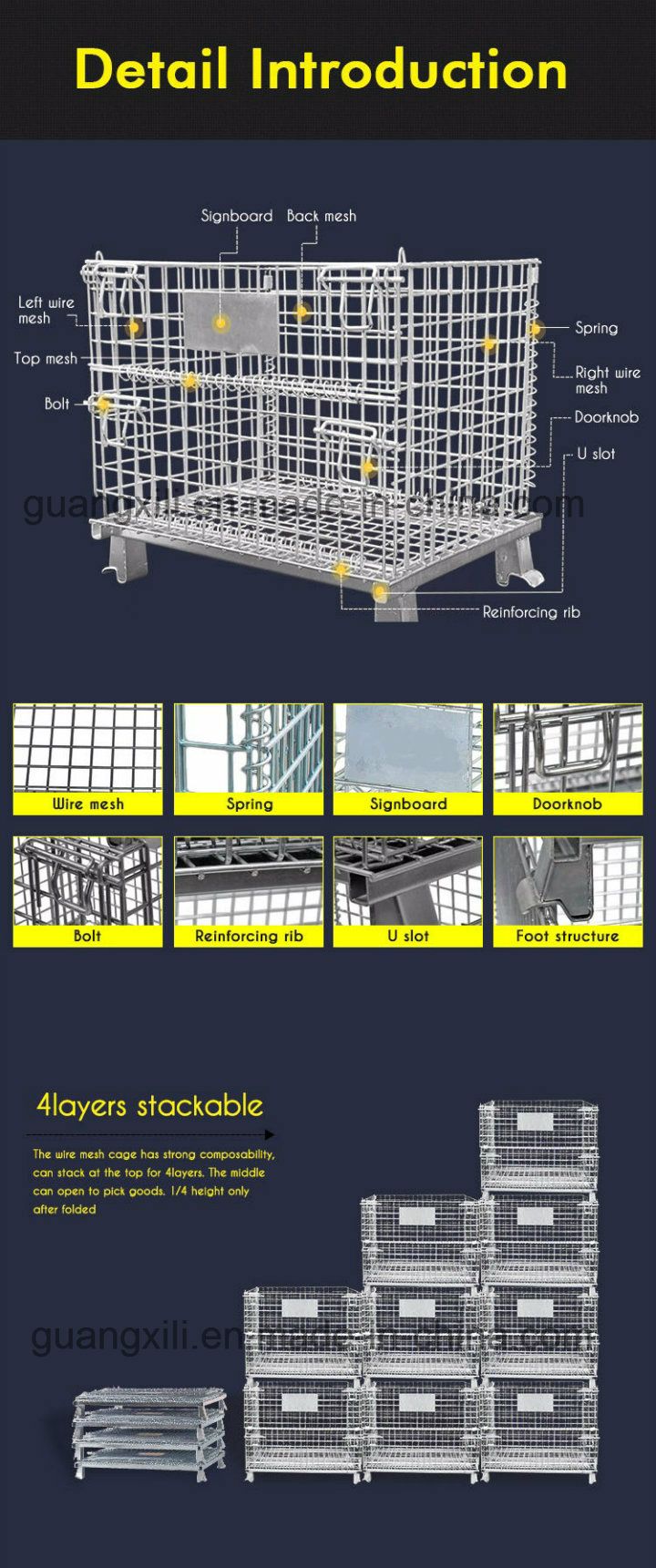

B. Product Details
C. Advantages
1. High quality steel hardened by cold-welded, high-strength, high load capacity.
2. Unified specification, fixed capacity, easy to stock inventory.
3. Adopt international standards, support the use of container, effectively improve space utilization.
4. It can be stacked four high with each other, to achieve three-dimensional storage.
5. Galvanized surface treatment, do not pollute the environment.
6. Folding structure, low cost recovery, is an alternative to wooden crates.
7. Can install wheel at the bottom, extremely convenient to move.
D. Applications
•Supermarket shelf, supermarket equipments (cashier desk,fruit and vegetable shelf, promotion cart, shopping cart, shopping basket, etc)
• Storage rack (angle slotted steel, heavy/medium/light duty storage rack), warehouse equipments
• Glass/wooden/titanium-alloy counter/cabinet, metal shelf, magazine rack
• Exhibition shelf, exhibition facilities, etc

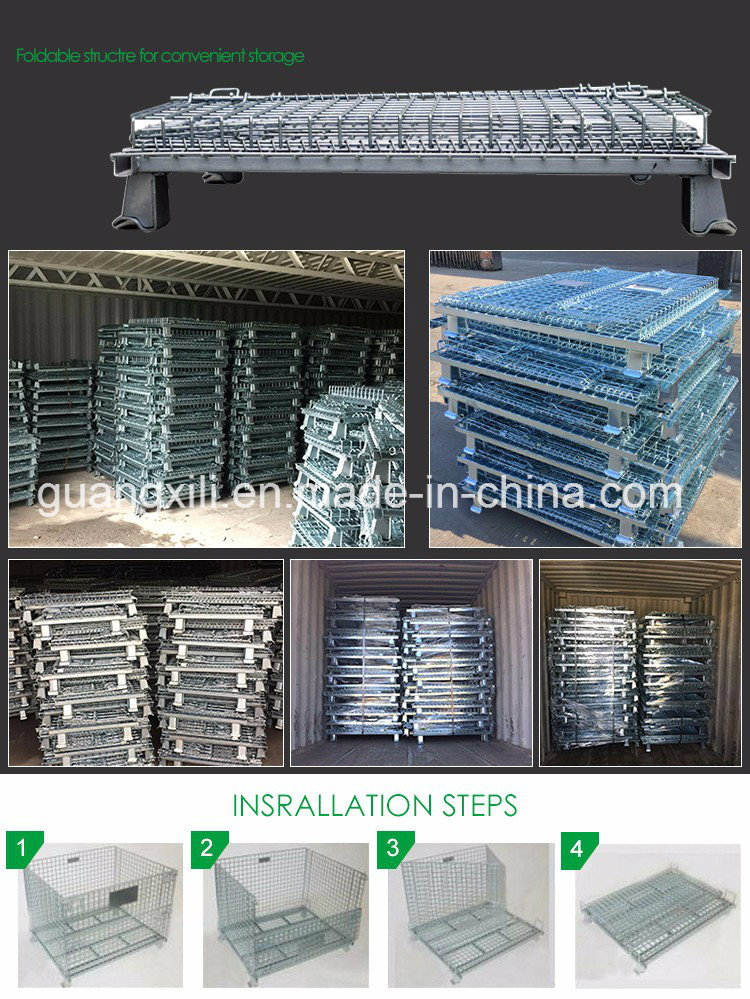

E. Package&Delivery
Plastic banding + Stretch film wrapped,palletized for easy loading and unloading with standard forklift truck or pallet jack
1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements
FAQ
1.Q:Can according to customer design and production of products?
A: Sure, we have very rich experience in customizing . there are professional engineers help design the most suitable product for you
2.Q:I don't have drawing or picture available for custom products, could you design it?
A:Yes,we can make the best suitable design for you, but do need to know the details-such as
3. Q:I would like to have my own design products and I am a small wholesaler, do you accept small order?
A:Yes,we can go with your custom design, no matter small or big qty, however, please understand the cost will be different.
4. Q: How do I install ?
A:We provide detailed install instruction for every type . If needed, we can also ask engineers to teach you for free.
5. Q: How does your company do regarding quality control?
A:We have own technology team, each batch of goods will be strictly controlled, and issue inspection reports. the company's internal will have quality regulation, to ensure that every batch of products qualified and best quality.
6. Q:How about the warranty period ?
A:Under normally usage, the warranty period is within 12 months.
7. Q:What's the MOQ of each model ?
A:1 unit is acceptable and price varies from different quantities.
8.Q:What is your average production lead time?
A:15-30 Working days against formal order and deposit.
9.Q :May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
10.Q :How can I get your quick quotation for wire mesh container?
A:As usual, you should provide us the following information:
A. External size or Internal size(L*W*H)
B. Wire Diameter
C. Mesh Spacing
D. Loading Capacity
