Large Stackable Metal Warehouse Tire Racking
| Price: | US $ 50-70/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | 6060 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Company Type: | China Professional Manufacturer |
| Brand: | Hml |
| Product Warranty: | 1 Year |
| Exterior Dimension: | 1524mm*1524mm*1524mm |
| Loading Capacity: | 1100kg |
| Load In 40hq: | 280sets |
| Remark: | Customized and OEM Support |
| Finish: | Zinc Plated/ Hot DIP Galvanized/Powder Coating |
| Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
| Available Accessories: | Forklift Guide, Bottom Wire Mesh, etc. |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Mobile |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1100kg |
Product Description

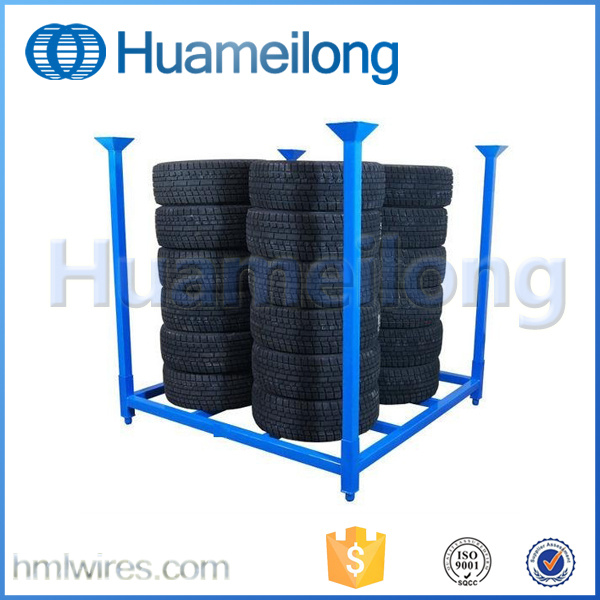

Large Stackable Metal Warehouse Tire RackingFor passenger and light tires, hold 4 or 5 stacks of 7 or 8 tires, 4 removable posts
Specifications of tire rack
| Model No. | Exterior Dimension | Tire capacity | Loading Capacity | Max.Stacked | Max. Stacked |
| LxWxH | pcs | kg | open | closed | |
| HML-6060 | 60"x60"x60" | 24 to 32 | 1100 kg | 4 | 20 |
| HML-7272WM | 72"x72"x72" | 42 to 63 | 1100 kg | 4 | 20 |
| HML-8080 | 80"x80"x60" | 20 | 1100 kg | 4 | 20 |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistics, tyre, auto industry | ||||
| Finish | Powder coating | ||||
| Remark | Costomized or OEM support | ||||

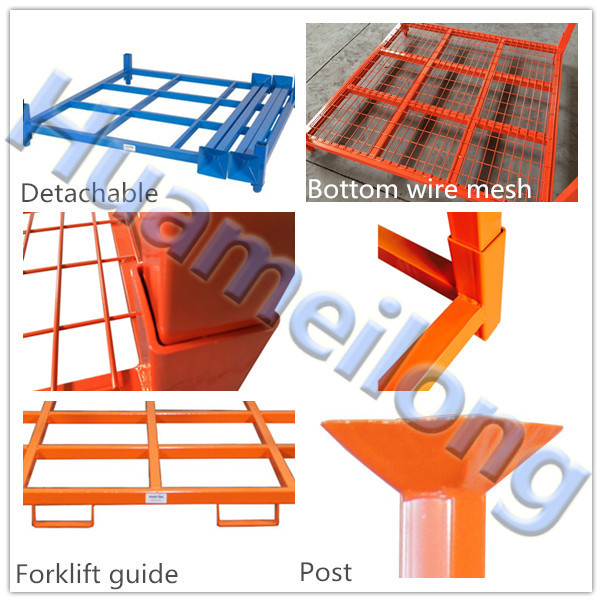

| Product features | 1. Portable modular racks --easy to stack and move around with the fork truck --rearrange floor space quickly and simply than pallet racking 2. Removable posts --reduce shipping costs, save space during slower periods --regain 80% storage space when folded 3.Optional bottom wire mesh & forklift guide | ||||

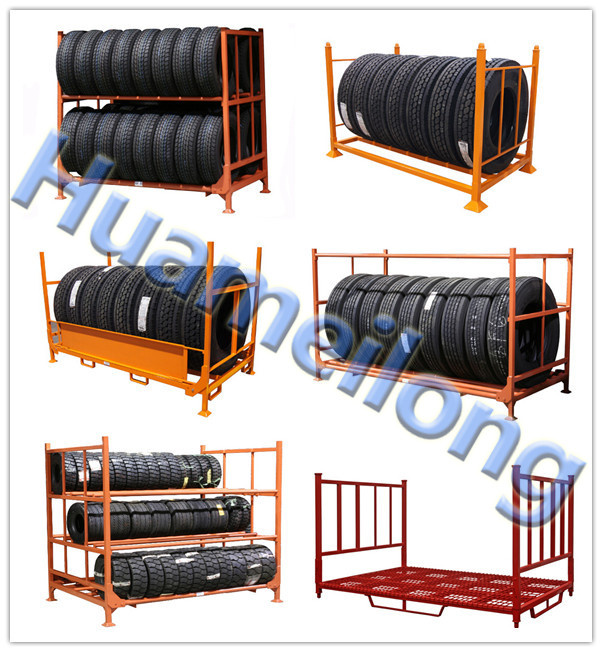

Other designs of tire rack
The tire rack can be stackable, save space, make your warehouse clean and tidy.
The packing is used Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack.
Company Introduction
FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
-- A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder (indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
--Yes, we can make the best suitable design for you but do need to know the details,such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift handling while stacking/unstacking B) Overloading is prohibited C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
.
