Light Duty Shelving Supported Storage Mezzanine System/Storage Rack
| Price: | US $ 20-80/Square Meter |
|---|---|
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T |
| Prod Model: | GL-042 |
|---|---|
| Certification: | ISO9001/ISO14001/ISO18001 |
| MOQ: | 100 PCS |
| HS Code: | 73089000 |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | Sizes Can Be Customized |
| Weight: | 500-4000kg/Level |
Product Description
light duty shelving supported storage mezzaninesystem/Storage Rack

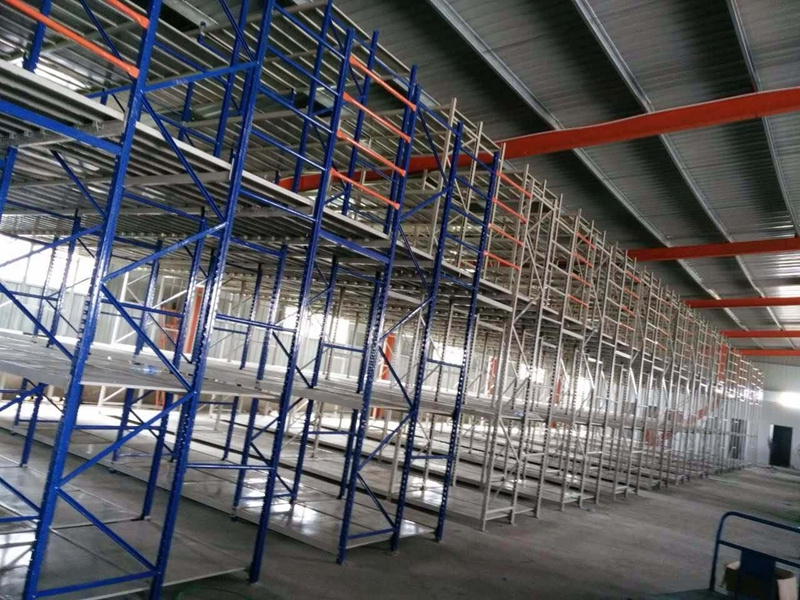

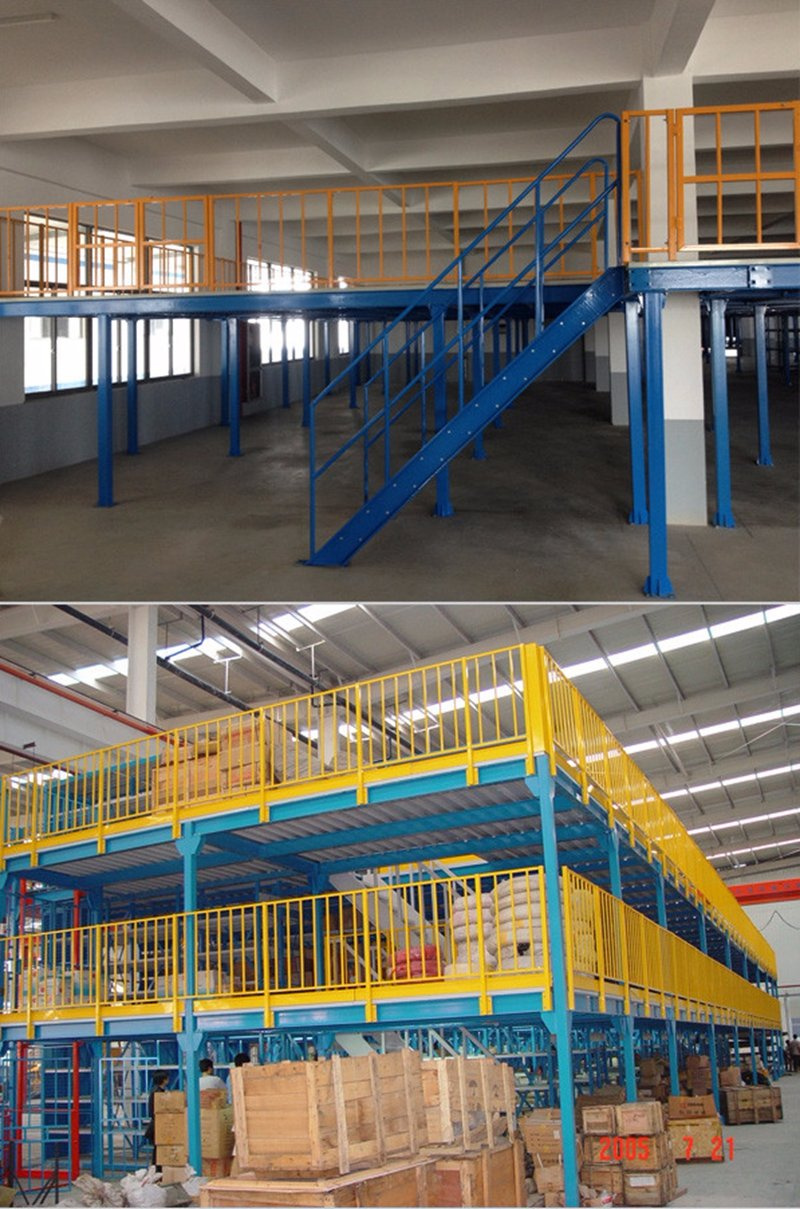

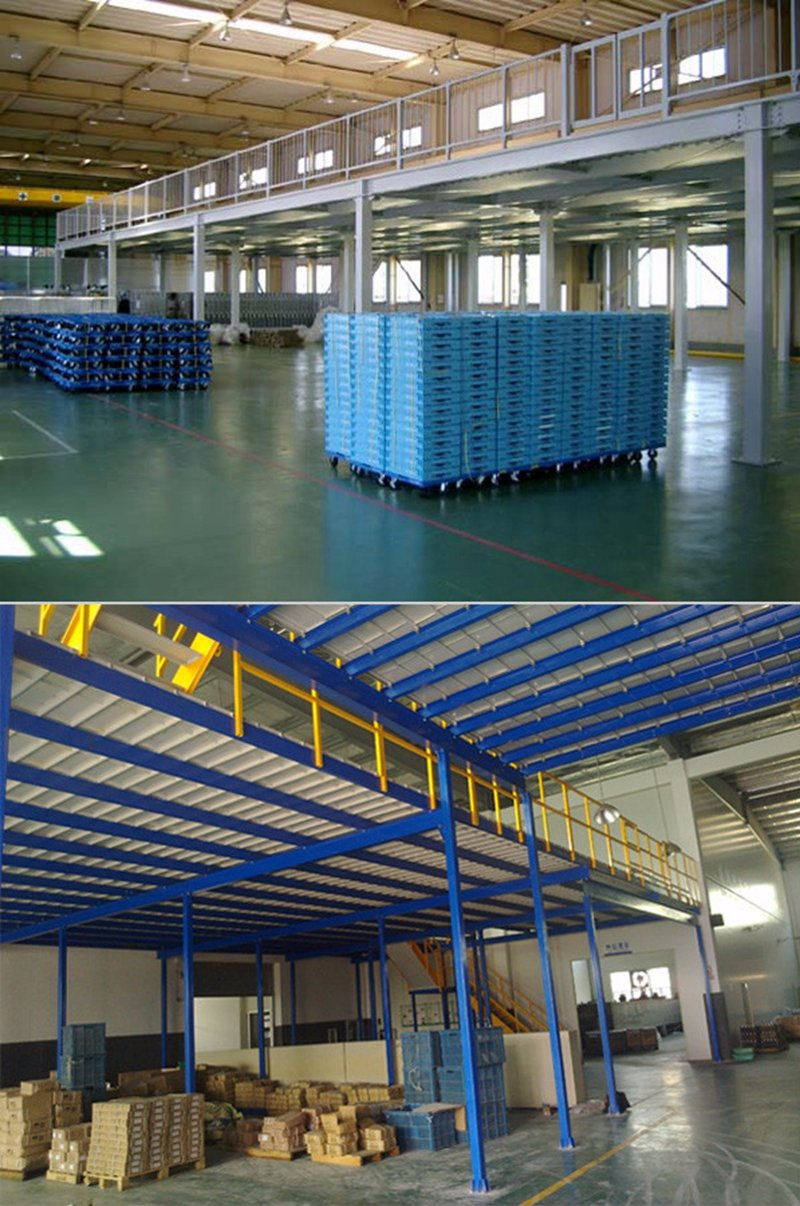

A brief introduction to the mezzanine racks:The attic shelf system usually uses a medium-duty shelf or heavy duty shelf as main body support, plus the floor panel, which determines the shelf according to the total load weight of the rack unit. The floor slab is usually used for cold rolled steel floor, decorative steel floor or steel grid floor. In recent years, cold-rolled steel floor has been widely used. It has the advantages of strong bearing capacity, good integrity, good load uniformity, high accuracy, smooth surface and easy locking. There are many kinds of options, and it is easy to match lighting system, and access and management are more convenient.
Unit shelf load per level is usually less than 500kg. Floor spacing is usually 2.2m ~ 2.7m. Top shelf height is generally about 2m, give full consideration to the convenience of staff operations.
Mezzanine Racks Function:
1. The storage cost of the warehouse will double down with the increase of the storage area.
2. The attic warehouse shelf is suitable for storing many kinds of goods. The storage is very flexible, and the selection and access are very convenient. It promotes the storage management to simplify and improve the storage efficiency.
3. The attic warehouse shelf can elevate the height of the shelf. It can be customized according to the height of the warehouse and the requirements of the user. Make full use of the height of storage and make better use of storage space. Now the land and rent are more expensive, resulting in increased storage costs of enterprises. The characteristic of the attic warehouse shelf just solves the problem of the enterprise.
4. The attic storehouse floor is paved with special floor slab. The floor underneath has a vertical and horizontal bearing, which has the characteristics of strong loading capacity, good integrity, uniform loading, smooth surface, easy locking and so on. People can pull a manual forklift on the floor to facilitate storage operation.
5. Attic-style warehouse shelves full consideration of humanized logistics. Can be designed with stairs and cargo lift in and out. All-composite structure is easy to install and disassemble. Fully flexible design based on the field. Three-dimensional sense of strong, neat arrangement with colorful, to the warehouse added a landscape, the atmosphere is active.
6. The attic warehouse shelf is a floor slab that uses a shelf column for floor support, steel or wood structure. The floor is smooth and suitable for the enterprises with high storage and large access. According to different enterprises and different types of warehousing mode, the design should be suitable for various enterprises' warehousing modes, and play a certain role in reducing management costs of warehousing enterprises.

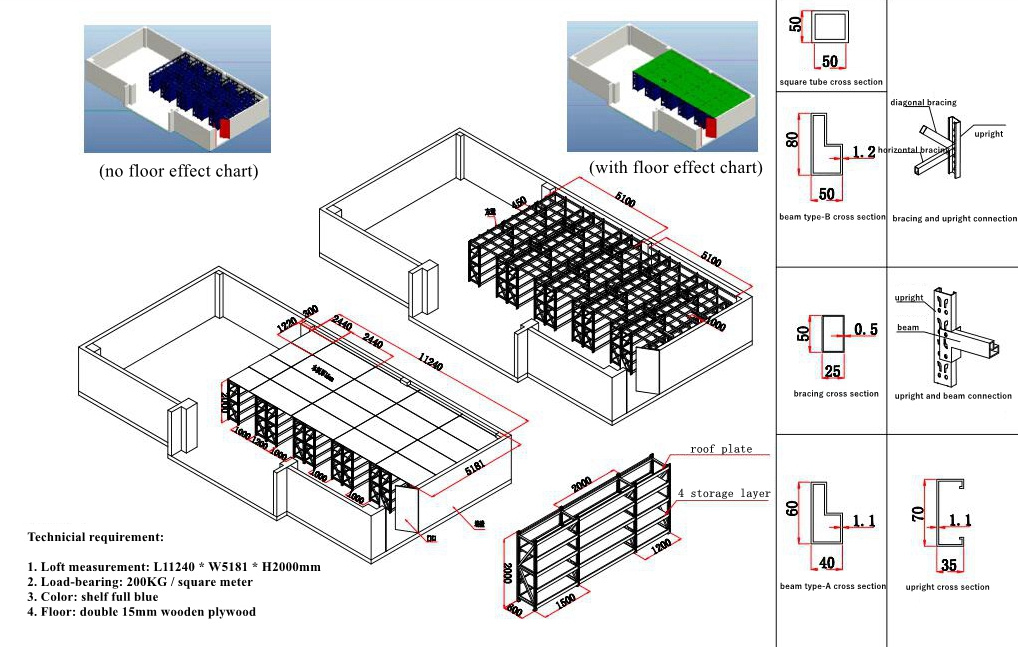

Technical parameters, structure, size:

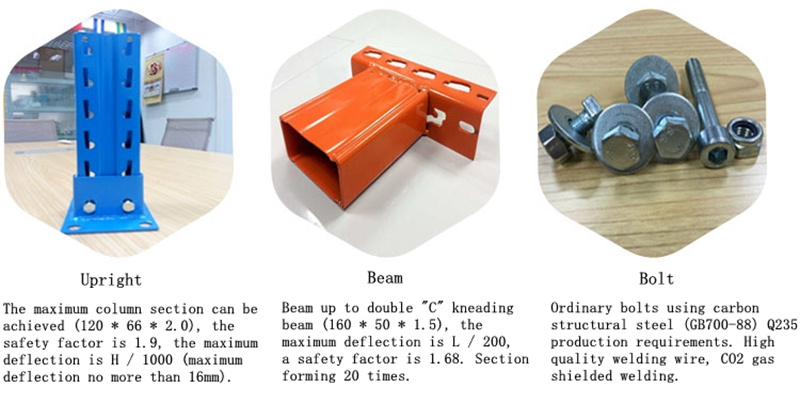

1. Generally the loft is divided into shelf parts and attic parts. Shelf parts generally by the column, beams, laminates and other components. Attic parts in general by the floor beams, floors, railings, stairs, slides, lifting platform (optional), edging, fasteners and other components.
2. Shelf manufacturing precision: parts take punching mechanical punching positioning to ensure consistency.

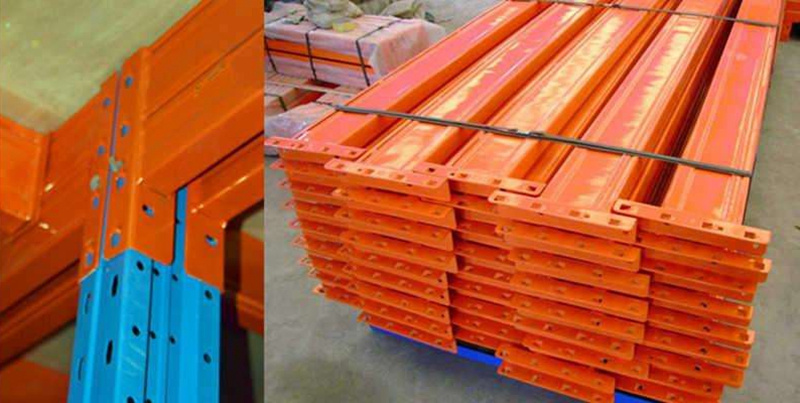

3. Shelf structure features: the use of mechanical punching so that the column, the beam to inverted eight-character hole structure lock. With easy assembly and disassembly. There is no need for strength. The principle of self tight locking of pressure produced by placing the goods is adopted.
4. Safety performance: the column is connected with the crossbeam. The stud and the column of the cross beam cooperate with the column. At the same time, the safety pin is inserted on the hole of the pawl, so as to ensure that it will not be collided with the external force and cause the shelf tilt to fail.
5. Shelf size and bearing requirements: according to your requirements.
The basic requirement of mezzanine racks design:
1. The size, weight and way of stacking of the goods;
2. Floor and shelf bearing requirements;
3. The building size of the storage area;
4. The clear height of the floor to the ground;
5. Goods in and out of position and requirement.
