Light Duty Storage Shelf Rack with Ce Certificate
| Price: | US $ 0.8-1.2kg |
|---|---|
| Min Order: | 500kg |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | IM313 |
|---|---|
| Height: 1510, 1830, 2135, 2440mm: | Can Be Customized According to The Load Capacity |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Weight: | 150-500kg |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description
Warehouse Storage Medium Duty Long Span Shelving
Step Beam/Wire Mash Grocery Store Long Span Shelving Racks System has special design, proper structure, and is easy for installing and dismantling without any screw thread. Direct access for the order picker at all time.
In this respect, long span shelving provides the best preconditions:
Flexible in operation, easily adjustable and easily configurable.
Step Beam/Wire Mash Grocery Store Long Span Shelving Racks System is particularly suitable for large volume, bulky good. Order picking by hand becomes easier, picking times are reduced.
Long span shelving is widely used in supermarket, store, and other enterprises.
| eatures: | 1) Color and size can be adjusted according to your requirements; 2) Ideal for large quantity and bulk operation, and pallet racks; 3) Surface treatment: Epoxy powder coated or Galvanized and color optional; 4) Easy to install and dismantle; 5) Available with light, medium, and heavy carrying capacities; 6) High quality and good appearance; 7) The most commonly used in all storage systems for palletized goods; 8) Compatible with most types of handling equipment, To achieve a variety of size and weight of the tray quick access; 9) each layer carrying up to 500-5000kg; 10) The reliable and efficient service before and after deal. |
| 2. Material: | High grade Q235B Steel |
| 3. Finish: | Powder Coated Finish or Galvanized |
| 4. Load Capacity & Dimension: | Loading capacity: 500-6000 kgs UDL/beam level. Height: 500-20000mm Depth: 400-1500mm Length: 1000-4000mm Special sizes also available to specific storage needs. |
| 5. Main Parts Specs: | 1) Uprights: 55*47*1.5-2.0mm 86*60*1.5-2.0mm 90*70*1.5-2.0mm 100*70*1.5-2.0mm. 2) Box beams: 80*50*1.5-2.0mm, 100*50*1.5-2.0mm, 120*50*1.5-2.0mm, 140*50*1.5-2.0mm, 160*50*1.5-2.0mm,etc. 3) Horizontal & diagonal bracing, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |

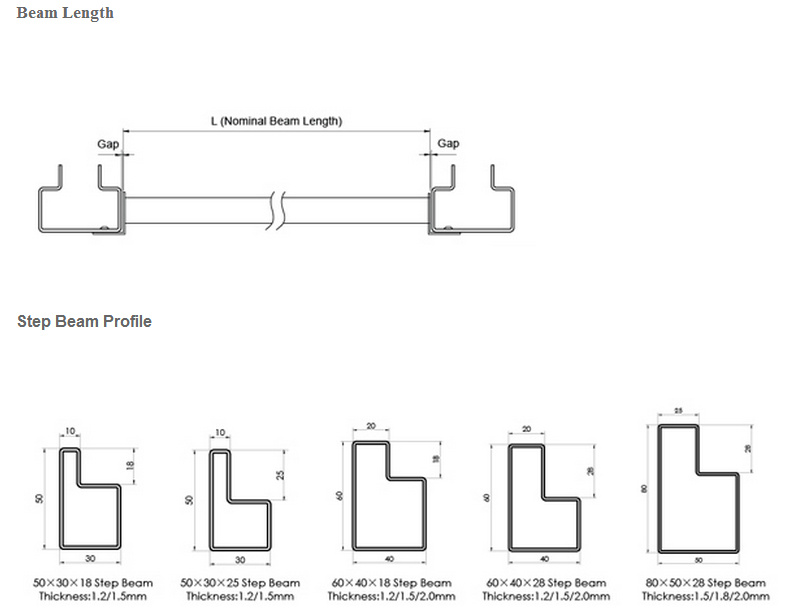

Beam
High load capacity up to 2000kg.
Lengths available: 1300/1500/1850/2250/2000/2300/2500/2700/3000
Boltless connection with 3 or 4 connector hooks.
A security pins per beam to prevent accidental dislodgement.
Frame
High load capacity up to 5,000kg.
Frames include all the elements needed for assembly: bracing, baseplate and nuts & bolts
Standard heights : From 1.5m to 6m
Adjusted by 25/50 mm pitch.
ICHO Storage is one of the most specialized manufacturer and solution designers of various storage systems, helps our customers increase sales, reduce costs and improve productivity.
As one of the fast developing storage racking company in China, Nanjing ICHO storage equipments Co., Ltd. Specializes in providing professional production of storage racks and workshop equipment. Storage racks involves various types of adjustable light, medium and heavy loading racks, multi-tier mezzanine racks, steel platform, drive in rack, automotive shelves, automatic stereo-warehouse (distribution center), mold shelves, cable shelves, and other nonstandard racks. Workshop equipment includes equipment for the production of motor vehicles, trays, box pallets, folding pots, wire mesh containers, stacking racks, logistical carts, etc.
With a factory area of 33, 000 square meters, construction area of 20, 000 square meters, more than 100 sets main production equipments, our production capacity can be 30, 000 ton per year. The whole process including design, purchase of raw materials, production, quality control, installation, after service, etc. Is complied strictly with ISO9001.
By maintaining in house manufacturing and quality control, clients benefit from being able to draw on ICHOs extensive experience in steel forming and fabrication techniques for the creation of custom designed storage solutions.
