Long Span Shelf Rack for Warehouse, Retail Shelving Systems

Feature:	Corrosion Protection
Export Markets:	Global
Material:	Steel
Structure:	Layer Frame
Mobility:	Adjustable
Weight:	150-500kg
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Height:	Customized

Product Description

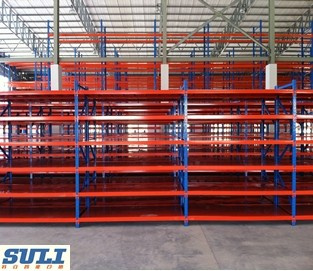

Heavy Duty Rack, Light Duty Rack, Long Span Shelving Rack

Long Span Shelving Rack is the perfect solution for storing Garment and Grocery, commonly 400-800kg/level. It is fast and easy to assemble, and uses a modular design with a bolt free lock-in system which requires no special tools, giving you maximum storage in minutes in your available space.

1. Features:
· Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
· Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.
· Fully adjustable shelf height.
· Very easy to install and dismantle.
· Rapid handling and direct access of almost all types of goods.
· Maximizes space use in any storeroom configuration while retaining optimum product accessibility.

2. Load Capacity & Dimension:
· Loading capacity: 200-800 kgs UDL/layer, bigger capacity available to special needs.
· Height: 1, 000-6, 000mm
· Depth: 400-1, 500mm
· Length: 1, 500-2, 700mm
· Special sizes also available to specific storage needs.

3. Main Parts Specs:
· Upright section: 55*47*1.5, 55*47*2.0, 80*60*1.5, 80*60*2.0mm, etc.
· Step beams section: 50*30*1.5-2.0, 60*40*1.5-2.0, 80*50*1.5-2.0, 110*50*2.0-2.5mm, etc.,
· Steel panels thickness: 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc.
· Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.

4. Material:
· High-quality steel from BAO Steel Co. Ltd, the largest steel manufacturer in China.

5. Finish:
· High-quality Powder Coating.

Services:
Our free services include consultations and sample CAD layouts of your proposed rack system. Don't hesitate to consider reviewing the racking systems on site or at our headquarters. Get the racking system you need at the best price guaranteed.

Main Parts  Specs:	1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.  2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0,       140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,  3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Material:	High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.
Finish:	High-quality Powder Coating Finish.
Quick Delivery	10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits.
