Longspan Industrial Warehouse Storage Medium Duty Rack
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | IRB |
|---|---|
| Finish: | Galvanized, Black Raw, Powder Coated |
| Steel Type: | Steel Q235/Q345 |
| Color: | Blue, Orange, Yellow, Red, Grey, Silver, etc. |
| Market: | Hot Sale in Australia, Us, Europe, etc. |
| Warranty: | 5 Years |
| Powder: | Epoxy Resin |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | up to 1,000 Kgs Udl/Level |
Product Description

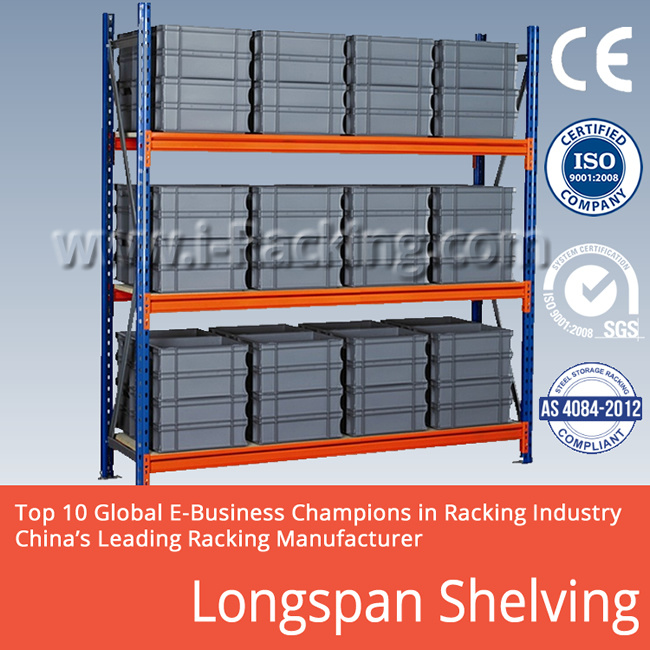

Longspan Industrial Warehouse Storage Medium Duty Rack
iRacking Longspan Shelving is a strong, durable, versatile and economical shelving system that looks good and minimises lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouses, retail, wholesale and commercial.
Features of Longspan Shelving:
- Only high-quality RAW STEEL, by largest steel factories in China, is used for our racking products.
- A big scale of output allows us in a good position to control lower product costs on a basis of same high quality level.
- A wide range of different racking types to suit different storage needs.
- Free but expert advice & proposed racking solutions for your kind reference.
- Quick delivery. Within 25 days for ordinary order quantity.

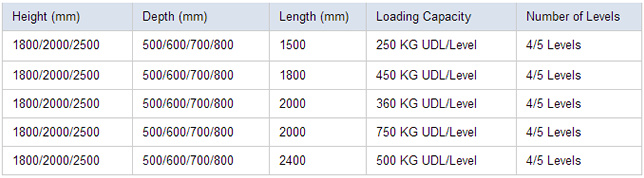

| Loading Capacity | 200-800 kg UDL/level as general, up to 1,000b kg UDL/level as special request |
| Racking Height | 1,800-3,000mm as general, up to 11,000mm as special request |
| Racking Depth | 500-800mm as general, up to 1,200mm as special request |
| Beam Length | 1,500-2,500mm as general, up to 3,000mm as special request |
| Racking Finish | Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame |
| Packing Details | Standard export seaworthy packing |
*UDL = uniformly distributed load

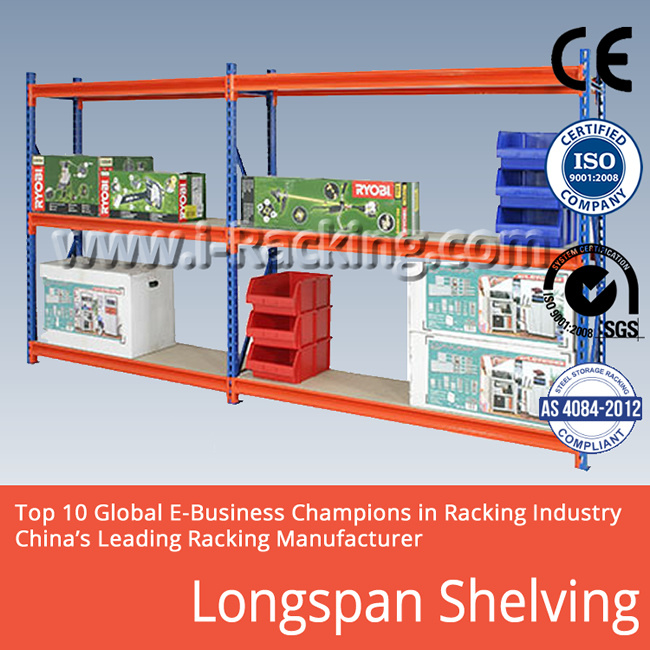

Product Show
Product Detais:

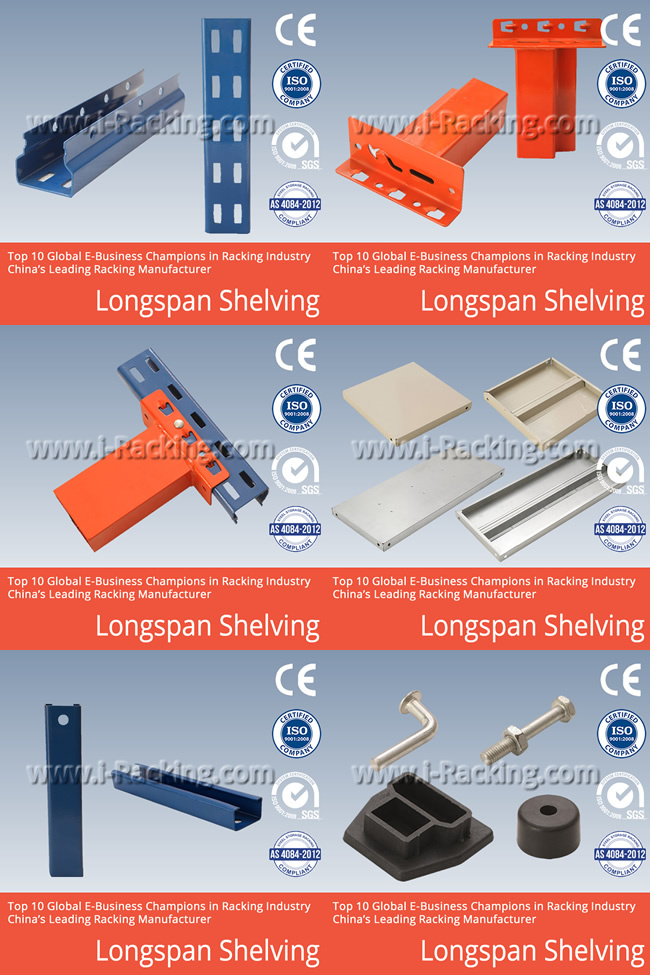

The main components of Longspan Shelving System are uprihts, step beams, connectors, steel panels and accessories.
Step beams are the horizontal components on which the load is directly deposited and on which the shelves are fitted in order to store small-sized products.
iRacking provides an extensive range of step beams which covers any storage need, in terms of size, load type and capacity.
Beams are joined to uprights by means of connectors which fit into upright slots. To different loading capacity, 2-hooker or 3-hooker connectors are adopted.Each beam includes two safety pins to prevent beam accidental dislodgement & falling.
Each level of longspan racks is made up of 2 or 3 steel panels according to the beam length and the weight of the products to be stored. iRacking provides two types of steel panels. Option 1. powder coated finish; option 2. pre-galvanized finish.
Reinforcements backside with much bigger loading capacity.
