Prod Model: |
SU4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Protection Degree: |
IP20 |
Type: |
Busbar Holder |
Material: |
Polyester |
Brand: |
Tosunlux |

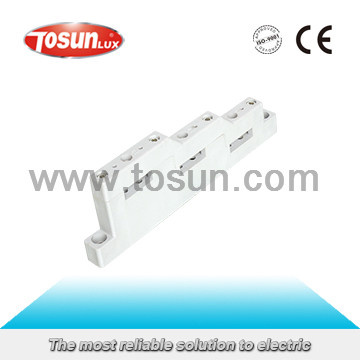

Product Description
PRODUCT DESCRIPTION:
1. Material: Glass fibre strengthened, thermoplastic polyester(PBT), continuous working temperature maximum 140ºC.
2. Technology Illustration: Four different bus stand(SU1, SU2, SU3, SU4) could be used to assemble a bus system with center distance of 60mm. The SU2, can be solely used as PN/PE. SU1 could be extended to one system with five systems. While using inserted parts, clutch the bus stand for the bus section of E-Cu 30 10mm(SU1, SU2, SU3 and SU4)
FEATURES:
1. Low voltage insulator
2. Electrical resistance
3. Heat,fire,water resistance
4. Low shrink
SPECIFICATION:
Model | Rated Current up to | Number of Pole | Center Distance of Busbar Stand | Bus Clutching Size Without Inserted Parts | Tightening Turning Moment |
Fixed Screw | Fixed the Cover |
SU1 | 800A | 1pole | | 30x10mm | 5-8Nm | 1-3Nm |
SU2 | 800A | 2pole | 60mm | 30x10mm | 3-5Nm | 1-3Nm |
SU3 | 800A | 2Pole | 60mm | 30x10mm | 3-5Nm | 1-3Nm |
SU3S | 800A | 3Pole | 60mm | 30x10mm | 3-5Nm | 1-3Nm |
SU4 | 800A | 4Pole | 60mm | 30x10mm | 3-5Nm | 1-3Nm |
