M1-M10 Precisoin Custom Machining Steel Small Gear Rack and Pinion
| Price: | US $ 5-6/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | Modules1~Modules10 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: | Blasting, Hot Zinc Glavezied |
| Certificate Of Quality: | ISO9000:2008 |
| Helical Teeth: | Also Available |
| Feature: | Construction Hoist and CNC Machines Usage |
| Advantage: | Higher Quality and Lower Price |
| Rack And Pinion: | CNC Gear Rack |
| We Also Can Produce As Your Drawing: | Yes |
| Modules: | Modules1~Modules10 |
| Product Name: | Small Gear Rack and Pinion |
| Features: | with High Quality and Low Price |
| Certification: | ISO9001: 2000 |
| Condition: | New |
| Type: | Rack and Pinion |
Product Description
Precisoin Custom Machining Steel Small Gear Rack and PinionA rack and pinion is a type of linear actuator that comprises a pair of gears which convert rotational motion into linear motion. A circular gear called "the pinion" engages teeth on a linear "gear" bar called "the rack"; rotational motion applied to the pinion causes the rack to move relative to the pinion, thereby translating the rotational motion of the pinion into linear motion.

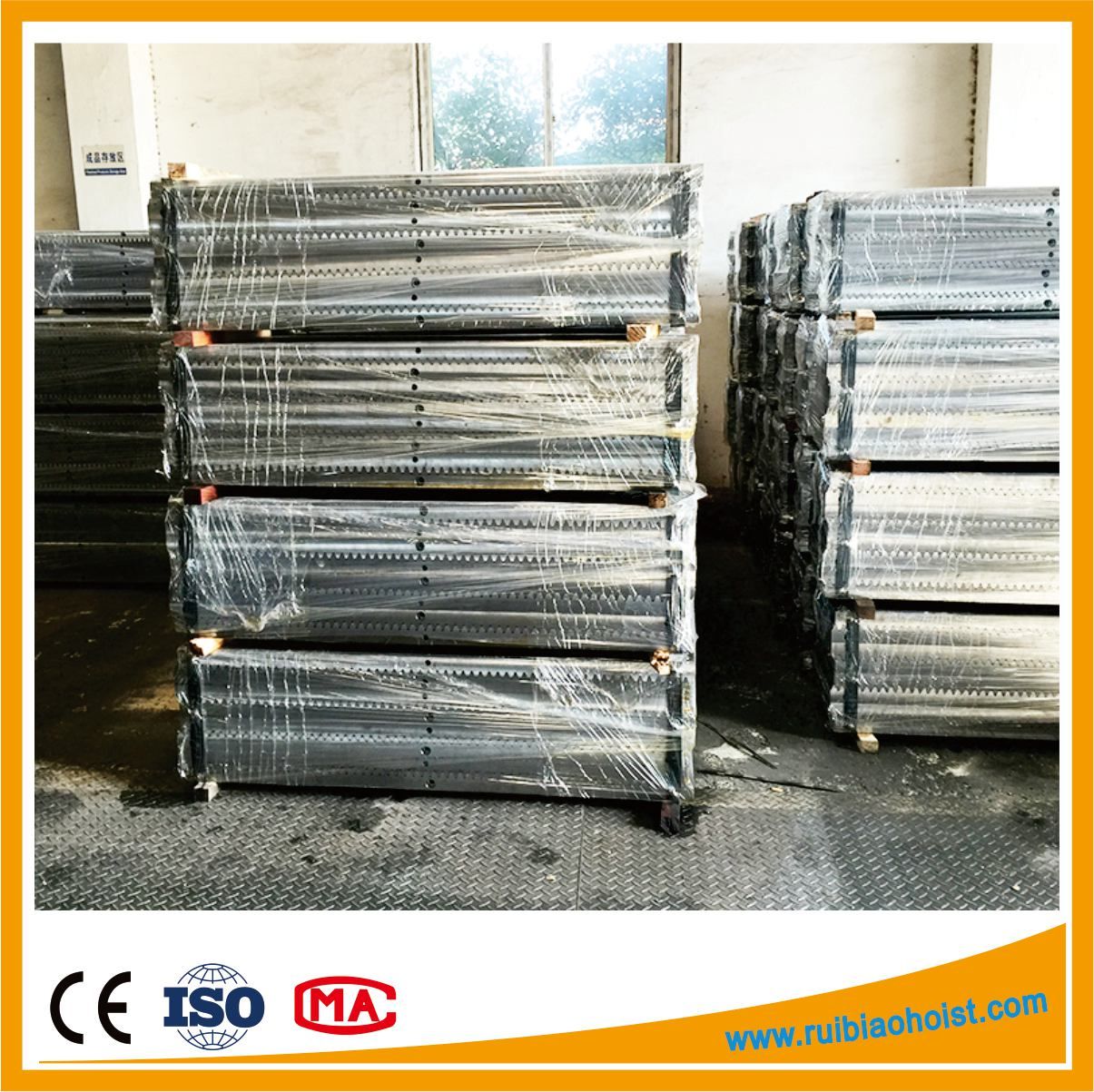

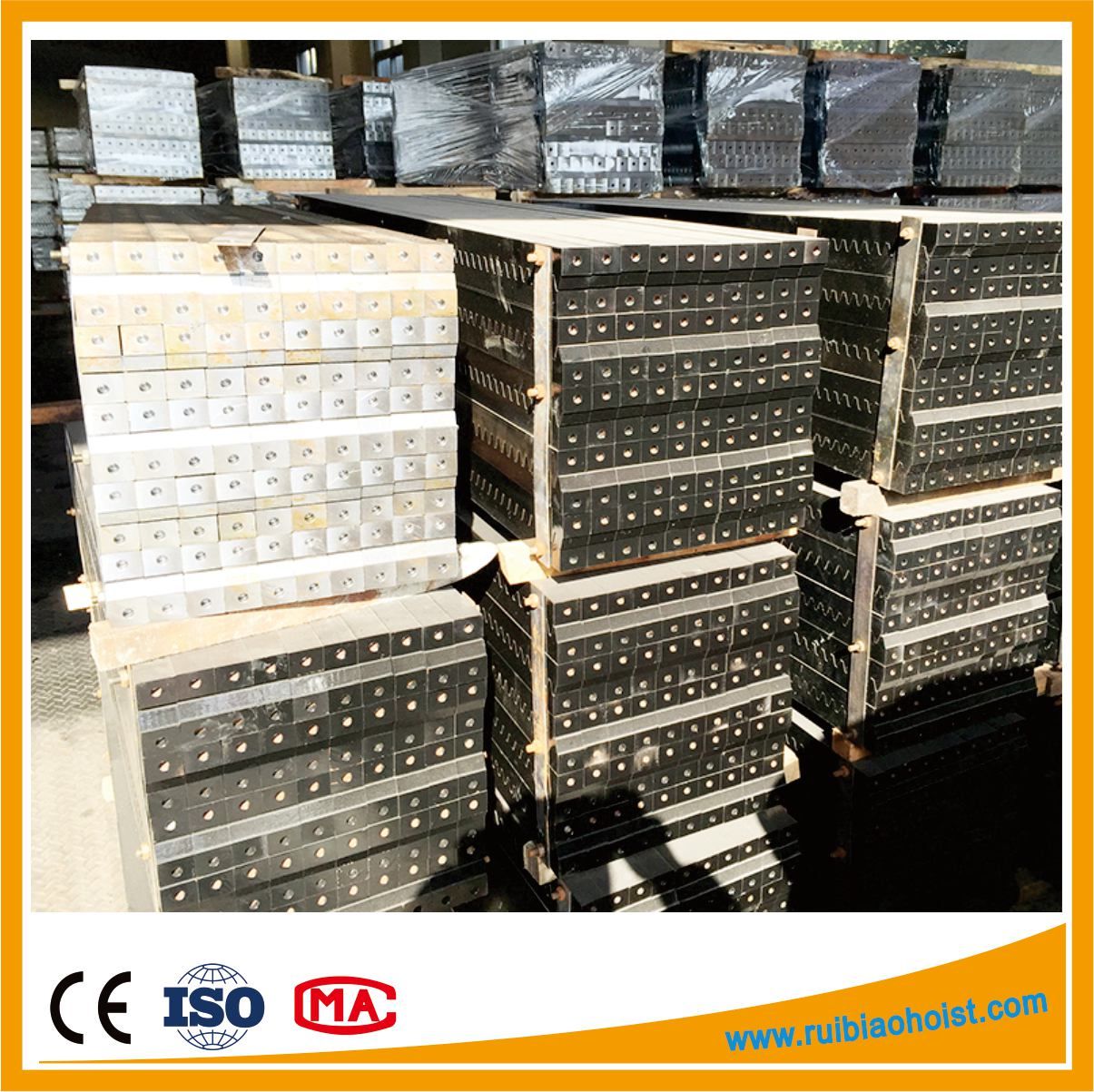

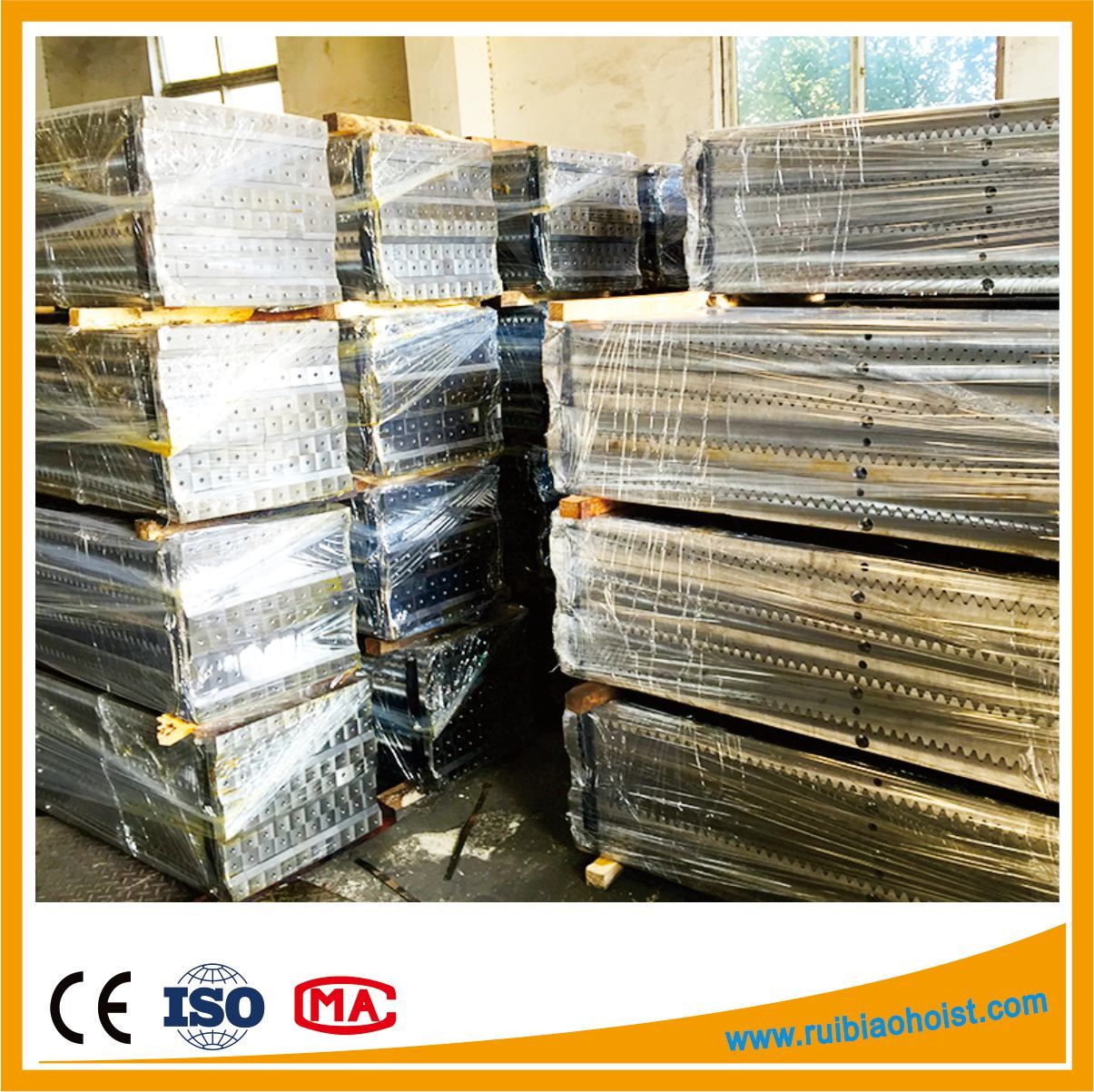

Here is gear racks M1~M10,pls kindly check it carefully.
| M1 | 10*10*1000 10*15*1000 | M1 | 15*15*250 15*15*500 | M3 | 30*30*250 30*30*500 | M5 | 50*50*250 50*50*500 |
| M1.5 | 15*15*1000 15*20*1000 | 15*15*1000 15*15*2000 | 30*30*1000 30*30*2000 | 50*50*1000 50*50*2000 | |||
| M2 | 20*20*1000 20*25*1000 | M1.5 | 17*17*250 17*17*500 | M6 | 60*60*250 60*60*500 | ||
| M2.5 | 25*25*1000 25*30*1000 | 17*17*1000 17*17*2000 | M4 | 22*22*250 22*22*500 | 60*60*1000 60*60*2000 | ||
| M3 | 30*30*1000 30*35*1000 | M2 | 20*20*250 20*20*500 | 22*22*1000 22*22*2000 | M8 | 80*80*250 80*80*500 | |
| M4 | 40*40*1000 40*45*1000 | 20*20*1000 20*20*2000 | M4 | 30*30*250 30*30*500 | 80*80*1000 80*80*2000 | ||
| M5 | 50*50*1000 50*55*1000 | M2.5 | 25*25*250 25*25*500 | 30*30*1000 30*30*2000 | M10 | 100*100*250 100*100*500 | |
| M6 | 60*60*1000 60*65*1000 | 25*25*1000 25*25*2000 | M4 | 40*40*250 40*40*500 | 100*100*1000 100*100*2000 | ||
| M8 | 80*80*1000 | 40*40*1000 40*40*2000 |
The description of gear racks below:
| Material | C45# steel, 40Cr, 20CrMnTi, 20Mn, alloy Steel, 20MnTi, Cast Iron etc. |
| Process | Forging, Machining, Hobbing, Milling, Shaping, Shaving, Grinding, Heat treatment. |
| Heat treatment | High frequency quenching, heat treatment, hardened teeth |
| Surface treatment | Blacken, galvanization, chroming, electrophoresis, or customer requirement |
| HrC | 20CrMnTi - carburization -(58~62) C45# steel - high frequency -(40~45) |
| Performance | High precision, high wear resistance, low noise, smooth and steady, high strength |
| Model number | Standard or nonstandard |
| Application | Tractor, feeding machinery, harvester, mining machinery etc. |
We can also manufacture custom made gear rack , when customers provide us with drawings.
- Spur gear racks- cnc gear rack
- Bevel gear racks (straight teeth / spiral teeth)- cnc gear rack
- Rack and pinion,cnc gear rack
- Helical gear racks (helix gear racks)
-Worm gear racks (worm wheel)
-Screw gear racks
-Internal gear racks
-Ring gear racks
-Hypoid gear racks
-With / without Ground teeth
-With / without Hardened teeth
(Precision: From Grade7-10 Material:C20 C45 STEEL)
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
