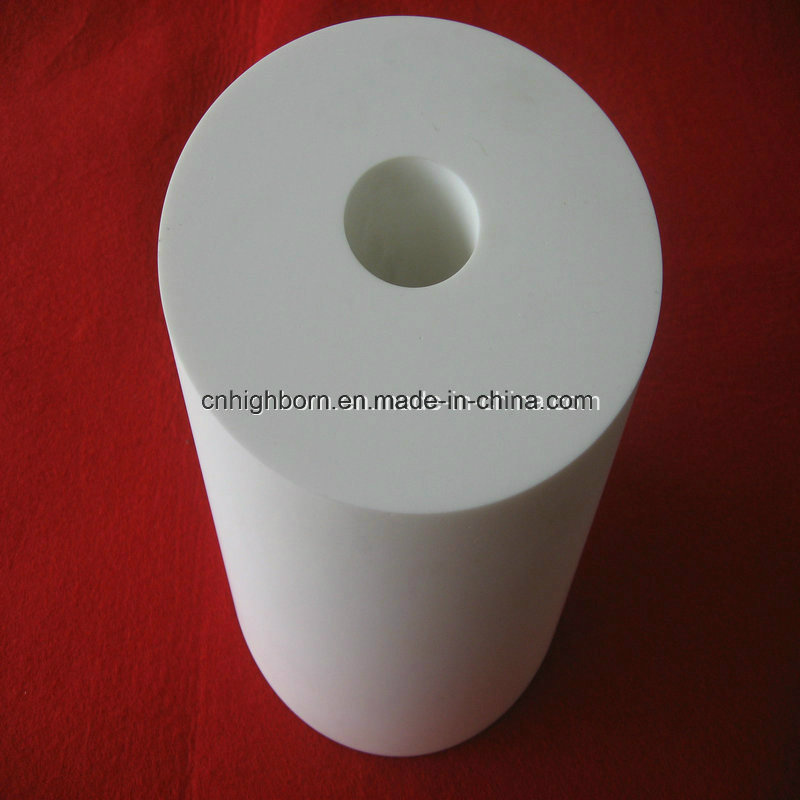

Macor Machinable Ceramic Glass Ceramic Tube

Macor Machinable Ceramic Glass Ceramic Tube
Price: US $ 50-100/Piece
Trade Terms: FOB,CFR,DAT
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Money Gram
Prod Model: HB36
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flexural Strength: 108MPa
Volume Density: 2.5~2.8 g/cm3
Thermal Conductivity: 1.7 W/M@K
Color: White

Product Description


Machinable Glass Ceramic has a continuous use temperature of 800ºC and a peak temperature of 1000ºC. Its coefficient of thermal expansion readily matches most metals and sealing glasses.It processes good machinability and can be lathed, milled, planed, ground, bored, incised and threaded. It also has the advantages of insulation, pore-free, high/low-temperature resistant, acid and alkali resistant and thermal impact resistant.

Detail Description
Magnetic susceptibility                                ≤1.2×10-6
Dielectric constant                                      6~7
Breakdown voltage                                     ≥15 KV/mm
Flexural strength                                        ≥108Mpa
Fracture Modulus                                       15000bf/in2
Impact toughness                                       ≥ 3.8 KJ/m2 Knoop
Hardness                                                   176~343 kg/mm2
Volume density                                       2.5~2.8 g/cm3
Range of operating temperature                -200~+1000ºC
Thermal expansion coefficient                   ≤94×10-7 /K
Thermal conductivity                                 ≥ 1.7 W/m·K
Applications
It is widely used for nuclear, microwave high vacuum insulation, high precision magnetism-free skeleton for aeronautic and astronautic electrical devices, ultra-high voltage insulation for electric motors and structural parts at strong erosion environments. In terms of machinability, it can take place of aluminum oxide and boron nitride ceramics that are difficult to machine.
Size
 Rod: Dia25mm~Dia160mm, up to 300mm long
Plate: customized various sizes.

he main advantage:
-It can be turned,milled,grinded,drilled and tapped and other machining.
-Precision machining dimensions.
 -Non-magnetic.



Item

Standard value

Remarks

Density

2.6 g/m³



Porosity

0.069%



Water absorption

0



Hardness

4-5

Mohs

Color

Pure white



Thermal expansion coefficient

72×10-7/°C

100°C ~600°C average value

Thermal conductivity

1.71W/m.k

25°C

Working temperature

800°C



Bending Strength

>108MPa



Compress strength

>508 MPa



Impact Toughness

>2.56KJ/ m2



Modulus of elasticity

65GPa



Insertion loss

1~ 4×10-3

Room temperature

Dielectric constant

6-7

"

Dielectric strength

>40KV/mm

Thickness of sample 1mm

Bulk density

1.08×1016Ω.cm

25°C

1.5×1012Ω.cm

200°C

1.1×109Ω.cm

500°C

Gas efficiency at normal temperature

8.8×10-9 ml/s. cm2

Vacuum experienced for eight hours

Helium permeatingrate

1×10-10ml/s

After 500C burning,cool to room temperature.

5%HC1

0.26mg/ cm2

95°C,24 hours

5%HF

83mg/ cm2

"




HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.

HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic, and laser industries.

Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.

Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
