Home LED Light Products Magnet Hook, Super Force Holding 5.5-164kg Magnetic Round Base Hook
Magnet Hook, Super Force Holding 5.5-164kg Magnetic Round Base Hook
| Price: | US $ 5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | N35, N38, N40 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | Customized |
| Export Market: | Global |
| Fuction: | Hanging Heavy Things |
| Application: | Home Magnet |
| Coating: | Nickel/Zinc |
| Grade: | N35 |
| Type: | Hook |
| Material: | Steel+Hook |
| Shape: | Steel Hook+NdFeB Magnet Ring+Round Iron House |
| Usage: | Hanging/Hoisting Heavy Object &Magnet Fishing |
| Brand: | Shine |
Product Description

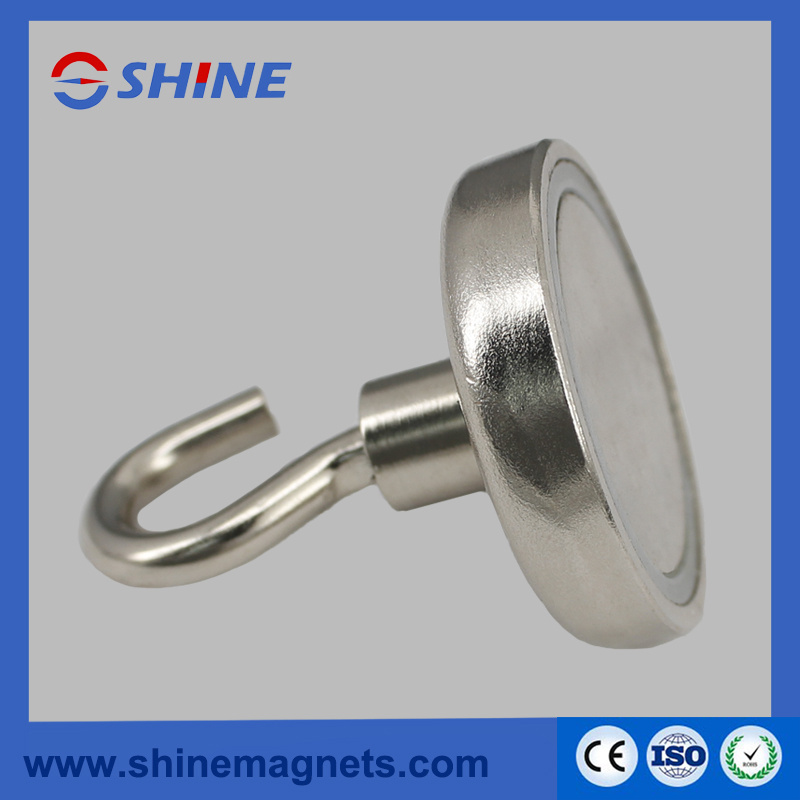

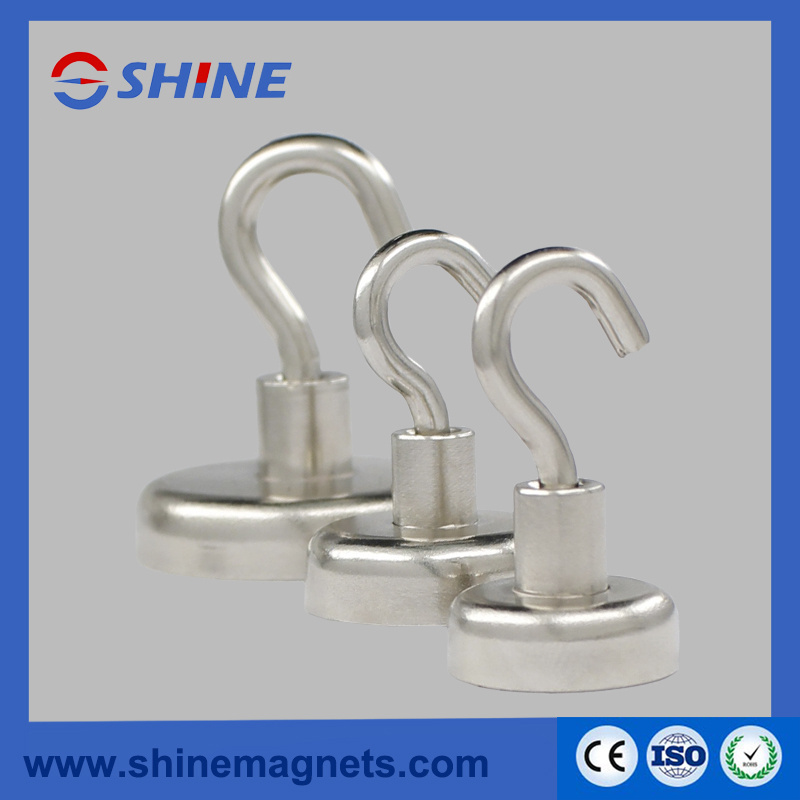

Neodymium magnet hook is quite strong when placed on steel, it doth firmly hang tools or objects. The magnet hook consist of neodymium magnet and steel. Neodymium magnet is a permanent magnet that preserve much strongger magnetic power than smco magnet and ferrite magnet.Neodymium magnet hooks are in different sizes and magnetic holding power. Please contact our sales team for the newest price and details.
Advantages
1 All NdFeB magnets used are made by our own magnet factory. We can well guarantee the quality of magnets
2 Standard producing process and strict quality checking
3 Our know-how experts in magnetics could give you best solution on magnets to make sure the strong holding force of the concrete magnet
4 Competitive price,stable quality, in time reponse
5. Fast delivery. We have thousands different models in stock, thus could deliver pot magnets in the second day after receipt of payment
Detailed specifications
1.Size: As per the table. Customer tailored design are available.
2.Material: NdFeB magnets + Steel cup
3.Coating: NiCuNi or as per customers requirement.
4.Glue: Loctite. The gluing of magnet and steel cup could be well guaranteed.
| Model | D | M | H | h | Force(kg) | Net weight(g) | |||
| RPM-E16 | 16 | 4 | 15 | 5 | 5 | 11 | |||
| RPM-E20 | 20 | 4 | 16 | 7 | 9 | 21 | |||
| RPM-E25 | 25 | 4 | 16 | 8 | 17 | 37 | |||
| RPM-E32 | 32 | 4 | 16 | 8 | 34 | 56 | |||
| RPM-E36 | 36 | 5 | 23 | 8 | 40 | 68 | |||
| RPM-E42 | 42 | 5 | 23 | 9 | 66 | 97 | |||
| RPM-E48 | 48 | 8 | 25 | 11.5 | 80 | 154 | |||
| RPM-E60 | 60 | 8 | 25 | 15 | 112 | 282 | |||
| RPM-E75 | 75 | 8 | 25 | 18 | 162 | 560 | |||
1. Plastic gasket will be put between strong and big magnets, easy for seperation.
2. white box for numerous of magnets.
3. carton (size 34x26x20cm),filled with white foam.
Who We Are
Shine Magnetics specializes in researching, developing and producing magnets and magnetic products used in different industrial and customers' applications. Relying on right knowledge and experience in the field, aiming at the potential demands from customers, integrating the intelligence of our know-how experts, Shine Magnetics has produced well recognized magnetic products.
What We Do
Shine Magnetics are capable of providing not only single magnet but also the unique combination of magnetism, experts and experience. From initial idea to the finished products, our efficient working way means the superior quality is guaranteed. At Shine Magnetics, we always do the upmost to update and expend our production facilities. Efficient production process and timely delivery are what customer needs and also what we are always improving. We are also pleased to give suggestions for customers' special requirements from irregular magnets to complete systems. We can proceed to develop and test the solutions before producing the final products, working with you or on your behalf.
