Home LED Light Products Magnetic Hook Round Base Holder

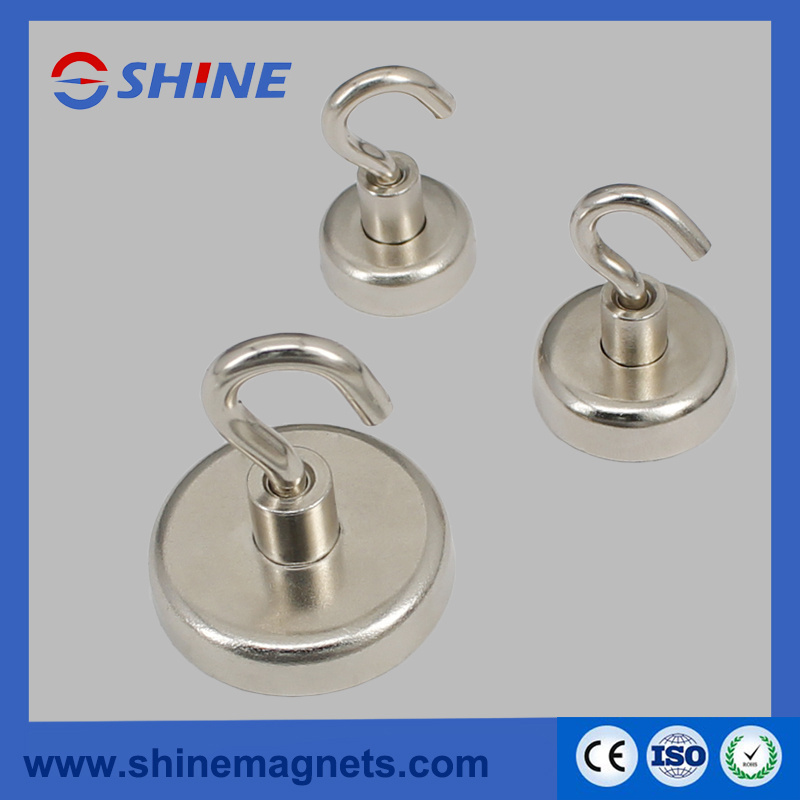

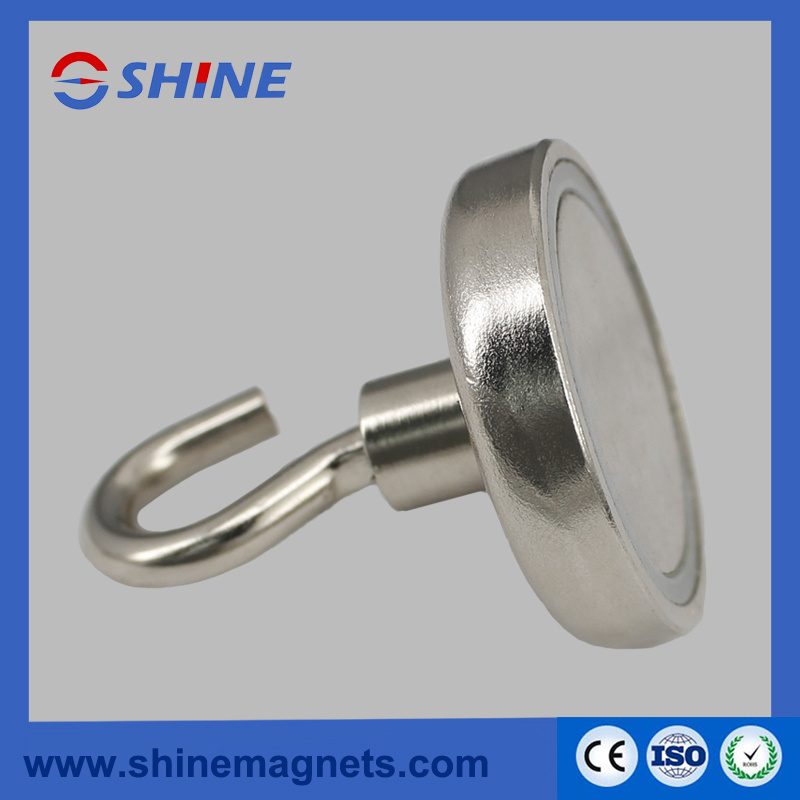

Magnetic Hook Round Base Holder
| Price: | US $ 1.2/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | RPM-B16 - RPM-B75 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Form: | Magnet Plate+Steel Feet+Rubber Coating |
| Size And Grade: | Customized |
| Delivery: | 15-29 Days |
| Application: | Pot Magnet |
| Coating: | Zinc Nickel Rubber |
| Grade: | N50 |
| Type: | Hook |
| Material: | NdFeB + Ebs+ Steel |
| Usage: | Hanging and Hold Things |
| Brand: | Shine |
| Color: | Bright Nickel |
Product Description
Neodymium magnet hook doth firmly hang tools or objects. Neodymium pot magnets are ideal for hanging things and lights. The neodymium magnet hook consist of neodymium magnet and steel. Neodymium magnet is a kind of permanent magnet that preserve much strongger magnetic power than smco magnet and ferrite magnet. Neodymium pot magnet in different size will provide a magnetic holding power range from 5 ~160 kg.
Advantages
1 All NdFeB magnets used are made by our own magnet factory. We can well guarantee the quality of magnets
2 Standard producing process and strict quality checking
3 Our know-how experts in magnetics could give you best solution on magnets to make sure the strong holding force of the concrete magnet
4 Competitive price,stable quality, in time reponse
5. Fast delivery. We have thousands different models in stock, thus could deliver pot magnets in the second day after receipt of payment
Detailed specifications
1.Size: As per the table. Customer tailored design are available.
2.Material: NdFeB magnets + Steel cup
3.Coating: NiCuNi or as per customers requirement.
4.Glue: Loctite. The gluing of magnet and steel cup could be well guaranteed.
| Model | D | M | H | h | Force(kg) | Net weight(g) | |||
| RPM-E16 | 16 | 4 | 15 | 5 | 5 | 11 | |||
| RPM-E20 | 20 | 4 | 16 | 7 | 9 | 21 | |||
| RPM-E25 | 25 | 4 | 16 | 8 | 17 | 37 | |||
| RPM-E32 | 32 | 4 | 16 | 8 | 34 | 56 | |||
| RPM-E36 | 36 | 5 | 23 | 8 | 40 | 68 | |||
| RPM-E42 | 42 | 5 | 23 | 9 | 66 | 97 | |||
| RPM-E48 | 48 | 8 | 25 | 11.5 | 80 | 154 | |||
| RPM-E60 | 60 | 8 | 25 | 15 | 112 | 282 | |||
| RPM-E75 | 75 | 8 | 25 | 18 | 162 | 560 | |||
1. Plastic gasket will be put between strong and big magnets, easy for seperation.
2. white box for numerous of magnets.
3. carton (size 34x26x20cm),filled with white foam.
