Prod Model: |
FMDRA |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue, Orange, Grey etc. |
Style: |
Double Faced |
Entry Type: |
2-Way |
Material: |
Steel |
Structure: |
Shelf |
Mobility: |
Fixed |
Height: |
0-5m |
Weight: |
150-500kg |
Closed: |
Semi-closed |
Development: |
Conventional |
Serviceability: |
Common Use |
Type: |
Medium |
Product Description
Long span rack A
Medium-type composite racking, unique appearance, reasonable construction, convenient installation, without any bolt, free to be adjusted by 50mm, great bearing capacity, widely used in department stores, supermarkets and store houses.

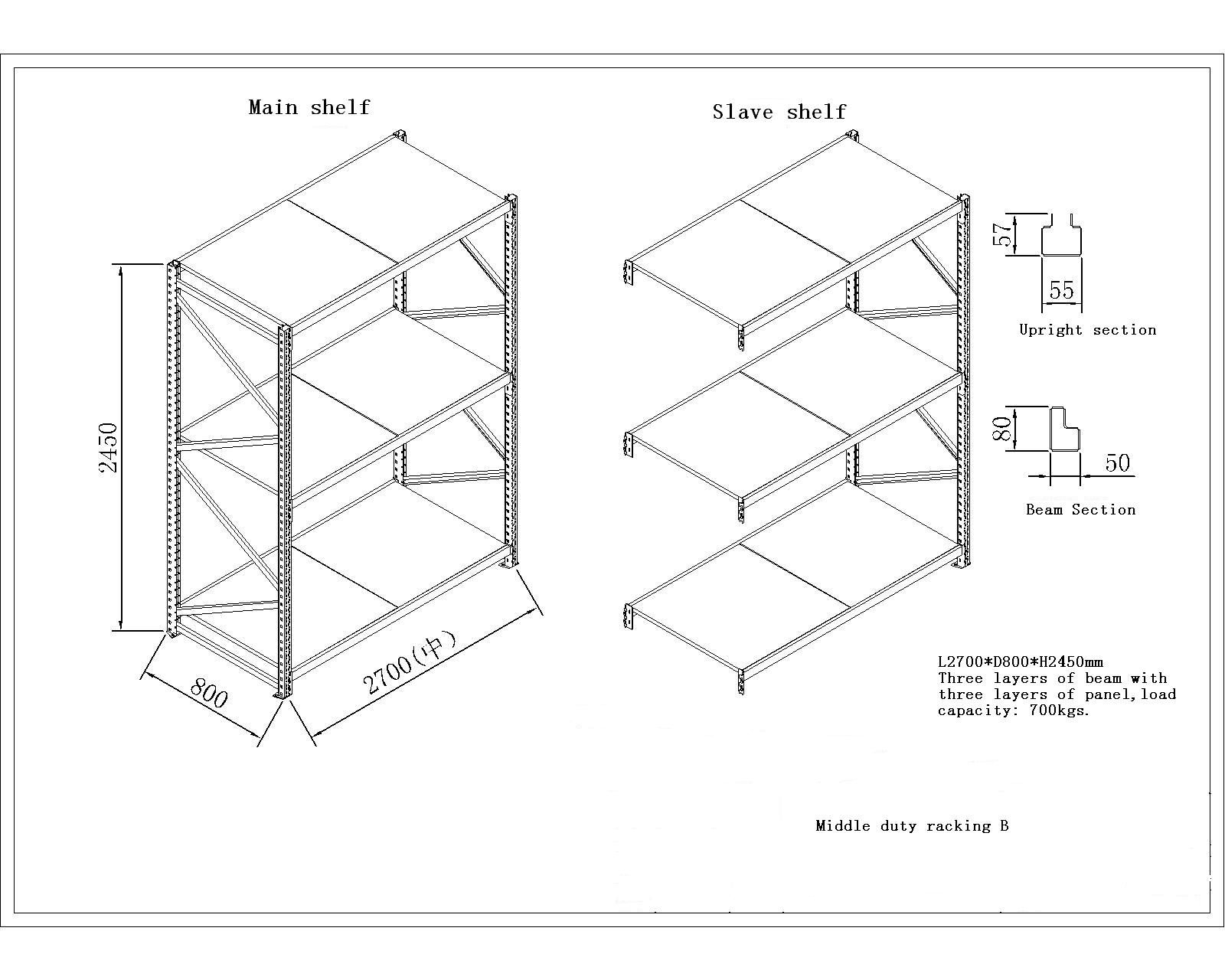

Different between middle duty rack A and B
1. Different frame structure
2. Beam and supports use
Product name | Medium duty racking A |
Place of original | Nanjing,China |
Product description | It can be assembled easily and save large transportation freight |
The layer can be steel or wood plate |
Each layer height can be abjusted 50mm freely. |
The upright hole shape can be changed by customer requirement |
The rack material is from Bao Steel Group Corp. with good quality. |
The rack size and color be be customized. |
Size(LengthxDepth) | 1200x470 | 1200x600 | 1200x720 | 1500x470 | 1500x600 | 1500x720 | 1800x470 | 1800x600 | 1800x720 |
Max bearing capacity per layer | 300kgs | 300kgs | 300kgs | 250kgs | 250kgs | 250kgs | 200kgs | 200kgs | 200kgs |
Size of upright | 55x40x1.8mm,Pitch=50mm,H=1.5,1.8,2.1,2.4m |
Surface treatment | Plastic spaying |
NANJING FUTURE MECHANICAL EQUIPMENT CO Ltd is a professional manufacturer of storage racking in ODM, OEM and offer many in-house designs from designing to manufacture and final export for customers as well. We serve international customers from the largest TOP 500 companies to the family-owned operations more than 10 years. FUTURE passed ISO9001 and we seek every product is perfect. Until 2015 early, we have undertaken more than 6000 sets of projects on designing, manufacturing and installation.
Our products from two factories as follows:
Warehouse Racking: Pallet Racking, Drive-in Racking, Mezzanine, Push Back Rack, Long Span Shelf, Steel Angle Shelving etc.
Pallet: Steel Pallet, galvanized steel pallet etc.
Steel cage: Wire mesh container, mesh box, roll container etc.
Plastic-steel composite pipe racks and carton flow racks
Anti-static steel floor
We earned much honor reputation by our most competitive prices, high quality control, on-time delivery and considerate customer service among our clients since we established.
Why do you choose us to be your supplier?
We have strong design team, competitive price, high quality, fast delivery and excellent service.
Fully promoting the business theory of "observing honesty and grateful for favors received" and satisfying customers' needs is our core, Future industry will constantly seek for development and innovation, so as to provide customers with high-quality and high-performance-price ratio products and service.
If you are interested in any of our products, please feel free to contact us for more details.
