Prod Model: |
HBE-SR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Finish: |
Plastic Powder Coating |
Color: |
White |
Capacity: |
150-200kg Per Layer |
Material: |
Steel |
Style: |
Backplane Style |
Side Number: |
Double Sided |
Weight: |
Middle Weight |
Rotary: |
Fixed |
Usage: |
Supermarket |
Product Description
Double side back panel supermarket gondola shelving & rack
Supermarket display shelf
Specification:
1) Form of backboard: Flat style
2) Surface treatment: Powder coating
3) Raw material: Cold rolled steel
4) Number of layers can be designed according to customers' requirements
5) Board can be adjusted freely
6) Different sizes are available
Susperiority
1. Corrosion resistand, rust proof. The naturally-formed oxide layer can prevent metal from oxidization
And have good acid alkali resistance.
2. Different size and design available, Welcome your own drawing.
Product range: | Punch back panel shelving/perforated back shelving/wire mesh singel (double)side shelving/cometic singel (double)side shelving/multifunction combined shelf |

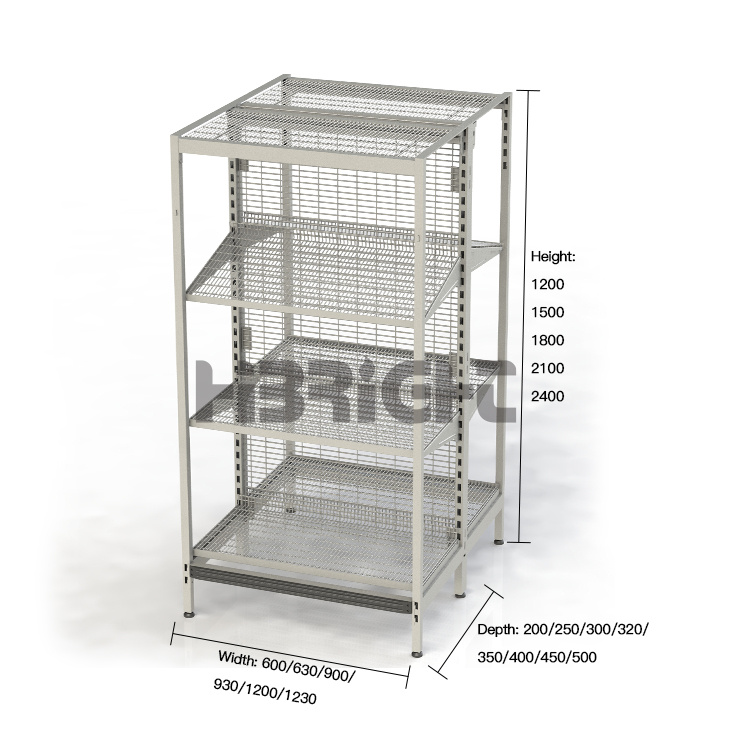

Product description: | Standard Size: L1000xW900xH1800mm L1000xW450xH1800mm L1200*W900*H2000 L1200*W1000*H2200 L1200*W600*H2200 L1000*W1000*H1800 L1250*W550*H3500 Loading Capability: 50-200kgs/layer Layer: can be designed according to customers' requirements Material: cold rolled steel Upright/Post: 60x30x1.5-3.0mm 70x30x1.5-3.0mm 80x30x1.5-3.0mm 60x40x1.5-3.0mm 80x40x1.5-3.0mm Panel Thickness: 0.7/0.8/0.9/1.0/1.1/1.2/1.3/1.4/1.5mm Shelf Thickness: 0.5/0.6/0.7/0.8/0.9/1.0mm Bracket Thickness: 1.5/1.8/2.0/2.2/2.5mm Plinth and Top Cover: 0.5/0.6/0.7/0.8/0.9/1mm Price list tag: various colour available NOTES: various sizes available OEM service offered |
