Prod Model: |
Selective |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Length: |
800mm |
Width: |
600mm |
Height: |
1450mm |
Colour: |
as Required |
Material: |
Steel |
Usage: |
Storage |
Load Capacity: |
>200kg |
Wheel Type: |
Pneumatic Wheel |
Wheel Amount: |
4 |
Style: |
Unfolding |
Surface Handling: |
Zinc Plated |
Certification: |
RoHS |
Lift Drive: |
Hand |
Product Description

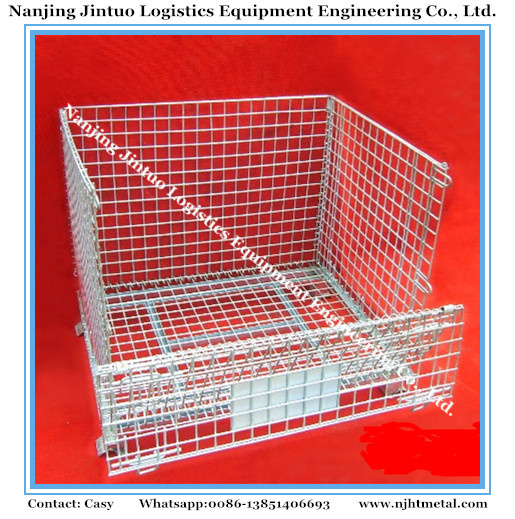

We are a factory in Nanjing City , in the position to supply a range of Steel Collapsible Wire Mesh Container / Storage Box for Pallet Rack for Warehouse Storage in a variety of sizes and capacities :
Features:
1. Wire container is made of strong steel, welded with U channel steel at the bottom to guarantee the load capacity;
2. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
3. Wire container uses bolt structure, providing easy access to product even when they are stacked;
4. Stackable: Wire container can be stacked to 4 layers, achieve three-dimensional storage; When not used, wire container can be collapsed and piled to save space;
5. With united specification and fixed capacity, it's convenient for identification of goods and inventory Count;
6. Casters can be equipped to make it convenient for move;
7. Cardboard, Wantong board or PP board can be equipped in the wire container to protect the surface of goods during storage and transportation;
8. Worked with hydraulic trucks, forklifts, elevators and other handling equipments, simple operation
9. Euro-style wire container is widely used in transportation, loading & unloading, storage and other logistics links, low cost and high efficiency.
Main oversea marketing for your reference
USA,Canada,Japan,Australia,New Zealand,South Korea,United Kingdom, Spain,
Germany, Bulgaria,France,Portugal,Italy,Southfield,Turkey,Singapore, Brazil,
Malaysia, Chile, Columbia,Philippines,South Africa,New Caledonia,Thailand, Doha,
Russia, Mauritius,Vietnam,Saudi Arabia,India,Bangladesh,Pakistan,Peru ETC.
Difference between Acidic Galvanization and Alkaline Galvanization:
Potassium chloride zinc plating (i.e.,Acidic Galvanization ) :
Advantages:
1, bright coating.
2, plating speed, high efficiency and low cost.
Disadvantages:
1, flake the galvanized layer , poor binding force , easy to fall off.
2, poor anti-corrosion ability , salt fog resistance test of the coating can not be guaranteed.
3, large coating brittleness , the passivation coating color is easy to fade after long time use.
Zinc-ate alkaline zinc plating (i.e., Alkaline Galvanization) :
Advantages:
1, good bonding strength ,columnar structure galvanized layer;
2, anti-corrosion ability is larger, better plating salt spray resistance test, can reach more than 72 hours;
3, better the color passivation coating adhesive ability, color is not easy to fade.
Disadvantages:
1,higher pre plating processing requirements ;
2, high electrical resistivity , low production efficiency ;
3, heavy alkali electroplating and pungent.
4, the color is relatively dark, not as acid bright zinc.
According to the advantages and disadvantages of two different kinds of galvanized, acid zinc is no guarantee that products comply with ROHS standards and requirements, quality cannot be guaranteed, should be used in alkaline zinc plating.
Specification of Wire Mesh Container with Acidic Galavnization is as follows. Non-standard types can be customized. |
Item | Size (L*W*H) (mm) | Wire Diameter (mm) | Mesh Space (mm) | Material Weight (kg) | Volume (CBM) | Loading Capacity (kg) | 20GP/40HC Loading Qty (Pcs) | Unit Price for 20GP/40HC Loading Qty |
A-1 | 800*500*540 | Φ6.0 | 50*50 | 25 | 0.15 | 500 | 420/840 | $30.26/$29.16 |
S-1 | Φ6.0 | 50*100 | 23 | 0.15 | 300 | 420/840 | $28.04/$26.94 |
Q-3 | 800*600*640 | Φ5.0 | 50*50 | 24 | 0.22 | 500 | 420/840 | $29.15/$28.05 |
A-3 | Φ6.0 | 30 | 0.22 | 700 | 420/840 | $34.87/$33.77 |
B-3 | Φ6.4 | 32 | 0.22 | 800 | 420/840 | $37.03/$35.93 |
QS-3 | Φ5.0 | 50*100 | 22 | 0.22 | 300 | 420/840 | $26.93/$25.83 |
CS-3 | Φ6.0 | 27 | 0.22 | 500 | 420/840 | $30.39/$29.30 |
S-3 | Φ6.4 | 29 | 0.22 | 600 | 420/840 | $32.46/$31.36 |
C-3 | Φ6.0 | 100*100 | 23 | 0.22 | 300 | 420/840 | $28.04/$26.94 |
Q-5 | 1000*800*840 | Φ5.0 | 50*50 | 36 | 0.52 | 800 | 220/550 | $42.00/$39.35 |
A-5 | Φ6.0 | 45 | 0.52 | 1,000 | 220/550 | $49.90/$47.24 |
TA-5 | Φ6.0 | 49 | 0.52 | 1,200 | 220/550 | $53.90/$51.24 |
B-5 | Φ6.4 | 52 | 0.52 | 1,500 | 220/550 | $56.90/$54.24 |
QS-5 | Φ5.0 | 50*100 | 32 | 0.52 | 500 | 220/550 | $37.88/$35.22 |
CS-5 | Φ6.0 | 40 | 0.52 | 800 | 220/550 | $44.90/$42.24 |
S-5 | Φ6.4 | 44 | 0.52 | 1,000 | 220/550 | $48.90/$46.24 |
C-5 | Φ6.0 | 100*100 | 34 | 0.52 | 500 | 220/550 | $39.94/$37.28 |
Q-6 | 1200*800*840 | Φ5.0 | 50*50 | 42 | 0.62 | 500 | 152/380 | $51.12/$47.18 |
A-6 | Φ6.0 | 55 | 0.62 | 1,200 | 152/380 | $60.49/$56.55 |
B-6 | Φ6.4 | 62 | 0.62 | 1,500 | 152/380 | $67.27/$62.38 |
QS-6 | Φ5.0 | 50*100 | 37 | 0.62 | 500 | 152/380 | $45.32/$41.38 |
CS-6 | Φ6.0 | 48 | 0.62 | 1,200 | 152/380 | $55.18/$51.24 |
S-6 | Φ6.4 | 53 | 0.62 | 1,500 | 152/380 | $60.18/$56.24 |
Q-7 | 1200*1000*890 | Φ5.0 | 50*50 | 52 | 0.84 | 1,000 | 152/380 | $60.78/$56.84 |
A-7 | Φ6.0 | 63 | 0.84 | 1,250 | 152/380 | $68.24/$64.30 |
TA-7 | Φ6.0 | 65 | 0.84 | 1,500 | 152/380 | $70.18/$66.24 |
B-7 | Φ6.4 | 72 | 0.84 | 1,800 | 152/380 | $76.96/$73.02 |
TB-7 | Φ6.4 | 78 | 0.84 | 2,000 | 152/380 | $82.78/$78.84 |
QS-7 | Φ5.0 | 50*100 | 45 | 0.84 | 500 | 152/380 | $53.56/$49.62 |
CS-7 | Φ6.0 | 55 | 0.84 | 800 | 152/380 | $60.49/$56.55 |
S-7 | Φ6.4 | 58 | 0.84 | 1,000 | 152/380 | $63.39/$59.45 |
C-7 | Φ6.0 | 100*100 | 46 | 0.84 | 500 | 152/380 | $55.30/$50.65 |
Specification of Wire Mesh Container with Alkaline Galanization is as follows. Non-standard types can be customized. |
Item | Size (L*W*H) (mm) | Wire Diameter (mm) | Mesh Space (mm) | Material Weight (kg) | Volume (CBM) | Loading Capacity (kg) | 20GP/40HC Loading Qty (Pcs) | Unit Price for 20GP/40HC Loading Qty |
A-1 | 800*500*540 | Φ6.0 | 50*50 | 25 | 0.15 | 500 | 420/840 | $31.45/$30.35 |
S-1 | Φ6.0 | 50*100 | 23 | 0.15 | 300 | 420/840 | $29.10/$28.00 |
Q-3 | 800*600*640 | Φ5.0 | 50*50 | 24 | 0.22 | 500 | 420/840 | $30.30/$29.20 |
A-3 | Φ6.0 | 30 | 0.22 | 700 | 420/840 | $36.30/$35.20 |
B-3 | Φ6.4 | 32 | 0.22 | 800 | 420/840 | $38.50/$37.40 |
QS-3 | Φ5.0 | 50*100 | 22 | 0.22 | 300 | 420/840 | $27.95/$26.85 |
CS-3 | Φ6.0 | 27 | 0.22 | 500 | 420/840 | $31.65/$30.55 |
S-3 | Φ6.4 | 29 | 0.22 | 600 | 420/840 | $33.80/$32.70 |
C-3 | Φ6.0 | 100*100 | 23 | 0.22 | 300 | 420/840 | $29.10/$28.00 |
Q-5 | 1000*800*840 | Φ5.0 | 50*50 | 36 | 0.52 | 800 | 220/550 | $43.70/$41.00 |
A-5 | Φ6.0 | 45 | 0.52 | 1,000 | 220/550 | $52.00/$49.35 |
TA-5 | Φ6.0 | 49 | 0.52 | 1,200 | 220/550 | $56.20/$53.50 |
B-5 | Φ6.4 | 52 | 0.52 | 1,500 | 220/550 | $59.30/$56.65 |
QS-5 | Φ5.0 | 50*100 | 32 | 0.52 | 500 | 220/550 | $39.40/$36.70 |
CS-5 | Φ6.0 | 40 | 0.52 | 800 | 220/550 | $46.75/$44.10 |
S-5 | Φ6.4 | 44 | 0.52 | 1,000 | 220/550 | $50.95/$48.30 |
C-5 | Φ6.0 | 100*100 | 34 | 0.52 | 500 | 220/550 | $41.50/$38.85 |
Q-6 | 1200*800*840 | Φ5.0 | 50*50 | 42 | 0.62 | 500 | 152/380 | $52.40/$48.50 |
A-6 | Φ6.0 | 55 | 0.62 | 1,200 | 152/380 | $62.20/$58.25 |
B-6 | Φ6.4 | 62 | 0.62 | 1,500 | 152/380 | $69.20/$65.25 |
QS-6 | Φ5.0 | 50*100 | 37 | 0.62 | 500 | 152/380 | $47.05/$43.10 |
CS-6 | Φ6.0 | 48 | 0.62 | 1,200 | 152/380 | $57.40/$53.45 |
S-6 | Φ6.4 | 53 | 0.62 | 1,500 | 152/380 | $62.65/$58.70 |
Q-7 | 1200*1000*890 | Φ5.0 | 50*50 | 52 | 0.84 | 1,000 | 152/380 | $63.20/$59.25 |
A-7 | Φ6.0 | 63 | 0.84 | 1,250 | 152/380 | $70.20/$66.25 |
TA-7 | Φ6.0 | 65 | 0.84 | 1,500 | 152/380 | $72.20/$68.25 |
B-7 | Φ6.4 | 72 | 0.84 | 1,800 | 152/380 | $79.20/$75.25 |
TB-7 | Φ6.4 | 78 | 0.84 | 2,000 | 152/380 | $85.20/$81.25 |
QS-7 | Φ5.0 | 50*100 | 45 | 0.84 | 500 | 152/380 | $55.65/$51.70 |
CS-7 | Φ6.0 | 55 | 0.84 | 800 | 152/380 | $62.20/$58.25 |
S-7 | Φ6.4 | 58 | 0.84 | 1,000 | 152/380 | $65.40/$61.25 |
C-7 | Φ6.0 | 100*100 | 46 | 0.84 | 500 | 152/380 | $56.75/$52.80 |
Remarks:
Feet High:100mm;
Max Stacked-up during usage:4 Layes up ;
Surface Treatment : Alkaline Galvanizied, hot dip galvanized or powder coated;
Price Terms : FOB Shanghai ;We can also off CIF your port price item if necessary;
MOQ : No limited. If to save unit cost, we advice use one sea container (20GP/40GP) loading quantity shipped in FCL;
Terms of Payment : 30% T/T in advance and 70% T/T balance before ship, we can also accept L/C at sight;
Production time : 3-19 days;
For Quick Quotation Specific Need Wire Mesh Container:
1,Drawing or photos (if available)?
2,Size:long*wide*high?
3,Wire diameter ?
4,Mesh pitch ?
5,Add extra tools PP sheet, iron plate, forklift plates, wheels, cover, mesh top.
6,Surface treatment:acidic galvanization/alkaline galvanization/hot dip galvanization?
7,Loading capacity?
8,Stackable or not? Max stacked up?
9,Your required qty & destination port?
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
