Metal Storage Decking Heavy Duty Shelf

Metal Storage Decking Heavy Duty Shelf
Price: US $ 77-80/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T,D/P
Prod Model: SL-H023
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fast Delivery: Within 10 Days
Certifications: CE/SGS/As4084/ISO9001
Export: More Than 10 Years
Surface: Powder Coated or Galvanized
Feature: Corrosion Protection
Style: Heavy Duty Storage Rack
Item: Heavy Duty Shelf
Material: Steel and Reinforced Concrete
Structure: Rack
Mobility: Adjustable
Closed: Closed
Development: New Type
Serviceability: Common Use
Height: 0-8m
Weight: 1000-5000kg/Layer

Product Description

Metal Storage Decking Heavy Duty Shelf

Material Q235B steel cold roll forming
Loadingmax 4000kg per layer
Size
1, Length: 3600mm
2, Depth: 800-1200mm
3, Height: max 9000mm
4, Standard size: L2500mm*D1200mm*H6000mm
Section
1, Beam: 80*45/90*45/100*45/110*45/100*50
2, Upright: 80*60/88*68/90*60/100*68/110*68
3, Thickness: 1.5-2.5mm
Features
1, Most widely used storage rack,  permits only one deep pallet load and back-to-back structure;
2, Make all pallets accessible from the aisle;
3, Rack loading are topped with cross beams or metal decking, MDF,
4, Fro all indsutry warehouse
Adjustable75mm per pitch
Storage styleFirst in- first out,  first levels can be on the ground
Production timewithin 21 days at most
Colour Blue uright and orange beam; Others: yellow, grey

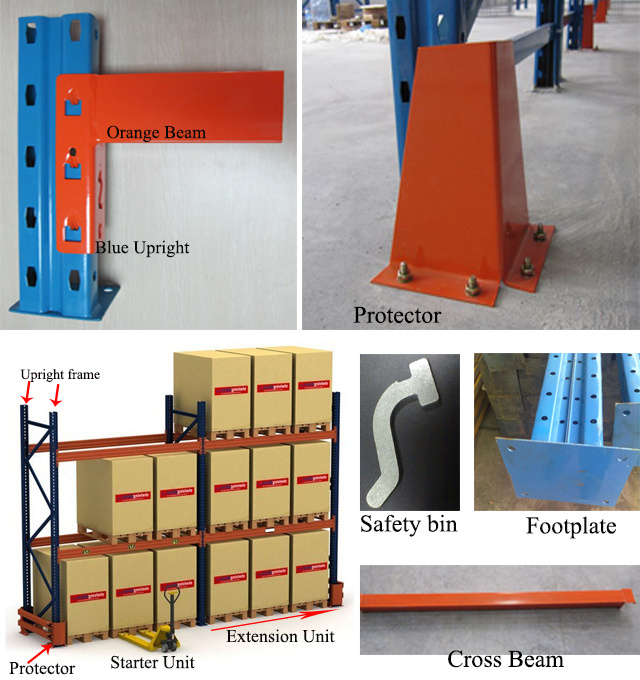

Basic sturcture of rack units:

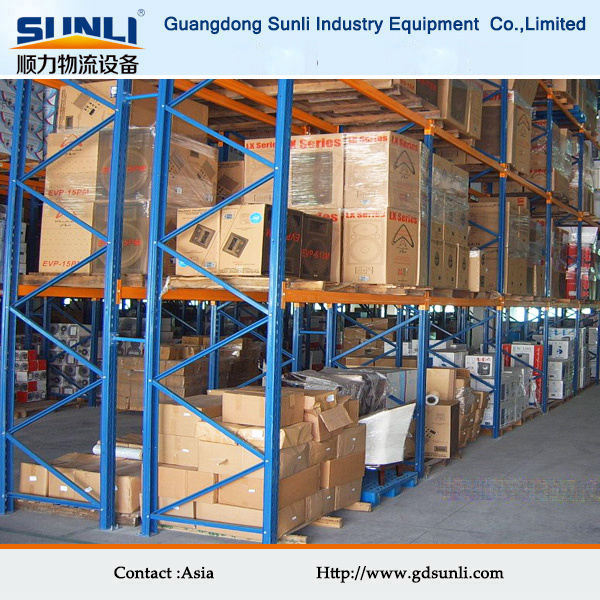

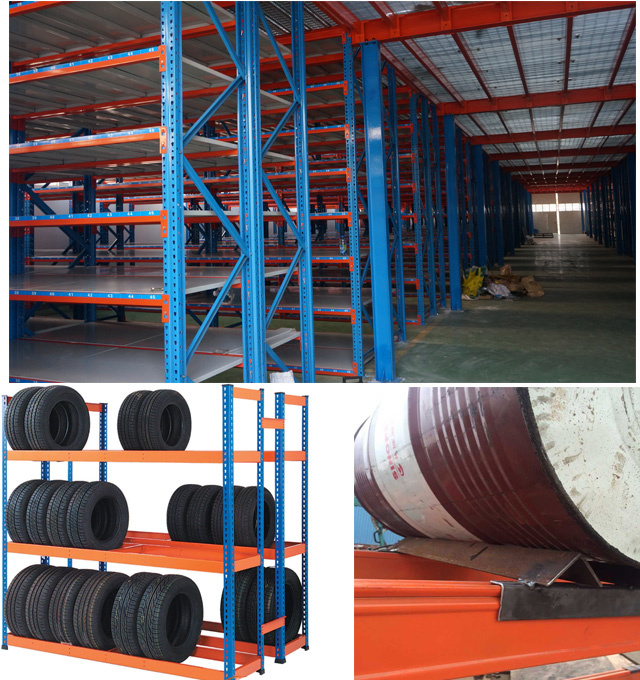

   This style can be used in warehouse to store:

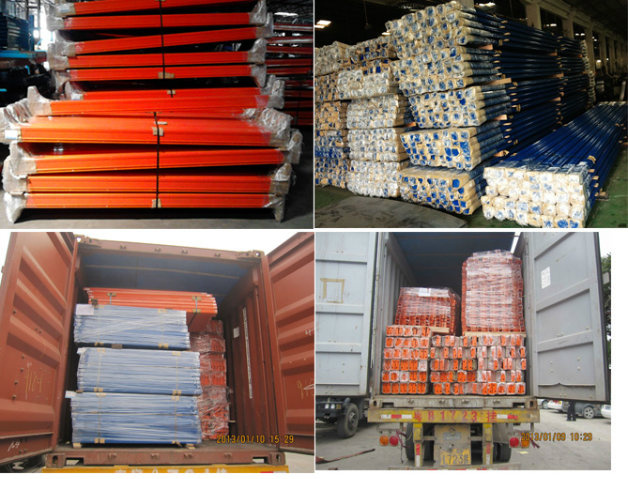

Package and delivery details:

 Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want

 Pallet style rack and light duty style rack;:
ProductsHeavy Duty Pallet  RackingMedium/Light  Duty Racking
Loading Capacity1000-5000KG/layer100-1000KG/layer
SpecificationMain Racking:
            L2000*D1200*H4800mm*4layers
            (Designed by different demands)
Beam: L1800~5000mm
Layer board: 2.5~3mm
Customized sizes and colours are welcomed

Main Racking:
                L1500*D1200*H3000mm*4layers
              (Designed by different demands)
Beam: L1200~2500mm
Layer board: 1.0~2.0mm
Layers: steel panel/net or wood veneer
Customized sizes and colours are welcomed


The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.

Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.

As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.

What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.

Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,

New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.

Sunli motto "Value beyond expectations
