Mezzanine Racking System High Quality Steel Q235 Chinese Storage Racking
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | MR201810 |
|---|---|
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Type: | Mezzanine Racking |
| Weight: | 500-4000 |
Product Description

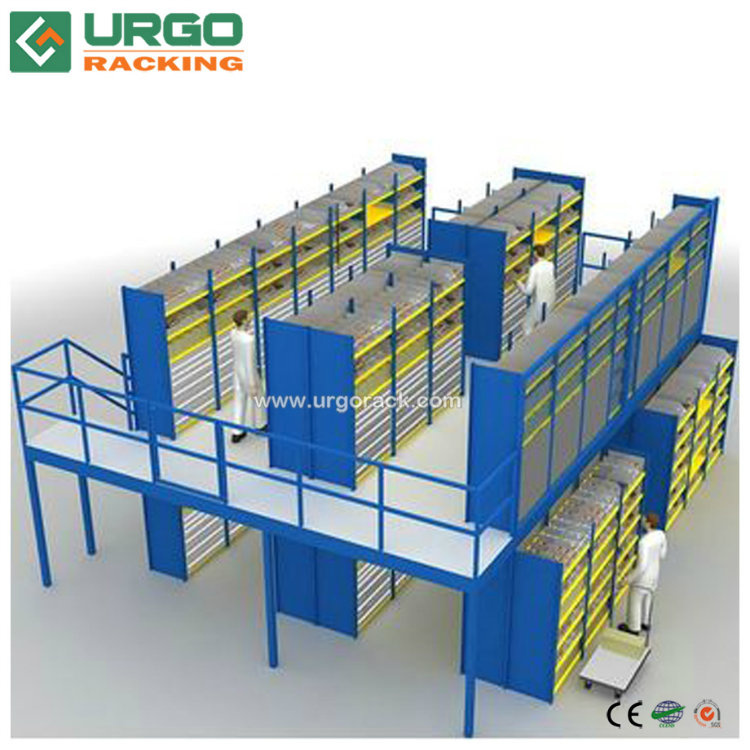

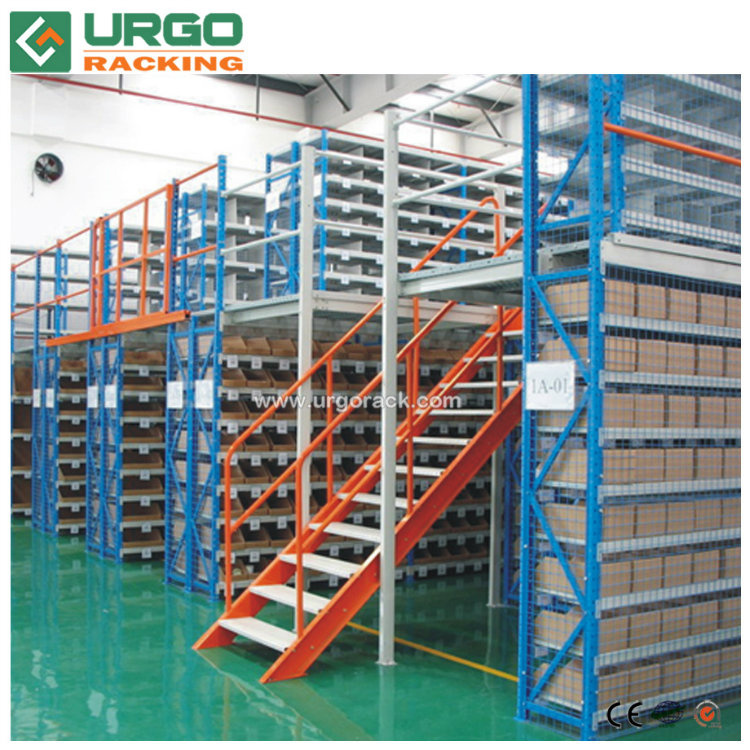

Customized Warehouse Mezzanine Racking

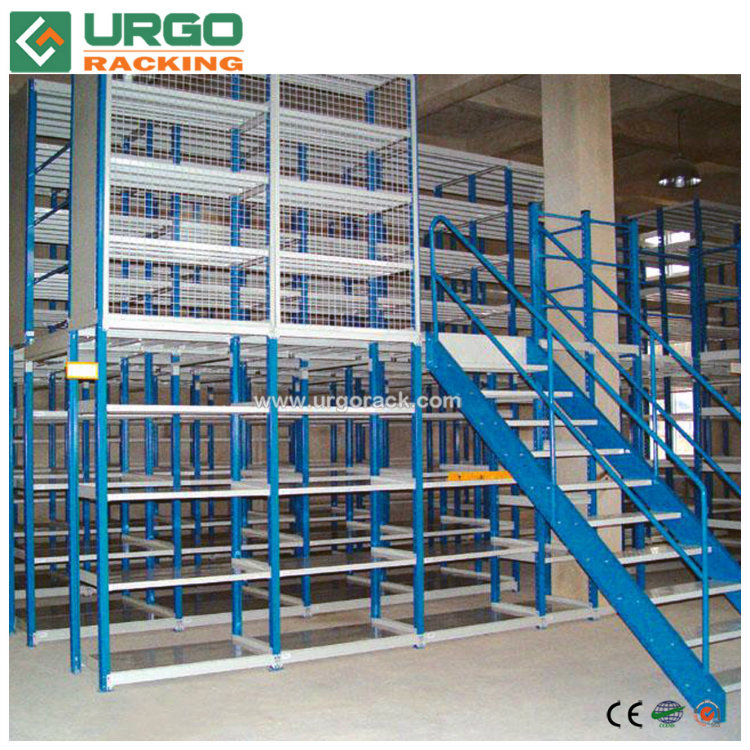

This Mezzanine can be installed with standard shelf rack:
1, MOQ: 10SQM
2, Load: 500kg/SQM
3, Total height: 4500mm
4, Standard shelf rack: L2000*D400/600*H2000*4layers
5, Price will $126USD/SQM.
This Mezzanine can be installed with standard shelf rack:
1, MOQ: 10SQM
2, Load: 500kg/SQM
3, Total height: 4500mm
4, Standard shelf rack: L2000*D400/600*H2000*4layers
5, Price will $126USD/SQM.
Technical data of rack mezzanine:
| Material | Q235B steel |
| Loading | Max 1000kg/m2 |

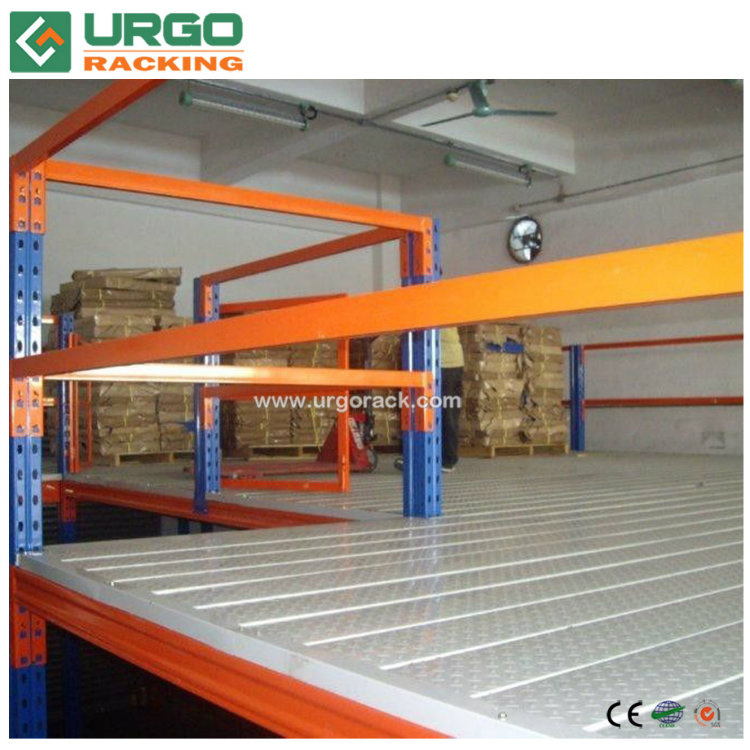

| Decking type | MDF, steel plate( plain, punching hole) |

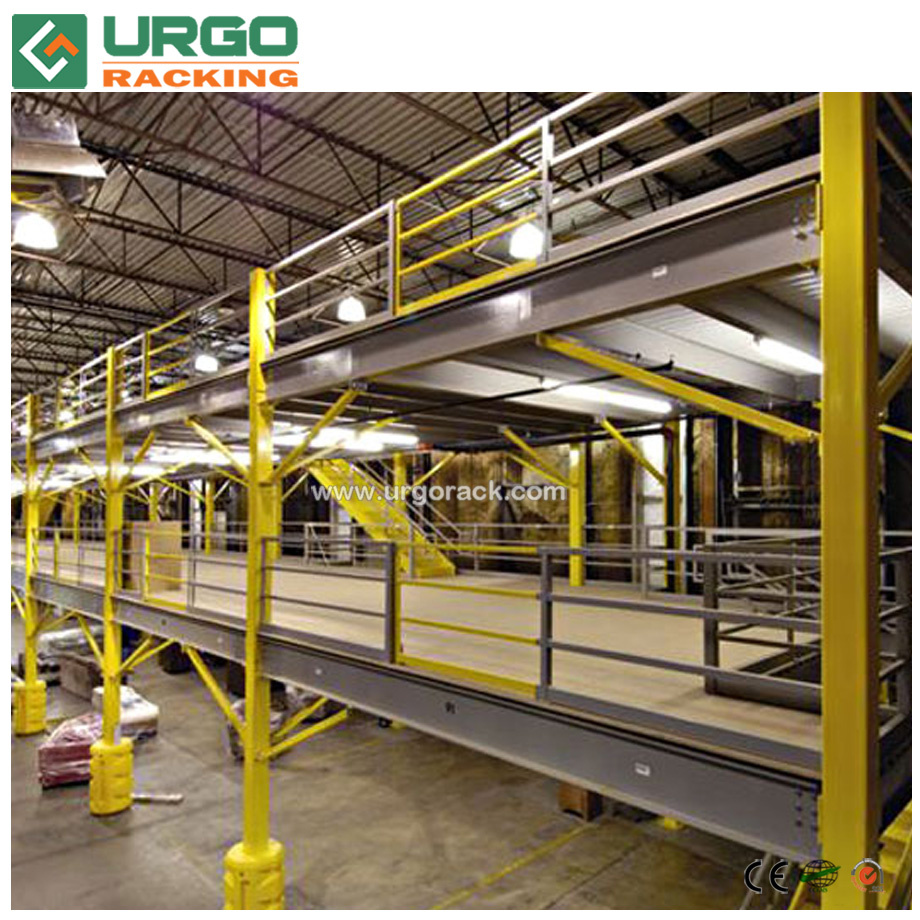

| Features | 1, Storing goods or material in metal, food, textile, eletronic, dairy etc. Industry 2, H-Beam supported and Normal rack supported structure 3, Robust 4, Can be Selective and shelf rack/pallet rack/drive-in rack supported 4, Heigh: Can be full tiers, Max 8000mm |
| Adjustable | 75mm/50mm per pitch |

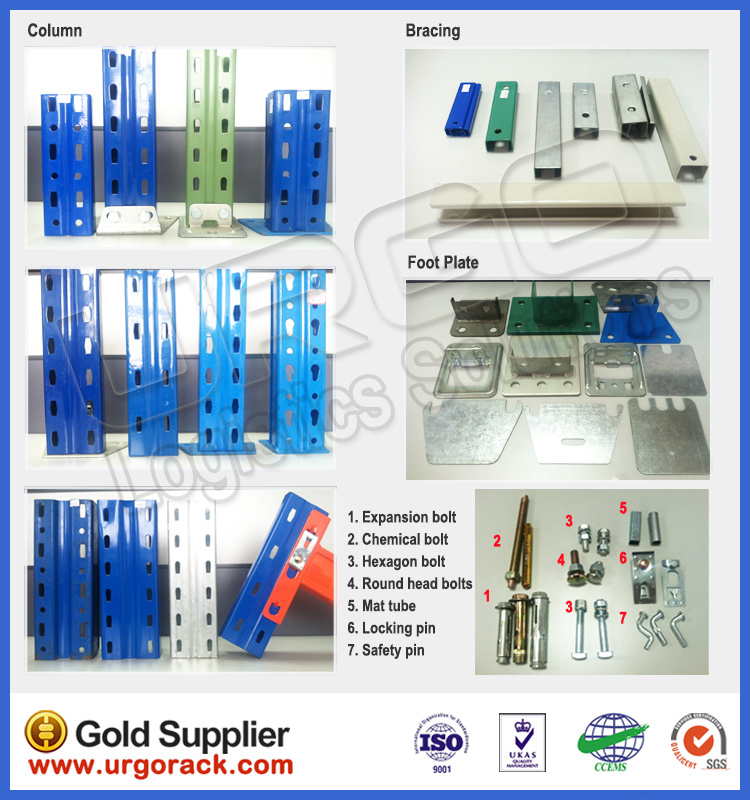

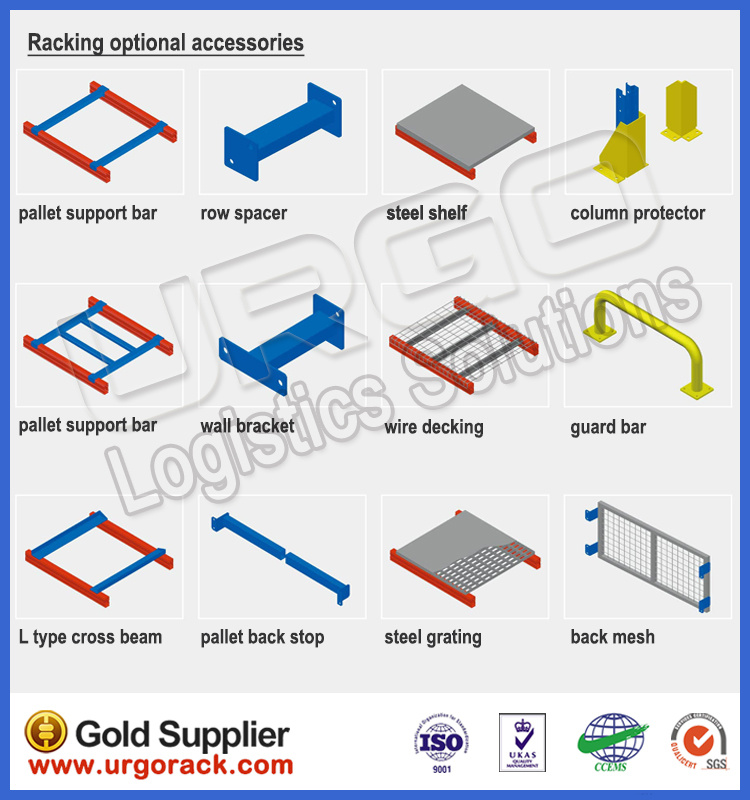

| Parts and accessories | 1, Upright stand column; 2, Beam(main beam/vice beam/side beam) 3, Floor decking(MDF/plate); 4, Handrails; 5, Staircase; 6, Bolts and safety bins; 7, Discharge gate; |
Why choose us:
1. Quick delivery time: Shipping can be done within 10 days
2. Experience: 10 years'experience of manufacturing&exporting steel rack
3. Professional design:
A. Your CAD or PDF drawing for warehouse layout
B. We offer rack design in CAD or PDF
C. Modification&Confirmation
D. Manufacturing technique drawings(in our factory)
E. Manufacturing&shipping
4. Our factory life line:
We believe quality is the soul life of the group company!
5. Certifications: SGS/ISO approvement, free of trouble when you import
6. Shipping forwarder: We have our own&long term cooperted forwarder.
Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
7. Powder coating finish
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
| 100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
| 110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
| 120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
| 140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
| 160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
| 160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
| 160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 | |||||
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
| 120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
| 140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 | |
