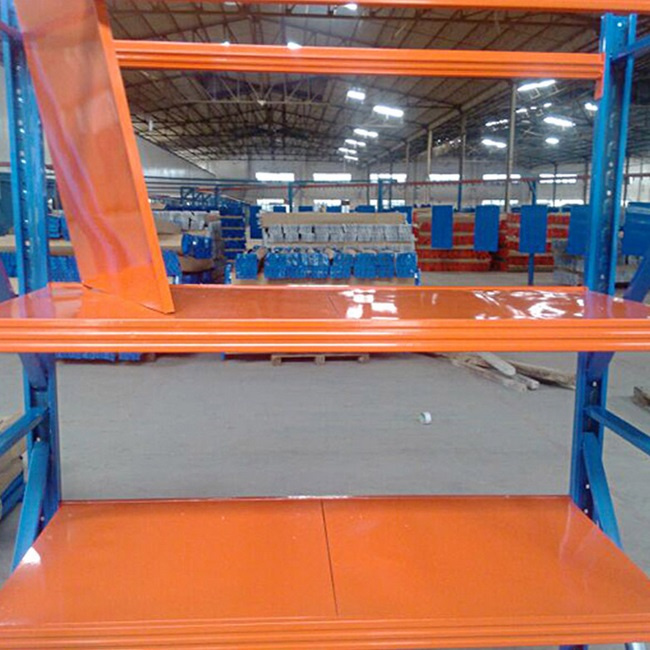

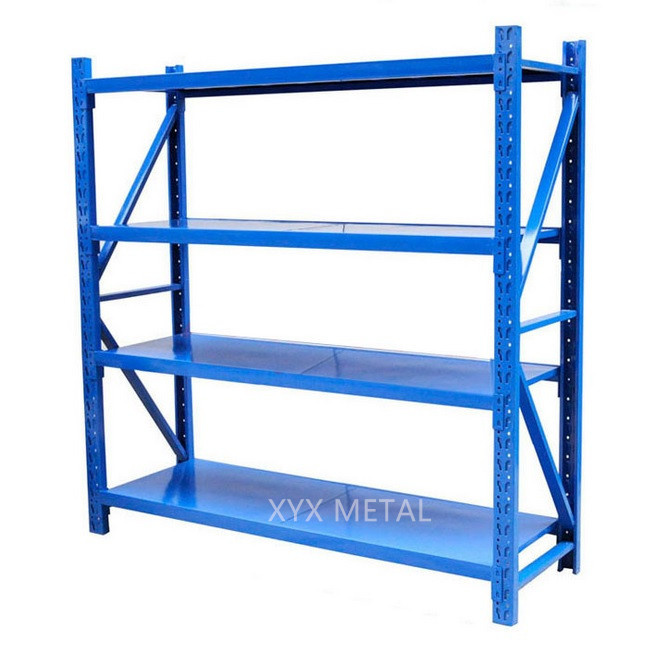

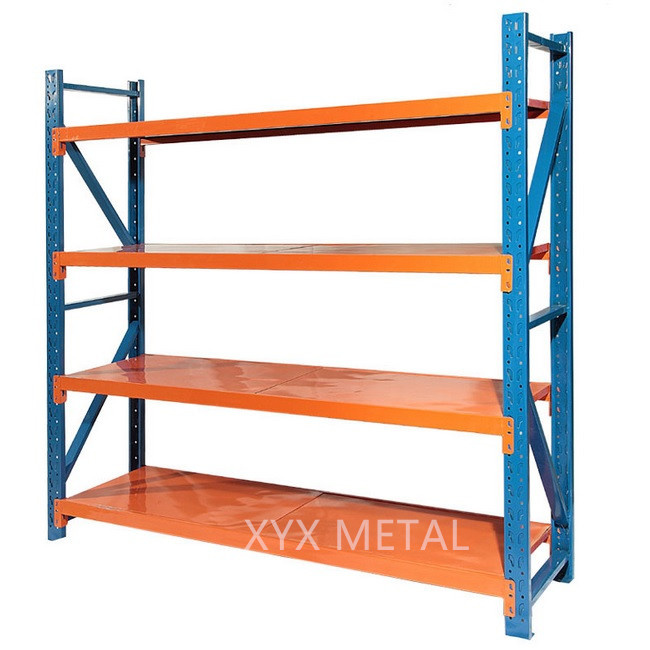

Middle-Duty Warehouse Rack Storage Shelf
| Price: | US $ 75-100/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Set |
| Pay Type: | T/T,Western Union |
| Prod Model: | MR-01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Time: | 20 Days |
| Material: | Steel |
| Structure: | Rack |
| Serviceability: | Common Use |
| Weight: | 500kg |
| Mobility: | Combined |
| Closed: | Semi-closed |
| Development: | Conventional |
| Height: | 2-11m |
Product Description
Product DescriptionHeavy-duty storage rack is also called pallet rack, beam rack and storage shelf, they are most widely used which need to apply with forklift that can pick up freely any goods put on to the location with the feature of simply structure, easy operation, good storage and safety.
Heavy-duty beam racks can be used companied with different kinds of accessories, such as support bars, wire cages, steel pallets, wood pallets, steel meshes, etc, to meet different demands.
Specification
Main material: cold rolling steel
Specification: 2000*600*2200mm.
Surface finishing: powder plated
Upright post dimension:40*80mm.
Beam dimension: 40*60mm.
Thickness of board: 0.6mm,
Loading capacity: 150-200kg/layer

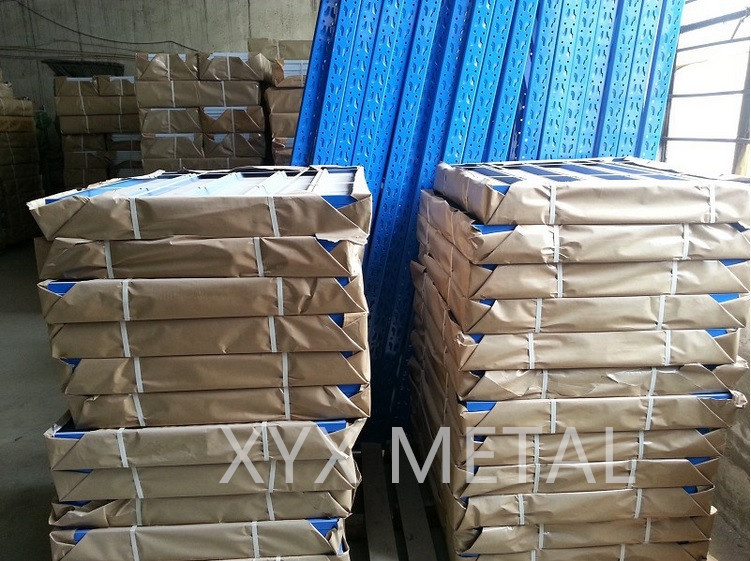

Packing: Boarding in cartons and upright post in foam poly bag
Our Advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc. )
Our normal standard type storage racks as below sheet:
Refer to the sheet, we have several normal standard types for your choice.
If there are not suitable one for you, we also accept your customized design.
| Feature of Pallet racking | ||
| Meterial | High quality hot rolled steel. Q235B (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M) | |
| Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. | |
| Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
| Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. | |
| Length | 0.8-1.2m (2.63-3, . 94ft), or according to customer' s requirements. | |
| Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0. Refer to below sheet 2 for more details. | |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
| Loading capibility (per layer) | 700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. | |
| Layer nos. | 2-7 layers. or customized. | |
| Packing detial: | Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. | |
| Delivery detial: | 10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits. | |
