Most Popular Arm Shelving with High Quality
| Price: | US $ 41/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JCCR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Steel |
| Structure: | Cantilever Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Cantilever Rack |
| Weight: | 100kg to 3000kg/ Level |
| Height: | 2-15m |
Product Description

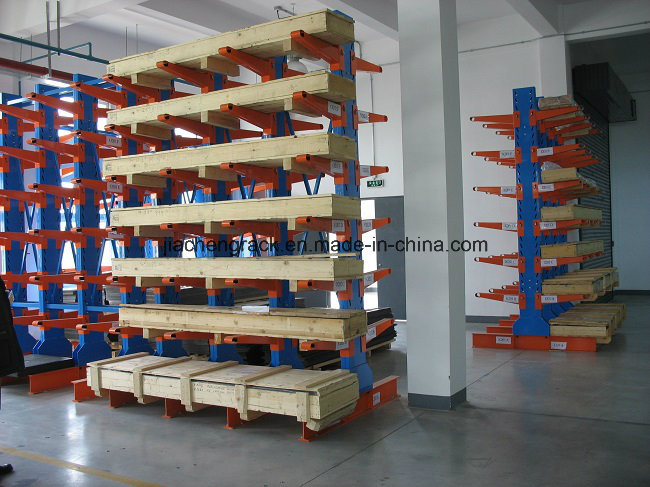

The ideal solution to store long and awkward oversized goods is Cantilever Racking. It is perfect for the storage of packs of timber, steel bars, tubes, long goods. It is available in both single-sided and double-sided configurations. The double sided rack provides maximum storage capacity on a single central column while the single sided rack is designed to fit flush against a wall. Cantilever racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas. Items best suited to such a system include furniture, building materials, piping, rolls, appliances, and flooring.Features and the Advantage:
A. The column and foot are welded or bolted together.
B. The cantilever racks can be used single or double sided.
C. Column heights of up to 5 meter, perforated every 75mm.
D. The Cantilever racking is suitable for forklift and crane handling.
E. Ground guidance can be provided as an option.
F. The beams are bolted and adjustable per 100mm, corresponding with the sizes of the stored goods.
G. Arm lengths of our Cantilever racking range from 600 to 1500mm.
The Specification and Parameters: | Type | Cantilever racking |
| Material | Steel Q235/SS40 |
| Surface Finish | Epoxy power coated / Galvanized |
| Length of Arm | <=1500mm |
| Depth of column | 1000mm,1500mm,2000mm |
| Capacity of Arm | <=1000kgs |
| Height of column | <=8000mm |
We can also make the customized products as per your required size, color , loading weight, or different style.
Packing & Delivery:
A. Packing: Standard export packages with carton box and film.
B. Lead Time: 7-25 days
Quotation requirements, kindly inform us the info as below
- single or double arm?
- Size (Length x Width x Clear height)
- Requirements for the loading weight
- How many arms in each post?
Package and Performance Pictures Showing:
