Most Popular Heavy Duty Racking for Warehouse and Logistics
| Price: | US $ 89/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JCHDR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500-3000kg/Level |
| Height: | 2-15m |
Product Description

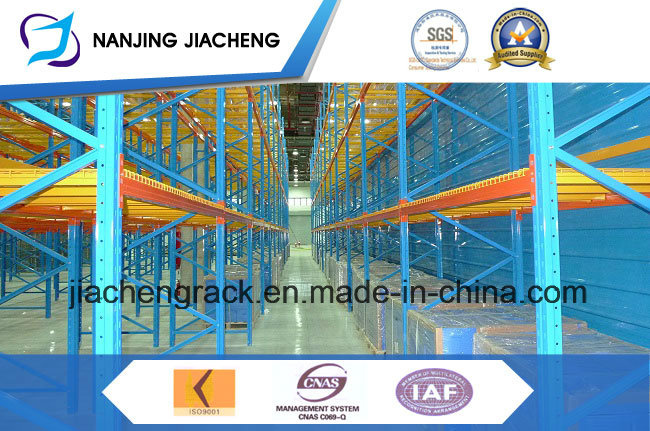

Warehouse pallet racking is also called beam racking. I t is a cost effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.Our Pallet racking can be configured in a variety of ways and systems, depending on the customer's requirements and pallet load. Whether its frozen food in a cold store utilising, either Drive-in racking or mobile racking (MOVO), or bulk goods, such as products with a "best before date", that are stored on a FIFO (first in first out) pallet flow system, all goods stored on pallets will be ideally stored by one of these methods as this provides optimal storage economics. It includes all types: beam racking, drive-in racking, push back racking, premie rack wide aisle, selective pallet racking
Features and the Advantage:
A. It is designed to store pallet cargo. It enables you to make full use of the storage space. With a wide range of optional solutions and components available, we can design special super lock racking system according to your requirements.
B. It can be coupled with different specifications of pallets and containers.
C. It can coordinate with all the handling equipment and operational equipment.
D. It is manufactured in accordance with international quality standard ISO9001:2000, as well as international design standard SEMA, FEM, and AS4084.
E. Pallets can be located, accessed and moved individually, Rapid handling of almost all types of palletised goods.
F. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
G. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
H. Strength and rigidity prevents compression damage to goods.
I. Bottom level of pallets can be stored on the floor, lowering structure costs.
J: The beam, upright and accessories are packed separately. They can be bundled separately with the carton box and films. Please see the pictures.
Packing & Delivery:
A. Packing: first PP film inside then carton packed outside, suitable for exporting according to the performance of the goods
B. Lead Time: 7-25 days
The Specification and Parameters:
| Material | High-quality steel , Q235 | |
| Surface treatment: | Powder coating: Normal color(Orange or blue) or customized | |
| Size | Height | 2-16m (6.56-52.5ft), or customized |
| Width | 1.5-3.3m (4.92-10.82ft), or customized | |
| Length | 0.8-1.2m (2.63-3.94ft), or customized | |
| Thickness | Upright: 1.5-3.5mm; Beam: 1.5-4.0mm | |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
| Load capacity | 1-4Tons/Layer | |
Quotation requirements, kindly inform us the info as below
- Drawing of racking or warehouse (if available)
- Size of your warehouse (Length x Width x Clear height)
- Size (W*D*H) & weight of pallet (after loading)
- How many layers do you need?
Package and Performance Pictures Showing:
Please feel free to contact us for more information:
| Company Name: | NANJING JIACHENG STORAGE EQUIPMENT MANUFACTURING CO.,LTD |
| Website: | www.jiachengrack.com |
| Contact Person: | Bryan Wu (Export Director) |
| Contact Way: | MP: +86-13951807639 |
NANJING JIACHENG STORAGE EQUIPMENT MANUFACTURING Co., Ltd found in the year 2003, is the professional manufacturer in China and is engaged in the design and manufacturing storage and logistics products and equipments. The factory covers 20 acres, and the workshop is 6000 square meters. There are over 100 employees including professional design team, so that we can provide the service of professional design, production process, advanced technology and racking manufacturing and finishing. We can design and produce all types of storage racking (light duty rack, medium duty rack, heavy duty rack, mezzanine, cantilever rack, and drive-in rack), wire container, mesh box, roll container, steel cage, wire decking, wire fence, steel pallet and etc. Meanwhile, we have the team for assembling and after sales service, so that ensure the company with the full system of design, plan, production management, inspection, and after sales service.
We continuously make the new product developments, and increases the production management system level as per the ISO9001 International Quality System standard, and has qualified the CE and EPAL certificate. We are always trying our best to provide the high quality and perfect products and service. Our products have been used in many fields of medicine, food, chemical industry, construction material, electronics, car, machinery, coal power, post and railway etc. We focus not only the China domestic market, but also the oversea markets. Now the products have been exported to USA, Japan, Russia, Canada, Australia, India, Brasil, EURO UNION, Middle East COUNTRIES and etc.
We continuously make the new product developments, and increases the production management system level as per the ISO9001 International Quality System standard, and has qualified the CE and EPAL certificate. We are always trying our best to provide the high quality and perfect products and service. Our products have been used in many fields of medicine, food, chemical industry, construction material, electronics, car, machinery, coal power, post and railway etc. We focus not only the China domestic market, but also the oversea markets. Now the products have been exported to USA, Japan, Russia, Canada, Australia, India, Brasil, EURO UNION, Middle East COUNTRIES and etc.
