Mould/Mold for Car Interior Trim Center Console Double Cup Holder

Mould/Mold for Car Interior Trim Center Console Double Cup Holder
Price: US $ 5000-160000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Dimension Tolerance: +/-0.01mm
Mould Life: >300, 000 Shots
Product Features: Attractive, Practical and Comfortable
Quality Control: Inspected and Reconfirmed Before Shipment
Mould Price: Cost-Effective and Competitive
Mould Material: Customized
Product Type: Injection Mould
OEM Service: Available
Mould Standard: Hasco, Dme, Meusburger, Futaba, Lkm, etc
Warranty: 12 Months for Free
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Home Use
Installation: Fixed
Plastic Material: Rubber
Certification: ISO9001 & Iatf16949

Product Description

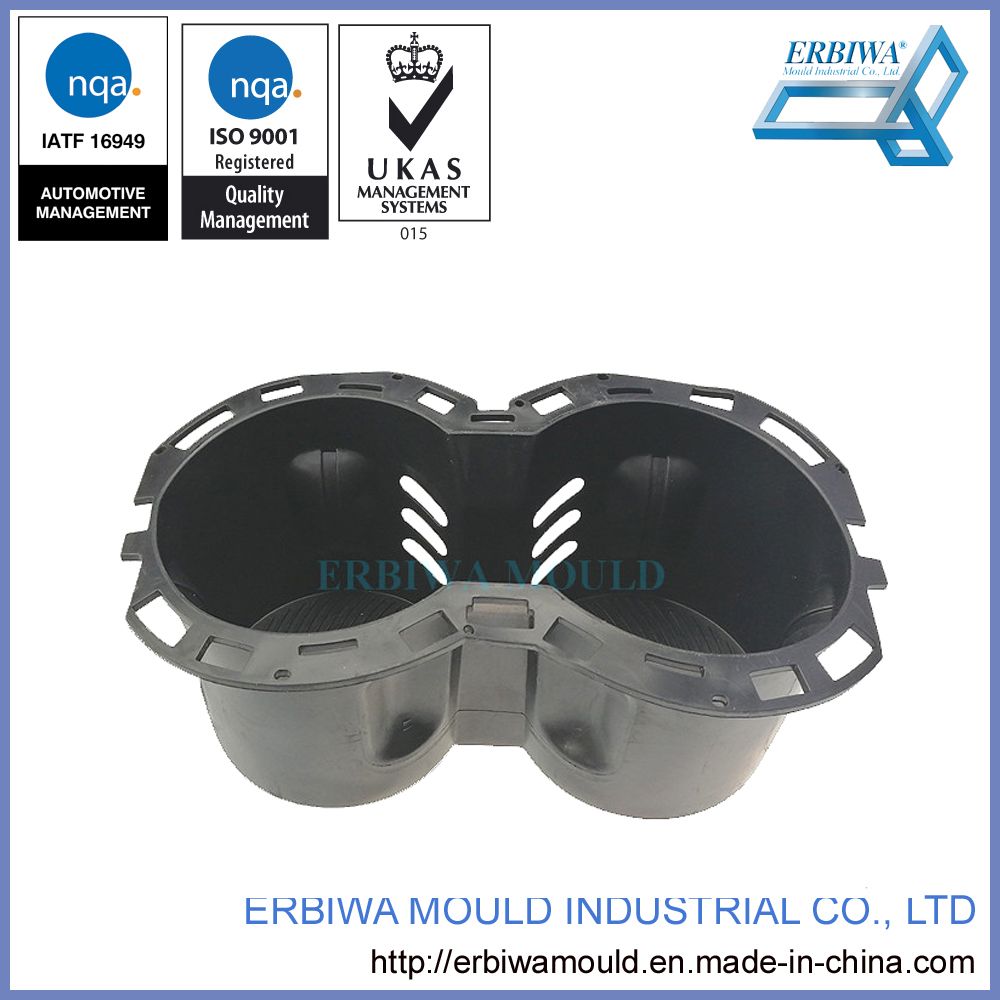

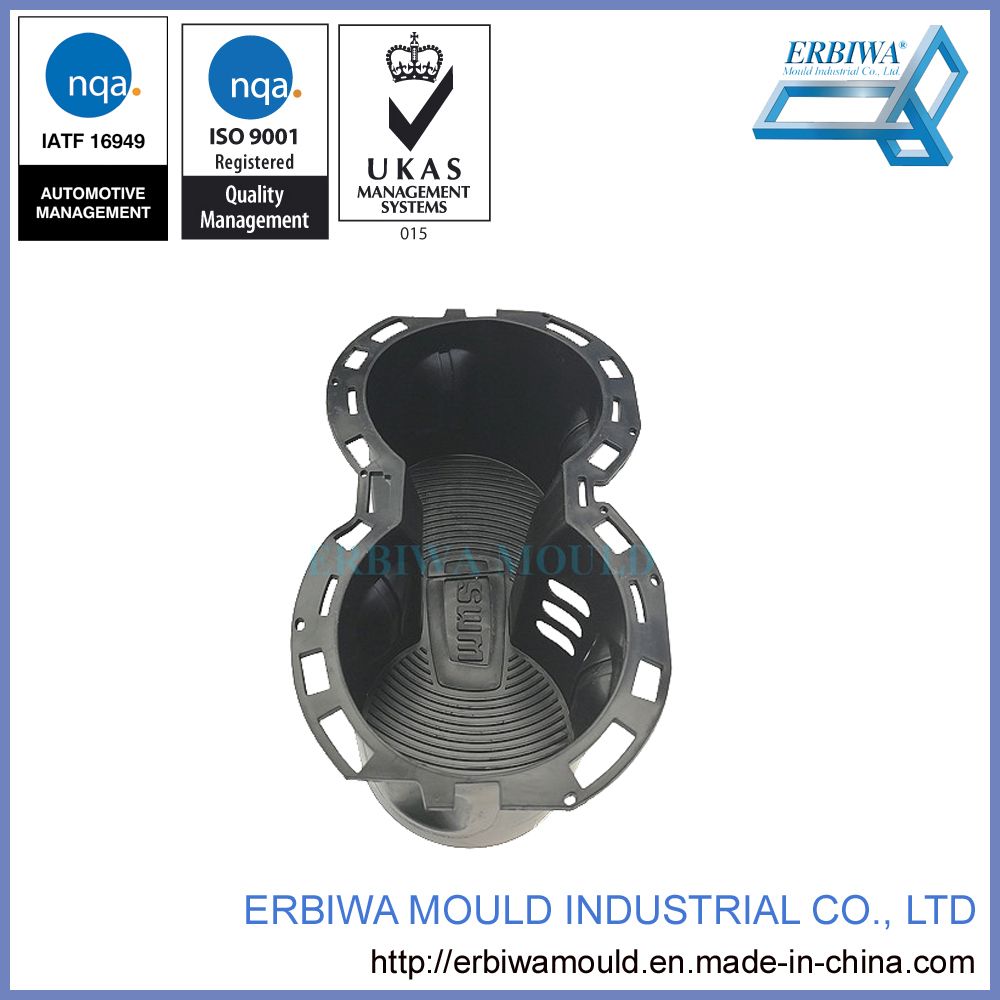

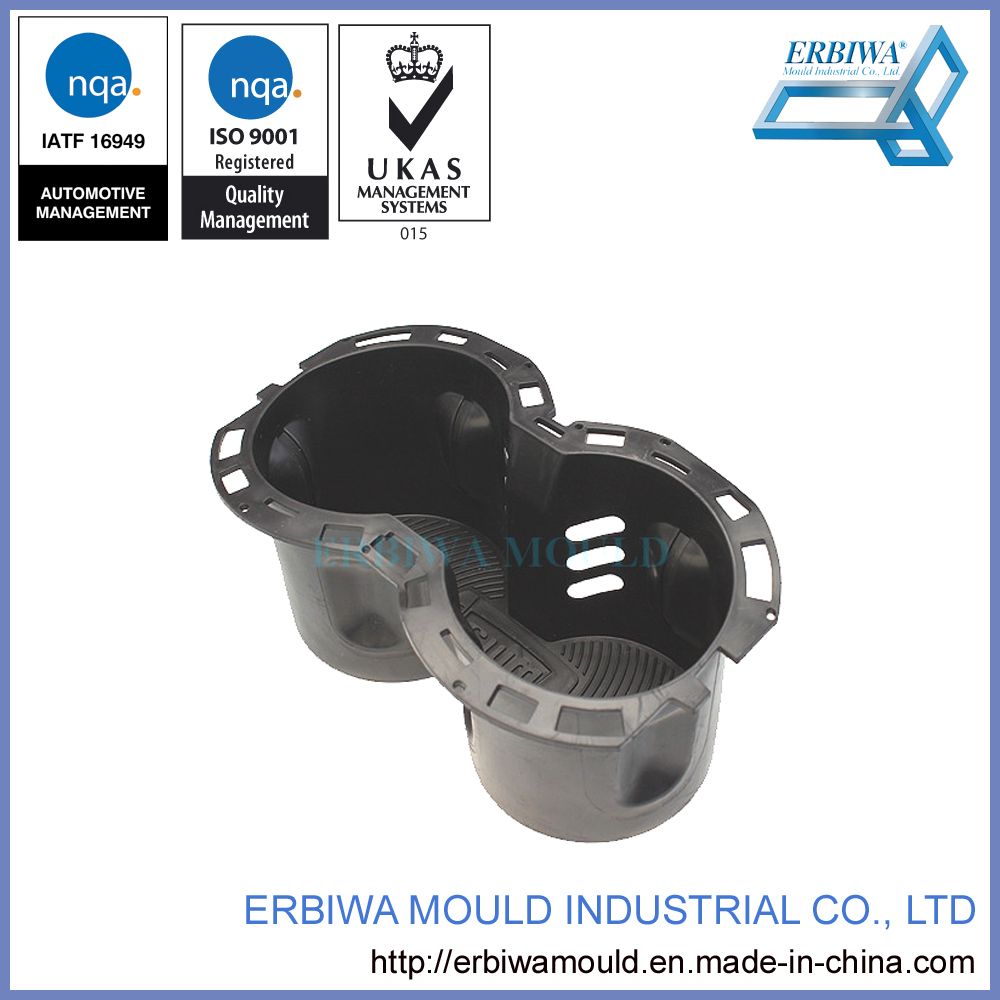

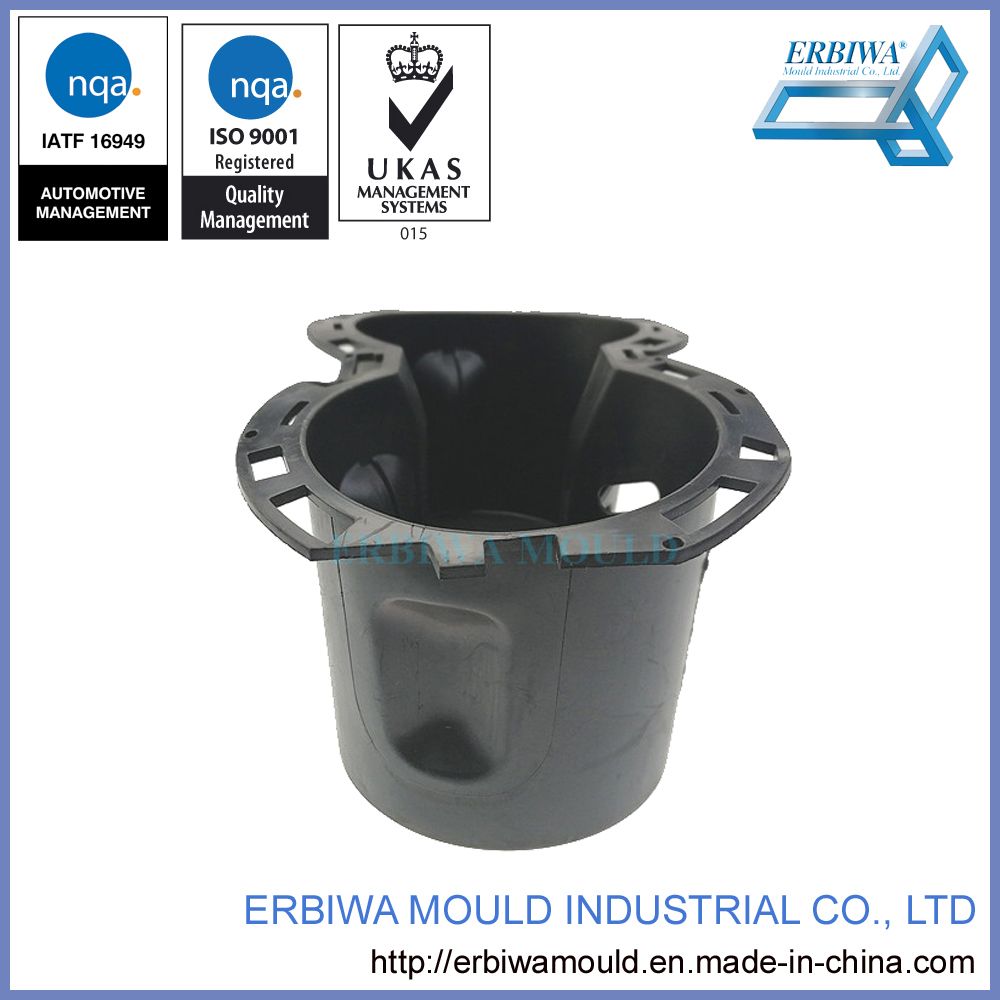

Injection Mould/Mold For Car Interior Trim Center Console Double Cup Holder Pad Mat


Part One: Item Description

CompanyERBIWA MOULD INDUSTRIAL Co., Ltd
Business TypeManufacturing
Products NameChinese high quality customized plastic injection molding for Car Plastic Secondary Instrument Panel/Dashboard
Place of OriginDongguan, China
Export CountryGermany, Japan, North America, Australian, Canada, France, Italy, etc
Quality SystemISO9001: 2015; IATF16949: 2016
Mould Life300K-1000K Shots
Mould base StandardHASCO, DME, LKM, Meusburger, FUTABA, etc
Core & Cavity Material718H, P20, NAK80, S316H, SKD61, 1.2311, 1.2343, 1.2343ESV, etc
Products MaterialPP, PA6, PLA, ABS, PE, PC, POM, PVC, PET, PS, TPE/TPR, etc
Design SoftwareUG, PROE, Auto CAD, Solidworks, Catia V5, Visi, etc
Runner TypeHot runner or cold runner
Gate TypeSide gate, Sub gate, Pin point Gate...
Surface TreatmentPolish, High gloss Polish, Texture, Silk-screen printing, Brushed, Mirror,
Anodizing, Electroplating, etc
EquipmentCNC, EDM, Milling, Grinding, Wire Cut, Inspection, Plastic injection machine
PackageWooden box for mould, carton for plastic products
Lead Time30-40 days for T1
OEM/ODM ServiceAvailable

Part Two: Mould Making Process

1QuotationNeed 2D/3D drawing or Samples
2Mould DesignMould design drawing could be sent for confirmation in one week after receiving the down payment
3Mould MakingStart mould manufacturing only after the mould design is confirmed by customers
4Mould Trial1st shot samples will be available for checking
5Sample ConfirmationCustomer to check and confirm samples
62nd PaymentCustomer need to pay for the 2nd payment once received the T1 shot samples
7Mould ModificationModify the mould if necessary
8Mould DeliveryTo deliver the mould after received the 3rd payment
9After-Sales ServiceFree of charge for 12 months warranty
10 BalanceCustomer need to pay for the balance after molds having been shipped out two months


Attention:



Pease offer the following information when you send us the mould inquiry.

a) product drawing or the sample photo with sizes.

b) mould steel you want to use.

c) standard mould base or not.

d) runner system you want(cold or hot).



Part Three: Equipment List


Equipment typeQty
(Set)
ModelBrand
Origin

Precision(μ)Date of use (Year)(x*y*z)mm
Milling78SSTaizhengTaiwan0.01mm2014600*320*330
4SHCM-97AGentigerTaiwan0.01mm2016650*350*360
 Grinding10SGM450ShuguangTaiwan0.003mm2016400*150*250
8JL-614Joen LihTaiwan0.003mm2012400*150*250
Drilling

3Z305*16/1ZOJEChina1mm2016z=850
3M3-M16XianweiChina1mm2016z=500
EDM5cnc-edm-he130HSPKChina0.01mm20161300*600*400
8cnc-edm-he100HSPKChina0.01mm20161000*500*400
6Sodick AM30LSodickJapan0.005mm2014300*200*200
3TOPEDM MP50TOPEDMTaiwan0.005mm2012400*280*250
4ARD M30ARDTaiwan0.005mm2012250*200*200

Wire Cut

2AQ360LSSodickJapan0.005mm2010360*250*220
3AQ550LSSodickJapan0.005mm2010550*350*320
2Charmilles 240CharmillesSwitzerland0.003mm2010250*200*220
1CHMERCHMERTaiwan0.005mm20101300*600*400
1K7K7China0.01mm20101000*500*400
CNC5α-d14miaFANUCJapan0.005mm2016500*400*330
3MXV1020YCMTaiwan0.005mm20161020*520*540
3FV85AYCMTaiwan0.005mm2016850*620*630
1FV125AYCMTaiwan0.005mm20161270*520*540
1TV146BYCMTaiwan0.005mm20141400*620*630
2Hartford-2150HHartfordTaiwan0.01mm20142000*1500*780
1Hartford-1000HartfordTaiwan0.01mm20141000*600*630
2TAKUMI H16TAKUMIUSA0.01mm20171600*1300*700
1MB-56VAOKUMA Japan0.005mm20141000*560*550
15 Axis AV-2516X/2516HXQuick JetTaiwan0.004mm20172500*1600*800
13 Axis AV-1612Quick JetTaiwan0.002mm20171600*1200*700
Inspection

2INSPECTORHexagonSweden0.002mm20162000*1000*700
6MICROSCOPEMicatTaiwan0.002mm2016400*300*150
1Mitutoyo C7106MitutoyoJapan0.003mm20141500*800*500
2MF-A1720MitutoyoJapan0.003mm2014400*300*150
1Micro-Hite M600TESASwitzerland0.005mm20140~600mm
1GTR-4 LSOSAKAJapan0.005mm2014Gear Tester
1MFC1001NIKONJapan0.003mm2015Z=100
Injection Mold Machine4Haitian 100 TonHaitianChina 2012100T
1Haitian 180 TonHaitianChina 2012180T
1Haitian 200 TonHaitianChina 2012200T
4Taichung 120 TonTaichungTaiwan 2014130T
1Taichung 200 TonTaichungTaiwan 2014200T
1ARBURG 420CARBURGGermany 2016110T

Part Four: Picture Show










RFQs will always be welcome, we sincerely hope to cooperate with clients from home and abroad.

Kindly contact me if any questions. It is our pleasure to be on service of you.

ERBIWA Mould Industrial Co., Ltd was established in 2016 in Changan Town, Dongguan City. It takes less than one hour from Shenzhen airport to our company. Therefore, our company has superior location and facilitated traffic and the logistics is very quick and convenient. The company covers an area of 3, 200 square meters and has around 50 employees. Our company is a wholly foreign-owned enterprise. We are manufacturing small, medium and big size plastic injection molding, covering auto interior and exterior parts, car lights, bumper, electronics and home appliances, etc.

The company is equipped with advanced tooling machines, experienced & technical workers and professional design team, which enables us to provide high quality molds for customers from all over the world. Offering the first-class quality and professional service for customers and creating better life for employee are Erbiwa Mould's eternal goals. We will spare no efforts to serve our present customers and expand the mould market, endeavoring to become one of the leader in the field of mould manufacturing at home and abroad with the advantage of German technology and Chinese manufacturing.

We have built scientific production management procedure, that is our ERP system. And we mainly service for the European and American famous brand cars such as Mercedes-Benz, BMW, Audi, Volvo, Tesla, etc. Moreover, we are quite familiar with DME, HASCO, MISUMI and LKM standards. In addition, we have owned ISO 9001 and ISO 14001 certification to guarantee the quality. We really hope to be your best mold supplier and cooperative partner!

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
