Nanjing Foctory Near Shanghai Warehouse Heavy Duty Shelving Pallet Rack

Prod Model:	EBIL-TPHJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Request
Certificate:	CE
Capacity:	500-2000kg
Layer:	2-6
Feature:	Corrosion Protection
Surface Treatment:	Spray Painting
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	5-15m
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Weight:	800-2000kg

Product Description

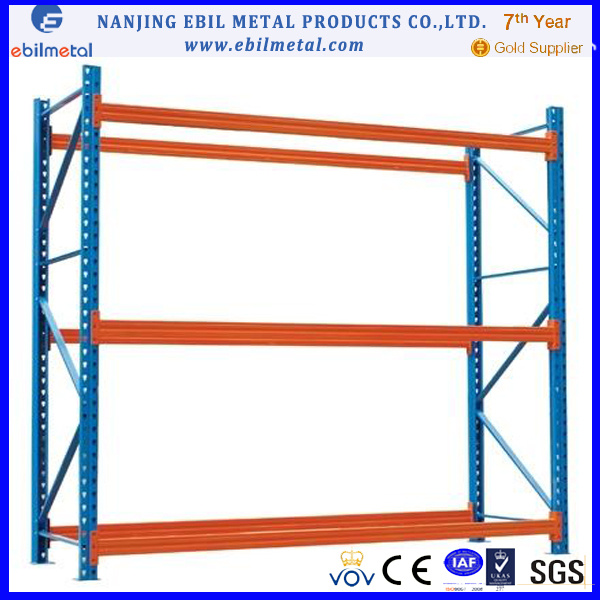

Steel Pallet racks/Selective Pallet Rack

Selective pallet rack is the most common pallet racking system in use today. Selective pallet racks typically come in one of two configurations: A roll formed, or clip-in configuration, and a structural bolt-together configuration. Roll formed selective rack is most commonly manufactured in a "teardrop" style. The nickname teardrop comes from the fact that the holes on the column of the upright are shaped like a teardrop. Pallets then rest on the horizontal load beams that are held in place by mounting clips. Because the clips on teardrop configurations can be quickly moved, the shelves can be easily adjusted to different heights to accommodate various load sizes. This is convenient for a warehouse that needs to store a wide variety of product sizes. Structural pallet rack systems are very similar to roll formed pallet rack systems except the horizontal load beams are attached to the uprights with bolts and have much greater weight-bearing capacity. Also, structural pallet racking can be designed into the structure of the building itself, so that the upright columns are simultaneously used to support the roof of the storage facility, in which case the structural pallet rack uprights replace the storage buildings vertical support I-beams. This system is a rack supported building. Very Narrow Aisle (VNA) is the use of selective pallet racking in a tighter configuration to provide maximum space utilization within a storage facility. These systems typically operate in conjunction with wire-guided or rail-guided reach-truck systems. A wire-guided system consists of a wire embedded in the concrete floor that provides tracking for the reach-truck.

1.Future of pallet rack	1) Beam levers are adjustable in 50.8mm,75mm pitch interval. 2) Different sizes, various specifications and colors are available according to your different needs. 3) Maximizes space utility ratio while retaining optimum product accessibility. 4) Strength and rigidity prevents compression damage to goods. 5) Bottom level of pallets can be stored on the floor, lowering structure costs
2.Material	High grade Q235B Cold Rolled Steel
3.Finish for pallet rack surface	High-quality Powder Coating Finishing.
4.Load Capacity	Loading capacity: 700-4000 kgs /beam level.  Height: 1500-10000mm  Depth: 900-1200mm ( decided by pallet size), back-to-back 1900-2700mm  Length: 2300/2400/2500/2700/3300/3900 ,2 or 3 pallets per level, according to pallet size,3-6 layer  Special sizes also available to specific storage needs.
5.Main Parts	1) Uprights 2) beams3) Horizontal & diagonal bracings,(4)upright footplates, (5)safety locking pins, (6)bolts & nuts,(7)anchors and all necessary components.
6.Certificates	CE certified, ISO9001, SGS
7.Quick delivery	Usually within 15 working work days, Certainly,it also according to quantity
