New Knock Down Heavy Duty Shelving Rack with Bolt-on Uprights

New Knock Down Heavy Duty Shelving Rack with Bolt-on Uprights
Price: Negotiable/Set
Min Order: 2/Set
Pay Type: L/C,T/T,Western Union
Prod Model: Shelving Rack020
Layer Deck: Steel Panel/Plywood/Wire Mesh
Max Load: 2000kg/Layer
MOQ: 2 Units
Frame Style: Bolt-on/Welded-on
Upright Anchor: Needless
Beam Fixed: Safey Bins 2PCS Per One Beam
Item: Heavy Duty She;Ving Rack
Material: Steel
Structure: Shelf
Mobility: Adjustable
Height: 0-5m
Weight: 150-500kg
Closed: Open
Development: New Type
Serviceability: Common Use

Product Description

New Knock Down Heavy Duty Shelving Rack

The superior advantage of Sunli Rack


1, Opetitive Strength(200KG~800KG)

2, Bolt-on and welded structure make your work as easy as a piece of cake

3, Can be extended on existing workload/racks

Technical Descriptions For Shelving rack
Style
Metal decking shelves/metal decking shelving

Selection
Single row, multiple rows

Dimension of rack1, popular sizes W2000*D600*H2000/W2000*D400*H2000
2, Depth: 200MM~2000MM
3,Width: 500MM~2700MM
4, Height: Less than 3000MM
Components
(medium duty
200KG~800KG)

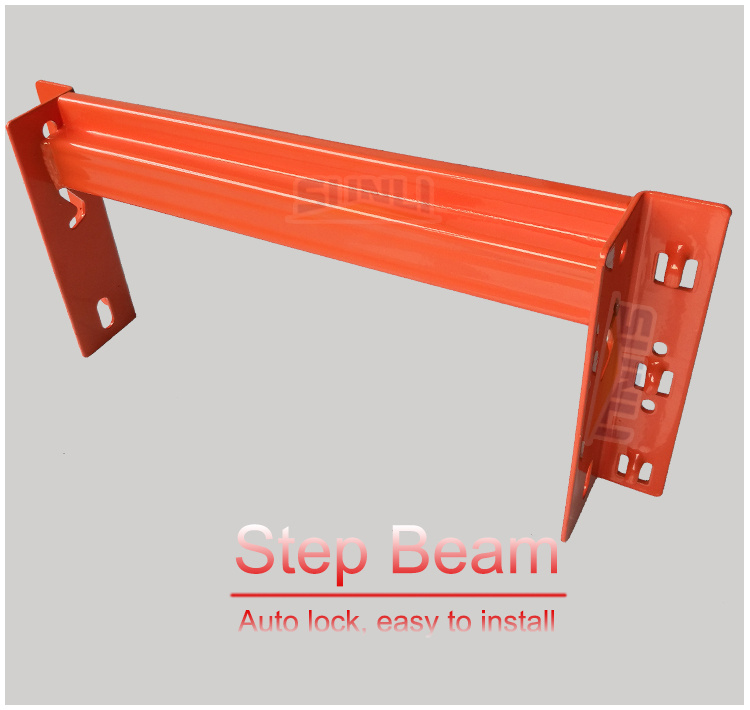

1, step beam: 60*35/80*35mm

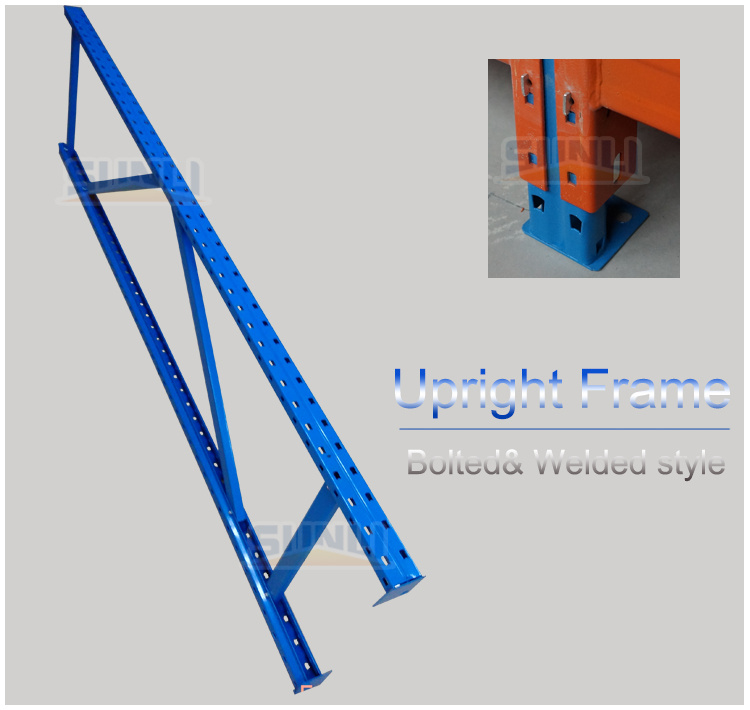

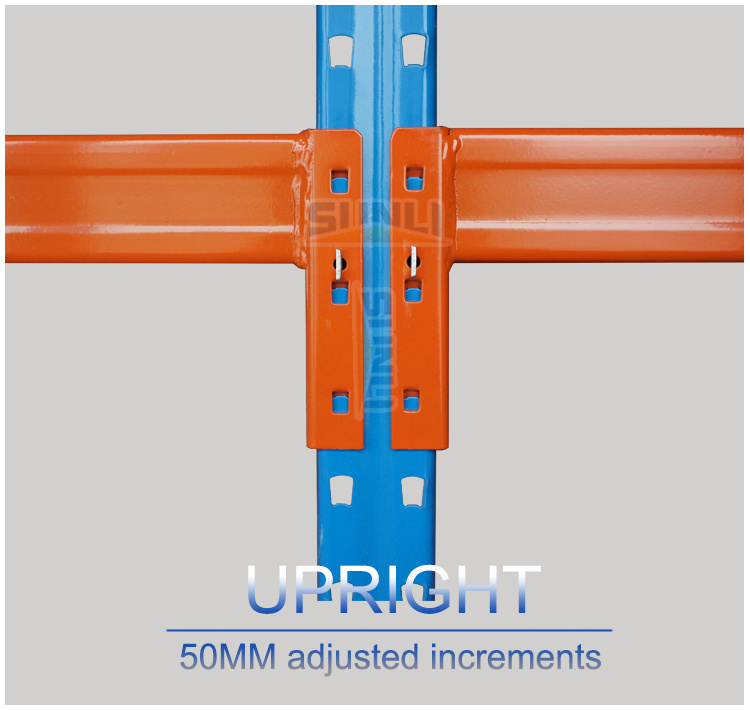

2, uprights: 55*45/60*45mm/80*60MM
3, Thickness: step beam: 1.2~1.5mm; upright:1.2mm~1.5mm
   Steel panel: 0.5~1.0mm
Components
(heavy duty
800KG~2000KG)
1,Beam: 80*45mm/90*45mm
2, uprights: 80*60mm
3, Thickness: Beam: 1.5~1.8mm; upright:1.5mm~1.8mm
   Steel panel: 1.0mm*2.0mm
ColourManufactured in RAL2004(step beam/steel panel)+RAL5015(upright)
( www.ralcolour.com)
Weight capacity200KG~2000KG per level
Package1, Less than one container: steel pallets/steel straps/plastic film
2,full container: plastic film/steel pallets for items
ServicesCAD drawings for rack layout; CAD drawings for installation

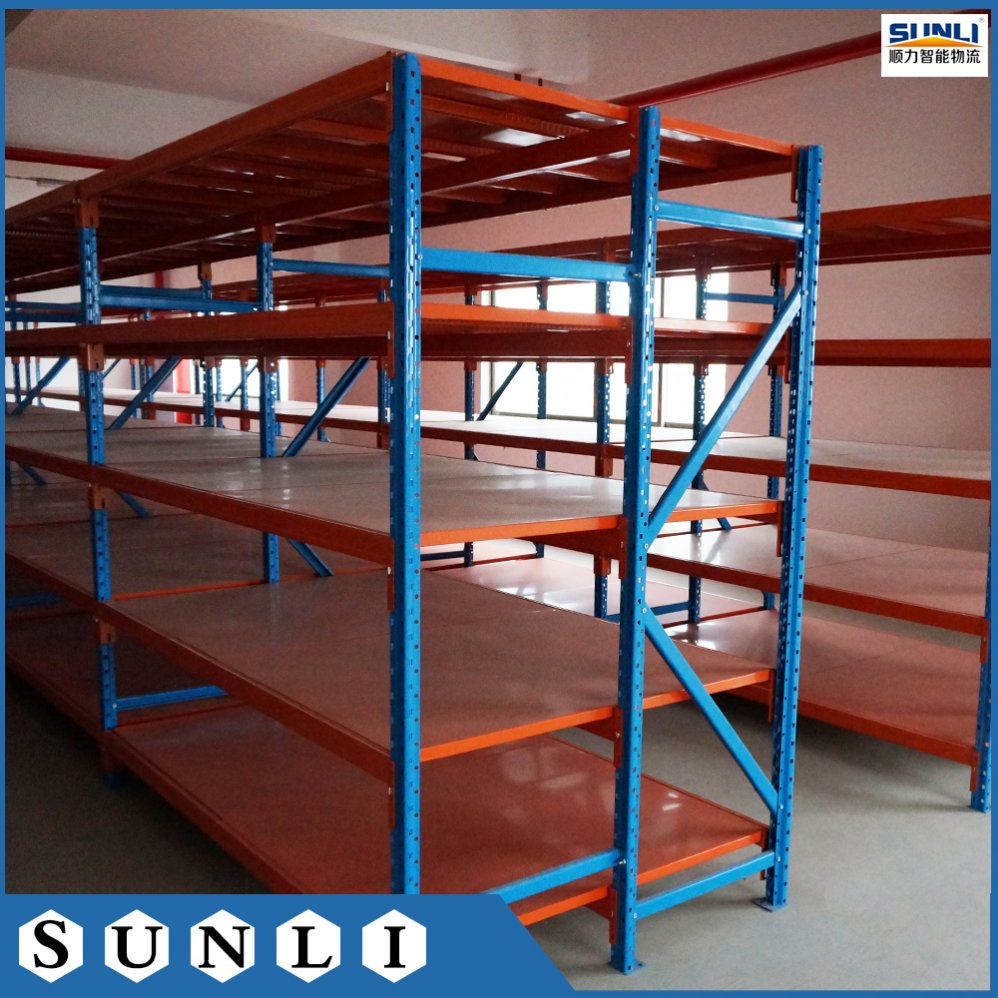

 Detailed Image for shelving rack





 Shelving rack that applied to different industry

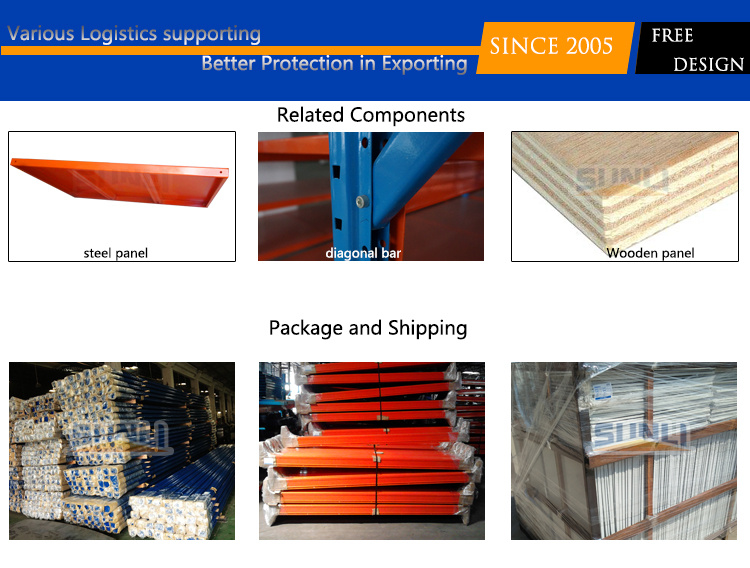

Related item within shelf rack and full protected package



Our Services available for storage solution
Business scope within Sunli Company
palletized  storage
Adjustable pallet Rack

Narrow aisle pallet rack

Radio shuttle pallet rack

Double deep pallet rack
Accessories
Long span shelving rack

Mezzanine Rack System
Long items
Cantilever  rack

Stacking Pallet


Please inform us following information to get prompt offer for shelving rack system
+  The dimensions of single rack unit ( or palletized load descriptions)
+  The palletized payload
+  Row of racks(  single row, back-to-back row or multiple rows)
+  How many palletized load within one unit
( Please refer to the Product Description on the top)


FAQ

1, What is MOQ limitation for heavy duty shelving rack ?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that  production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3,  What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
6, What about the installation ?
++ Pallet rack, shelving rack, cantilever rack, drive in rack are bolt-on structure, no skillful workers is involved
++ For complicated project such as mezzanine rack and radio shuttle rack we can send one engineer overseas to help.

The Rack Manufacturers&Designers, Guangdong Sunli Intelligent Logistics Equipment Co., Ltd are the national distributor of Industrial Steel Storage Racks and AS&RS system. We supply industrial rack solutions worldwide and in every major manufacturing and distribution sector. Sunli was formed in 2005.

Various products include Automatic storage system, pallet rack, carton flow, shelving, wire decking, safety&protection equipment, mobile carts, pallet, stackers and more.

As a turn-key solution, capabilitiesInclude warehousing design, consulting, in-house installation crews and new&unique solutions for closing, downsizing and new facilities. Stock items available.

What sets us apart from our competitors is the large inventory that we stock. We don't sell out of other dealer inventories. Instead, we carry rack stocks in Guangdong province - with hundreds/ thousands of beams, uprights and wire decksOn hand for immediate distribution.

Our team can design you a system for your project needs. We quote exactly what you need from our large in-stock inventory of teardrop,

New style, & many more beams and uprights. This allows us to meet your needs and ship your order when you need it.

Sunli motto "Value beyond expectations
