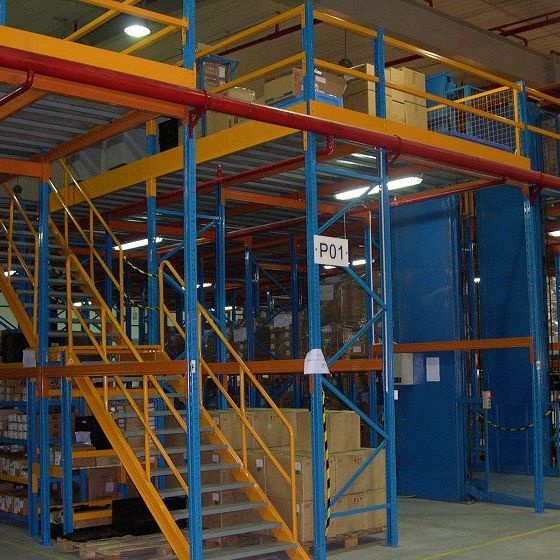

New Sale Warehouse Industrial Platform Medium Shelves Rack

Prod Model:	Platform
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fast Delivery:	10 Days
Feature:	Corrosion Protection
Certifications:	CE/SGS/As4084/ISO9001
Capacity:	1000-3000kg/Sq.Mt
Floor Height:	2-3mt
Width:	Your Warehouse Need
Length:	Your Warehouse Layout
Main Colour:	Blue+Orange/Accept Customized
Warranty:	5 Years Under Normal Use
Style:	Multifuntional Floor/Rack System
Material:	Steel and Reinforced Concrete
Structure:	Shelf
Serviceability:	Common Use
Mobility:	Adjustable
Closed:	Closed
Development:	New Type
Weight:	1000-2500kg/Layer
Type:	Platform
Height:	0-8m

Product Description

New Sale Warehouse Industrial Platform Medium Shelves Rack
What is the features of Sunli Mazzanine Floor/rack?
1, Match different floor plate: punching steel plate,venner,plywood etc.
2, Main parts: upright(double upright available), beam(main beam,side beam), floor,staircase,lifting table,dispatch gate, guard rail,safety lock,protector,crash barrier,
3, 1000kg-3000kg load capacity/sq.mt;
4,Can be equiped with shelf rack&pallet rack to inrease use of warehouse area;
5,Easy to adjustable and assemble
6, Powder coated treatment finish, full automatic processing
Process:CNC laser cutting –CNC Punching—CNC bending—Welding—polish—Surface treatment—package-ship
Package:wooden case,carton,pallet,or acccording to customer requirements
ODM/OEM:Yes
Delivery:vessel,air,express
1. Loading capacity: 2500kg/layer
2. Colors: Available in various colors
3. Feature:
A. Suit for large quantity of goods with less types,
B. The height of each beam is easy to adjust by pitch 75mm or freely, smart section design and high-quality steel
C. Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets. Convenient in assemblage, suitable for large loading capacity...

4. Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse drawing
B) The size of your warehouse
C) The size of shelving(length*width*height)
D) How many bays you want
E) How many layers you want
F) The loading capacity of each layer
G) The RAL color you want

Item	Spec.
Upright	80*60/88*68/90*60/100*68/120*68/120*95/140*95/120*120
Beam	80*45/90*45/100*45/110*45/120*45/130*45/140*45/120*50/110*50/80-150*50
Others	Dividers/plywood,veneer,steel plate
Upright frame parts:	2-uprigth,Horizontal bracing,Diagonal bracing,connector,screw,
Material	Q235 steel
Warranty	5 years

Products	Heavy  Duty Pallet   Racking	Medium/Light   Duty Racking
Loading Capacity	1000-5000KG/layer	100-1000KG/layer
Specification	Main Racking:             L2000*D1200*H4800mm*4layers             (Designed by different demands)  Beam: L1800~2500mm Layer  board: 1.5~2.5mm Customized sizes  and colours are welcomed	Main Racking:                 L1500*D1200*H3000mm*4layers               (Designed by different demands)  Beam: L1200~1800mm Layer  board: 1.0~1.5mm Layers: steel panel/net or wood veneer Customized sizes  and colours are welcomed
