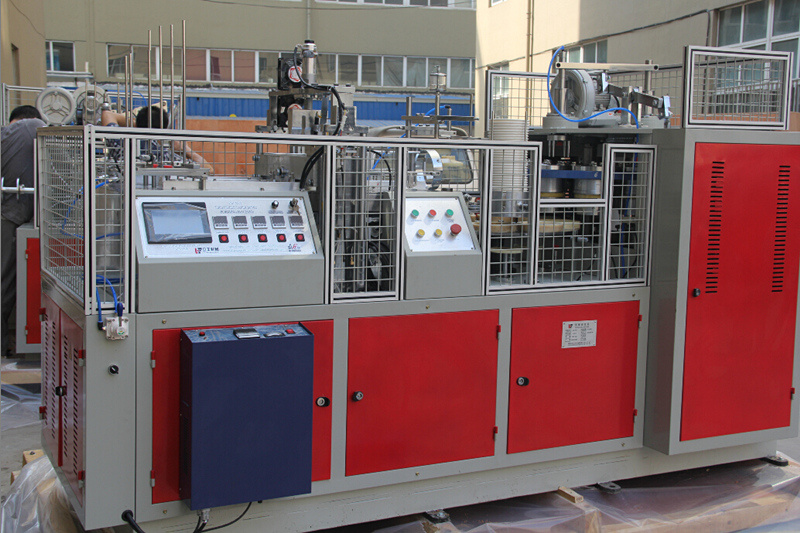

New System High Speed Paper Cup Machine

New System High Speed Paper Cup Machine
Price: US $ 13000-16000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: ZBJ-NZZ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
From 30ml-250ml: 1.5-16oz
Process: Paper Machine
Usage: Packing Paper Machine
Type: Paper Folding Machine
Automatic Grade: Automatic
Computerized: Yes
Speed: 60-80pcs/min
Required Paper: Double Side PE Coated Paper
Certification: ISO
Condition: New
Cup Size(',Ounce): 1.5-16oz

Product Description

1. The bottom paper is sent by stepper motor, which controls the interval of bottom papers about 0.1mm, so that the machine performs more stable and paper-saving. Meanwhile, the machine is equipped with the optical eye which will send the bottom paper only if there is paper cup body, so that it save a lot of raw material.

2. The inner structure adopted the vertical axis gear drive system, avoiding chain loosening and malposition problems.

3. Automatic lubrication system, which reduces the friction of machine parts and improves the machine maintenance


4. The machine is equipped with optically controlled non-contact switch(such as on the paper holder, cup body, bottom paper and cup discharging etc, customized if possible), checking and auto alarming, thus, the switch can protect the machine parts from crashing, increases the stability and maintenance of the machine.

5. Paper feeding working station is driven by cams without noise, performing stable and well, which is pioneer technology at home.

6. The machine adopts the gear motor in replacement of the separate reduction box and motor, makes the drive system simpler and more stable.

7. Automatic paper cup collecting in the sixth working position that increases the efficiency.
General power5.5kw
Paper request150-350g/m(single PE paper)
Voltage supply220v50hz/380v50hz or customized
Cup size1.5-9oz
Speed45-55pcs/min
Paper cup top diameterMin 35mm--Max 82mm
Paper cup bottom diameterMin 30mm--Max 52.8mm
Paper cup heightMin 30mm--Max 92mm
Weight1300kgs
Measurement2300*1150*1600mm


If you are interested in our paepr cup machine prodcution line,

pls do not hesitate to contact me!

contact person: Jason



Ruian LiFeng Machinery Co., Ltd. Established in 1998, have 16 years Production experience in producing series of automatic machinery Like high speed paper cup machine, soup bowl machine, paper cone machine, double layer coffee cup machine, die punching machine, paper plate machine.

We pursue "quality first, service first ", most of our machines use best International brand SCHNEIDER, OMRON, ROBATECH MITSUBSHI Siemens, Lifeng also provide our staff with regular training to improve their skills, so as to ensure the consistent quality of our machines. All of our products have past CE, SGS, BV and each machine we supply 1 year warranty. We supply free training for customers too.

.

Our high quality and competitive price have made Lifeng machines popular in all Asia, Eastern Europe The Middle East, north Africa, north and south America. With large production capacity, we can deliver products to customers quickly, we also offer OEM service upon request

Sincerely look forward to your presence and cooperation
