Newest Carbonated Drink Crown Caps Glass Bottle Filling Machine
| Price: | US $ 32000-35000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | CGFD-G |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Glass Bottle Filling Machine |
| Processing: | Washing, Filling, Capping |
| Application: | Glass Bottle |
| Suitable Bottle Size: | 0.3~2L |
| Control: | PLC&Touch Screen |
| Certificate: | Ce, ISO, SGS |
| Cap Style: | Crown Cap or Aluminium Cap |
| Material: | Material |
| Place Of Origin: | China |
| Warranty: | 1 Year |
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Multi-Room Feeding |
| Dosing Device: | Capacity Cup |
| Filling Principle: | Pressure |
| Packaging Container Lifting Structure: | Pneumatic Lifting |
| Structure: | Rotary |
| Packaging Type: | Bottle |
| Packaging Material: | Plastic |
Product Description

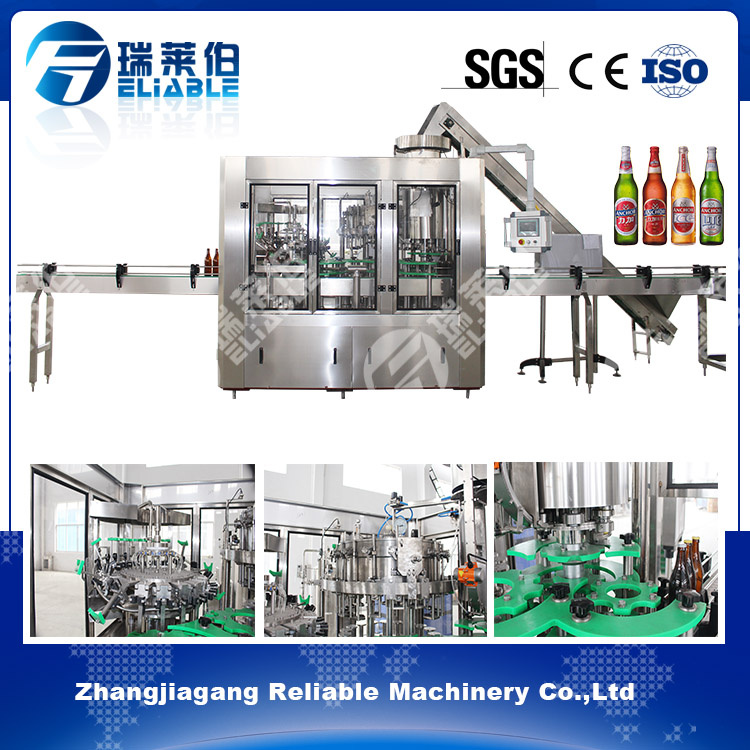

Newest Carbonated Drink Crown Caps Glass Bottle Filling Machine

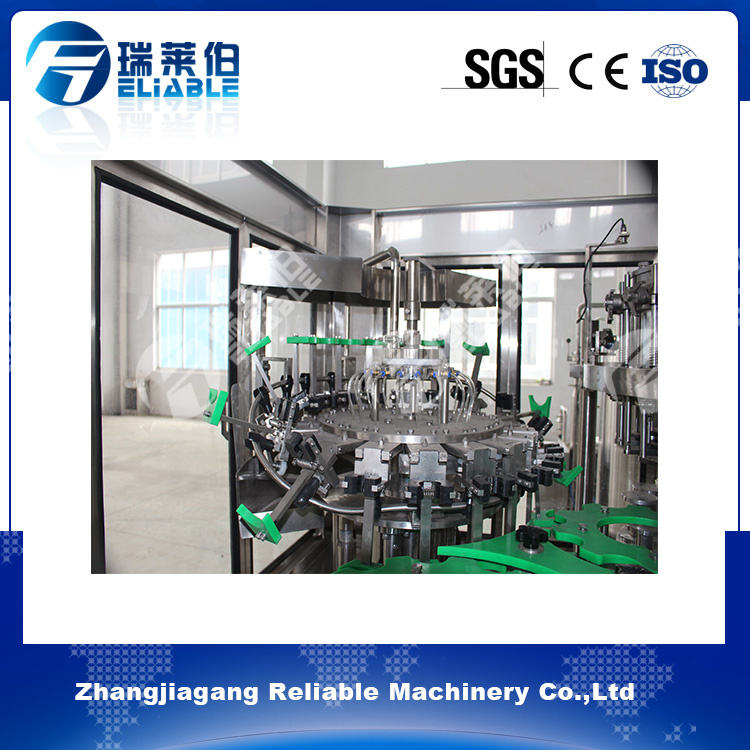

A)Rinsing part
1.This part is made up of lifting device, the main transmission device, the fixed frame, clamp device, distributor, and open clamp cams and over turn cams etc.
2.Lifting device is used to adjust the height of the rotary tables and clamps of machine to adapt to the bottle height. Its power comes from the lifting lever. Lever rotates drive screw rotation to realize the rotary tables lift.
3.When the clamp rotate to star wheel with rotating table, bottle into the middle of clamp, open clamp cam close the clip claw and clip the bottleneck with the rotating clamp. When rotary tables to rotate, clamp pieces will rotate with over turn cam, guide cams rotates around over turn cam and flip the bottleneck to 180 degree till the bottle mouth is top downwards and directly face the spray nozzle, then the clean water in the spray nozzle sprays and wash the inside of the bottle, Drain, turn 180 degree downwards and then goes out from the star wheel.

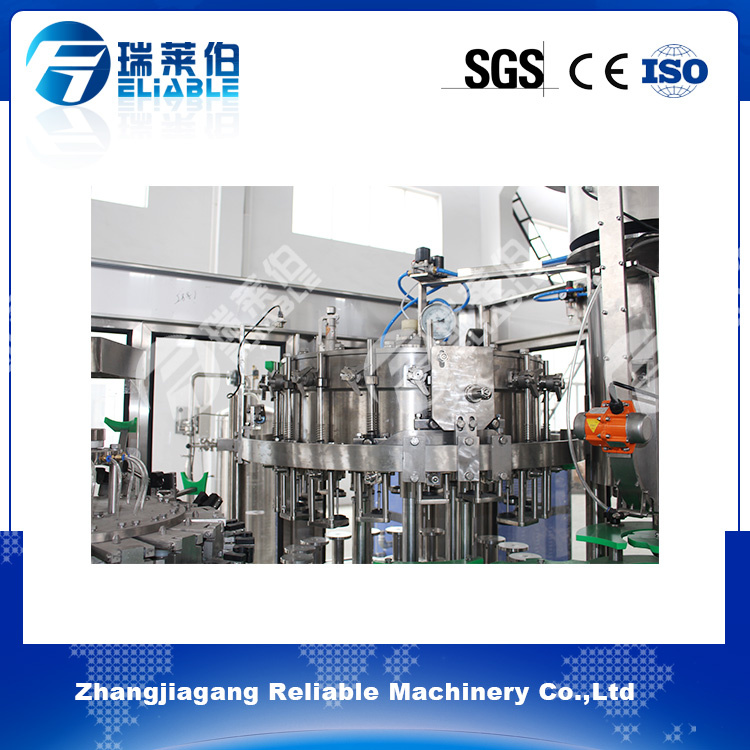

B)Filling part
1.Beer filling machine is specially designed according to the beer feature, and the filling part is designed to be twice pre-evacuation.
2.The filling part is made up of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop, beer tank, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height adjusting control, stimulating bubble arm, vacuum system, etc.

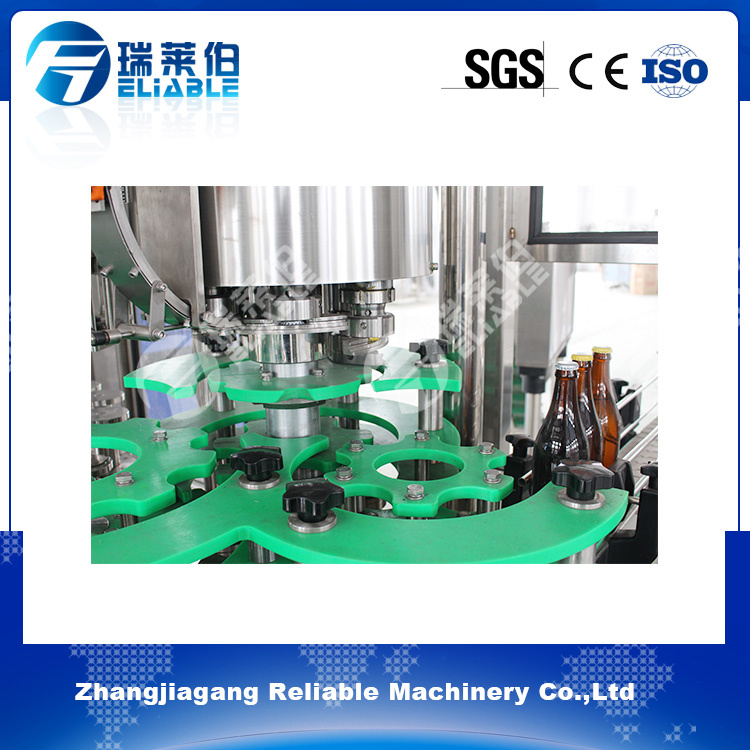

C)Capping part
1.The capping machine is made up of cap holder, capping slideway, capping upper part, capping lower part, elevating part and anti-circling column.
2.The up and down movement of the capping nozzle is driven by the capping cam, which is fixed. The crown caps are sending to the cap slideway by a mixer in the cap container, and then slid to the capping mould of the capping nozzle. The capping nozzle is driven by power and move in circle. The capping nozzle would move upword and downward one time in each circle of the capping. The cam, set up in the upper fixed part of the capping machine, controls the upward and downward movement of the capping nozzle.
3.After the bottle is transmitted from the filling machine, the capping nozzles have been fed with a bottle cap. The capping nozzles moves downwards the bottle under the capping platform driven by cam guideway, then the bottle cap with the aid of the damping ring.
Newest Carbonated Drink Crown Caps Glass Bottle Filling Machin
Technical Data :
| Model | CGFD-G16-12-6 | CGFD-G18-18-6 | CGFD-G24-24-8 | CGFD-G32-32-10 |
| The number of Washing, Filling, Capping | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 |
| Producing capacity; The number of bottle(600ml)/hour | 2000-3000 | 3000~4000 | 7000~8000 | 8000~9000 |
| Applicable bottle specifications (mm) | φ=50-108 H=150-320 330ml-1.5L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
Newest Carbonated Drink Crown Caps Glass Bottle Filling Machine

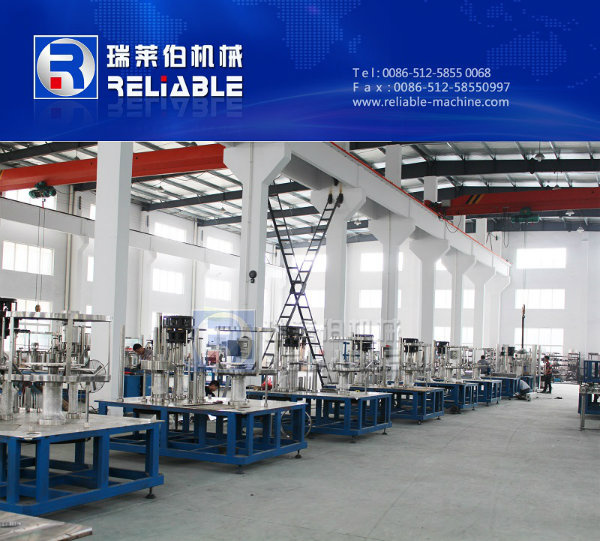

Our Workshop:
Our Customers:
Newest Carbonated Drink Crown Caps Glass Bottle Filling Machine
Our service:
How to get your suitable machine or production line ?
Find our products through Reliable Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, Alibaba.com etc
Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1.What kind of products will you produce ?
2. What is the capacity(per hour) you want ?
3. What kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details .
4. Sole machine or whole production line .
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.
Support & re-ordering.
ZHANGJIAGANG RELIABLE MACHINERY CO., LTD
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.
Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.
Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
