Home LED Light Products Newest Technique High Speed Paper Cup Making Machine Price

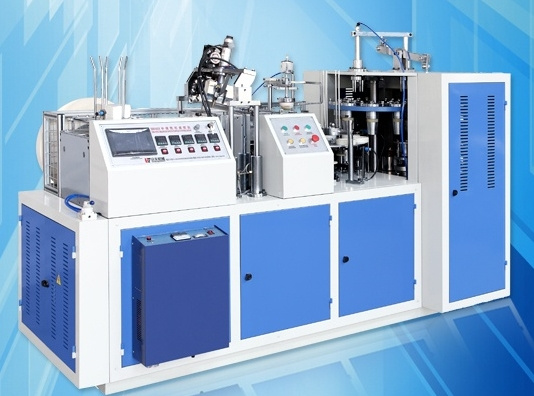

Newest Technique High Speed Paper Cup Making Machine Price
| Price: | US $ 13000-16000/Set |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | ZBJ-NZZ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| From 30ml-450ml: | 1.5-16oz |
| Process: | Paper Machine |
| Usage: | Packing Paper Machine |
| Type: | Paper Folding Machine |
| Automatic Grade: | Automatic |
| Computerized: | Yes |
| Speed: | 60-80pcs/min |
| Required Paper: | Double Side PE Coated Paper |
| Certification: | ISO |
| Condition: | New |
| Cup Size(',Ounce): | 1.5-16oz |
Product Description
The video of the ZBJ-NZZHTTP://V.Youku.COM/V_show/ID_XNjg0MDc2NDUy.HTML
1.The bottom paper is sent by stepper motor, which controls the interval of bottom papers about 0.1mm, so that the machine performs more stable and paper-saving.Meanwhile, the machine is equipped with the optical eye which will send the bottom paper only if there is paper cup body, so that it save a lot of raw material.
2.The inner structure adopted the vertical axis gear drive system, avoiding chain loosening and malposition problems.
3.Automatic lubrication system, which reduces the friction of machine parts and improves the machine maintenance
4.The machine is equipped with optically controlled non-contact switch(such as on the paper holder, cup body, bottom paper and cup discharging etc, customized if possible), checking and auto alarming, thus, the switch can protect the machine parts from crashing, increases the stability and maintenance of the machine.
5.Paper feeding working station is driven by cams without noise, performing stable and well, which is pioneer technology at home.
6.The machine adopts the gear motor in replacement of the separate reduction box and motor, makes the drive system simpler and more stable.
7.Automatic paper cup collecting in the sixth working position that increases the efficiency.
Company information:
We are the manufacturer not the trading company!
FRQ:
Q1:What is the difference between my machine and the other similiar products?
Four shafts we use is 30 mm diameter.
While other companies use 25 mm diameter.
All our machine use big 125# gear box, machines can work stably than normal type.
Q2:If the machine break down overseas, what is the effecient to solve the problem?
A2:Basially, the machine is easy to operate, the engineer can teach the client how to fix the machine by video or email.And the engineer are available to overseas.
Q3:The payment, MOQ, producing period and delivery time?
A3:T/T 30 % as the deposit, and the balance payment should be paid before delivery.
MOQ is 1 set.
The producing time is 25 days after deposit.
The delivery time is within 5 days after balance payment.
Q4:The payment, MOQ, producing period and delivery time?
A4:T/T 30 % as the deposit, and the balance payment should be paid before delivery.
MOQ is 1 set.
The producing time is 25 days after deposit.
The delivery time is within 5 days after balance payment.
Q5:How to get my company?
A5:The address:7# building , Yongding Road, Songjiadai Industril Zone, Feiyun Town , Ruian city.
If you want to visit my company, please send your ticket information to my skype or email.I will meet your in the Wenzhou Longwan Airport.
General power | 5.5kw |
| Paper request | 150-350g/m(single PE paper) |
| Voltage supply | 220v50hz/380v50hz or customized |
| Cup size | 1.5-9oz |
| Speed | 45-55pcs/min |
| Paper cup top diameter | Min 35mm--Max 82mm |
| Paper cup bottom diameter | Min 30mm--Max 52.8mm |
| Paper cup height | Min 30mm--Max 92mm |
| Weight | 1300kgs |
| Measurement | 2300*1150*1600mm |
If you are interested in our paepr cup machine prodcution line,
pls do not hesitate to contact me!
contact person: Jason
Mobile: +86 13967747190.
Ruian LiFeng Machinery Co., Ltd. Established in 1998, have 16 years Production experience in producing series of automatic machinery Like high speed paper cup machine, soup bowl machine, paper cone machine, double layer coffee cup machine, die punching machine, paper plate machine.
We pursue "quality first, service first ", most of our machines use best International brand SCHNEIDER, OMRON, ROBATECH MITSUBSHI Siemens, Lifeng also provide our staff with regular training to improve their skills, so as to ensure the consistent quality of our machines. All of our products have past CE, SGS, BV and each machine we supply 1 year warranty. We supply free training for customers too.
.
Our high quality and competitive price have made Lifeng machines popular in all Asia, Eastern Europe The Middle East, north Africa, north and south America. With large production capacity, we can deliver products to customers quickly, we also offer OEM service upon request
Sincerely look forward to your presence and cooperation
We pursue "quality first, service first ", most of our machines use best International brand SCHNEIDER, OMRON, ROBATECH MITSUBSHI Siemens, Lifeng also provide our staff with regular training to improve their skills, so as to ensure the consistent quality of our machines. All of our products have past CE, SGS, BV and each machine we supply 1 year warranty. We supply free training for customers too.
.
Our high quality and competitive price have made Lifeng machines popular in all Asia, Eastern Europe The Middle East, north Africa, north and south America. With large production capacity, we can deliver products to customers quickly, we also offer OEM service upon request
Sincerely look forward to your presence and cooperation
