Open Worktable Fiber Laser Marking Machine for Plastic Cup
| Price: | US $ 7800-8500/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | CKD-TMLA-30 |
|---|---|
| Name: | Open Worktable Fiber Laser Marking Machine |
| Function: | Marking, Engraving |
| Material: | All Kinds Metal, Plastic, Ink and Paint Face, Ep |
| Warranty: | 2 Years for The Fiber Laser Source |
| Marking Speed: | 0~7000mm/S |
| Minimum Line Width: | 0.015mm |
| Minimum Character: | 0.2mm |
| Life-Span Of Fiber Laser Module: | 100000h |
| Focus Spot Diameter: | 0~0.01mm |
Product Description

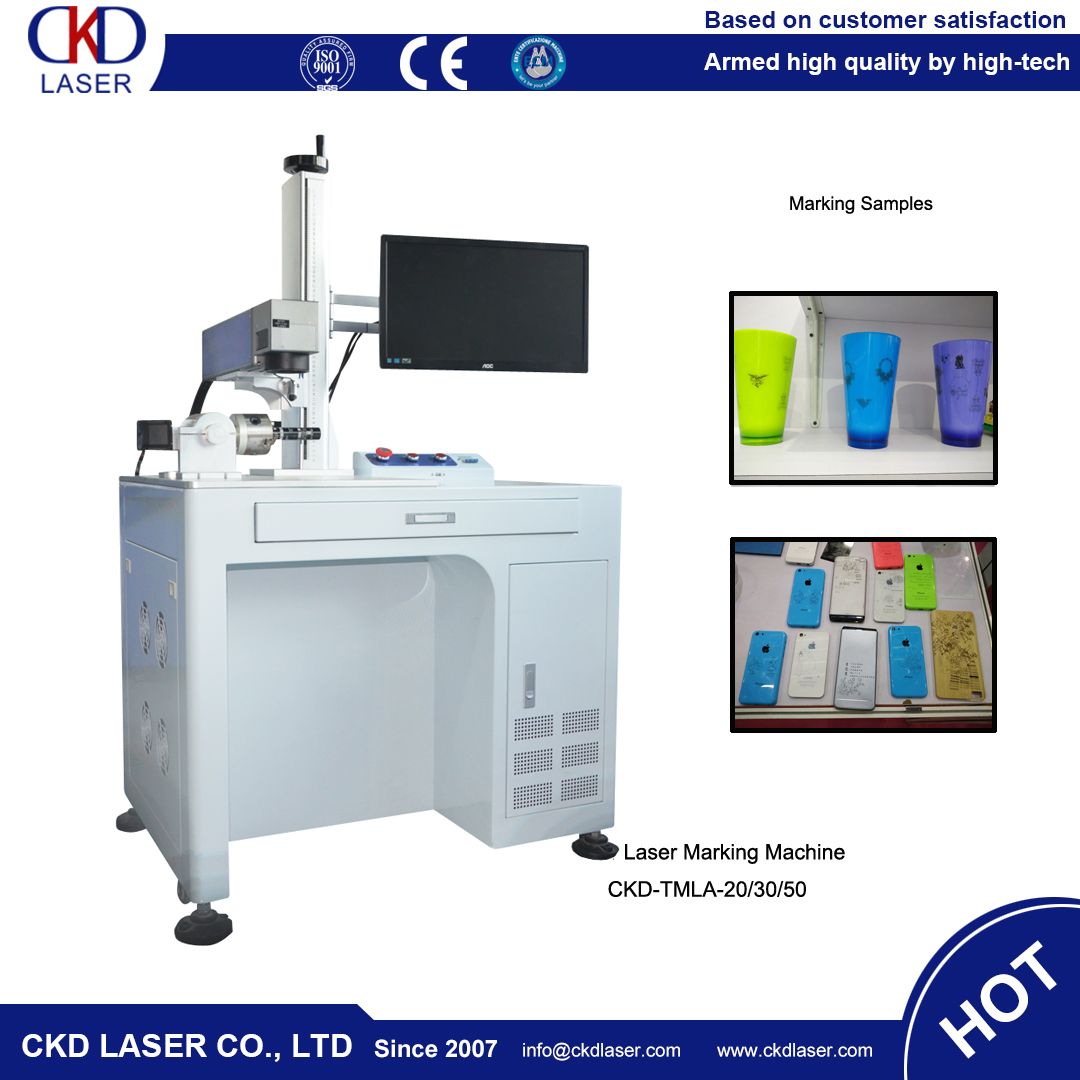

Open Worktable Fiber Laser Marking Machine for Plain Color Green Plastic CupCKD-TMLA Series
CKD-TMLA-30 is the most hot-sale Fiber Laser Marking Machine adopts superior quality fiber laser and high precision digital scan. It is developed with the most advanced designs such as the high speed scanning galvanometer, the open worktable, the flexible monitor holder and so on.
Applicable industries
Auto parts, digital products, communication goods, electron component, building materials, kitchenware, jewelry, craft, sanitary ware, medical apparatus, advertising making, photovoltaic product, commodity, hardware, and so on.
Marking material
Ink and paint face, ceramics, EP materials laser marking, plastic products, stainless steel, copper, aluminum, oxidation, phosphating, electroplating and other metals, etc.
Advantages
1. Table style, sit easy work.
2. High speed scanning system, 4m/s.
3. Easy operating, better compatibility, such as ".ai, .plt, .dxf, .dst, .svg, .nc, .g," etc.
4. Widely application, 2D marking, 3D rotary marking, mark bar code, two-dimension code, series number, batch number, date, automatic code number, skipping number marking and so on.
5. Perfect beam quality, 80% photoelectric conversion rate
6. Qualified for any terrible working environment, such as dust, vibration, humidity etc.
7. Maintenance free.
8. Stable performance
9. Long machine life time to 100,000 hours.
10. Permanent mark, without intermediate medium involved in processing, environmental protection
Detail
1. Galvanometer: High speed and high precision
2. Switches: Safe and convenient design
3.Drawer: Humanized and cost-effective design
4. Enternal Red Dot: More stable and safe in use
5. Monitor Holder: Foldable, more flexible and convenient during using
6. Rotary: Easy rotary connect inside
Parameters
| Parameters | Unit | Data | Data | Data |
| Type | CKD-TMLA-20 | CKD-TMLA-30 | CKD-TMLA-50 | |
| Laser Average Output Power | W | 20 | 30 | 50 |
| Laser Type | Fiber Laser | Fiber Laser | Fiber Laser | |
| Laser Wavelength | nm | 1064 | 1064 | 1064 |
| Optional Marking Area | mm | 100*100/150*150/200*200 | 100*100/150*150/200*200 | 100*100/150*150/200*200 |
| Marking Speed | mm/s | ≤7000 | ≤7000 | ≤7000 |
| Minimum Line Width | mm | 0.015 | 0.015 | 0.015 |
| Minimum Character | mm | 0.2 | 0.2 | 0.2 |
| Controller and Software | CKD Marking | CKD Marking | CKD Marking | |
| Life-span of Fiber Laser Module | h | 100,000 | 100,000 | 100,000 |
| Beam Quality | M2 | <1.5 | <1.7 | <1.7 |
| Focus Spot Diameter | mm | <0.01 | <0.01 | <0.01 |
| Max. Power of Single Pulse | mj | 0.5 | 1.0 | 1.2 |
| Computer Operation System | Windows 7/8/10 | Windows 7/8/10 | Windows 7/8/10 | |
| Cooling Mode | Air Cooling | Air Cooling | Air Cooling | |
| Temperature of Operation Environment | ºC | 15-35 | 15-35 | 15-35 |
| Voltage | 90-240V/50-60 Hz/2KVA | 90-240V/50-60 Hz/2KVA | 90-240V/50-60 Hz/2KVA |
Company Profile
We are a factory established in 2007, which specializes in the customized laser equipment for 9 years. We have a professional team and pursue high-tech, high quality, and high customer satisfaction products, to seek long-term cooperation and common development customers.
Our main customized products: Marking laser machine, including portable marking laser machine, table marking laser machine, rotary multi-station marking laser machine, sealing marking laser machine, UV marking laser machine, CO2 marking laser machine; welding laser machine; ITO laser machine; slicer laser machine; cutting laser machine and a lot of self-developed laser equipment devices.
Our laser equipment is widely used in industries of hardware tools, solar energy, auto accessories, electronics, electric appliance, medical, glasses, leather, optical accessories, advertising, commodity, communication, sheet metal industry, jewelry industry, kitchenware, jet coding and crafts gifts etc.
Company concept: All participants in and strive together to creative our future.
Company policy: Based on customers' satisfaction. Armed high quality by high-tech.
Welcome new customers' attention and thank old customers' support! We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
Packaging
We offer shipping in 3-7 days after payment for standard goods.
1. Sea Transportation
2. Land Transportation
3. Air Transportation
FAQ
Q: Are you a factory or a trade company?
A: We are a factory.
Q: Where is your factory located?How can I visit there?
A: Our factory is located in Shenzhen, Guangdong province, China.
All our clients from home or abroad are warmly welcome to visit us!
Q: Do you have any certificates?
A: All series of machines have passed CE and ISO verification.
Q: What is the trade term?
A: FOB/CNF/CFR/CIF/EXW are favorable.
Q: What is the payment term?
A: 100% T/T in advance.
Q: How can I get the documents after shipment?
A: All original documents will be sent to the client by E-mail.
Q: Do you arrange shipment for the machines?
A: We will arrange shipment for transactions based on FOB/CIF
terms. For EXW price, shipment should be made by clients or their agents.
Q: Warranty?
A: Depend on the series of machine.
Why choose us:
1.CKD LASER product is widely used in almost all the materials you can think of.
2.CKD LASER is the professional manufacturer of cnc laser machine for more than 9 years. There is no middle man and no agent, so the price is pretty competitive.
3. CKD LASER have an experienced and professional team for the technical support.
4. CKD LASER always stick to the principles: Customer first, Quality First, Service First!
5. CKD LASER company has international technical service office and provides 24hours online service and technical supports for customers.
For other questions, we will reply you ASAP after receiving your consult!
Address: CKD Laser Industry Park, Bai Huayuan Road, Guangming District, Shenzhen, China, 518107
Tel.: +86 0755-23196434
Mob.: +86 13510013267
Much deeply know our marking machine, please check the vedios below:
https://youtu.be/CfGIEYWtU2k
https://youtu.be/AT8FqQNeA8I
