Pallet Shuttle Racking with High Quality Pallet Runner (EBILMETAL-RSR)

Prod Model:	EBILMETAL-RSR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ODM:	Yes
OEM:	Yes
Adjustable:	Yes
Material:	Steel
Entry Type:	2-Way
Style:	Single Face

Product Description

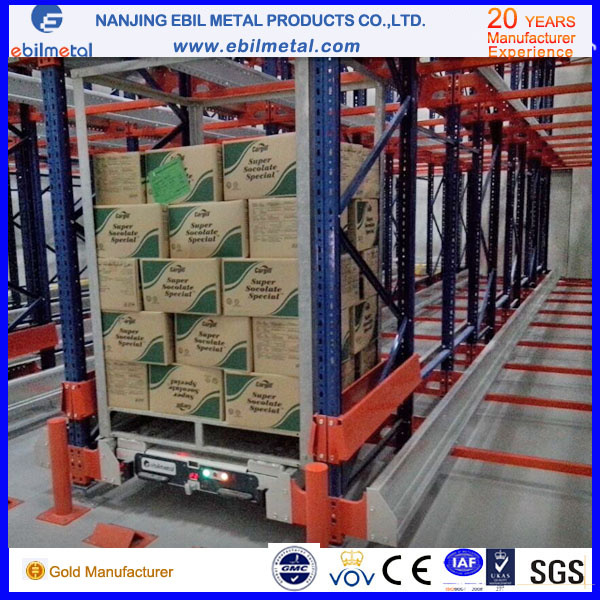

Pallet Mole Racking /Radio shuttle racking is constructed similar as drive in racking and push back racking with compactor moving automatically on the guide rails picking or loading pallets. Compared with drive in racking, radio shuttle system would be more stable and high efficient, and compared with push back racking, this system would be much safe without leaning degree. So radio shuttle racking system is name as safe, easy operation and high efficiency, and would be more suitable for cold storage warehouse.

Pallet Mole Racking Components:

Frame: Though push back racking is stable system for structure, we also use killed steel for upright to meet with requests of low temperature.

Compactor controlled by radio devices, compactor could automatically pick or load pallets according to the pre-arranged order, so that the driver could have enough time to pick or load more stored pallets to improve the work efficiency. The compactor could load 1000kgs, work in warehouse of -30~40, speed to 0.8m/s with four 12V 26Ah batteries. The compactor is made with high tensile steel for durable usage. The cover could be easily disassembled for maintenance of exchanging batteries.

Beams, Made with steel rolls by molds, beams are welded with connectors for easy assembly to upright and installed to improve the strength and stability of racking system. Support rails would be fixed to the beams by special brackets.

Support rails: Made with zinc-coated steel by rolling machines, rails are designed to support compactor and pallets, also provides flow routes for compactor. More important, zinc-coated rails would never pollute the compactor wheels with smooth flow and low noise.
